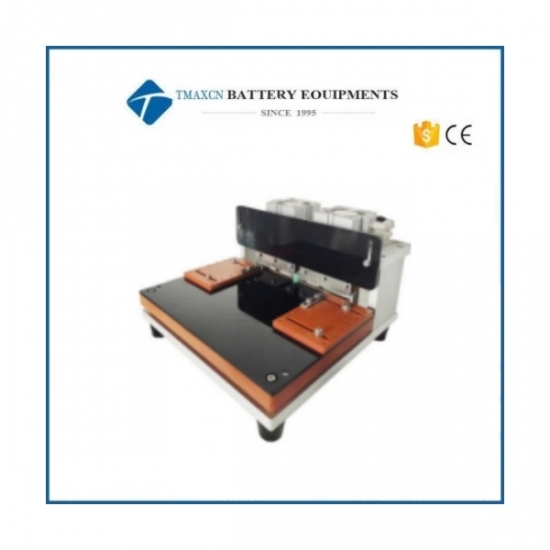

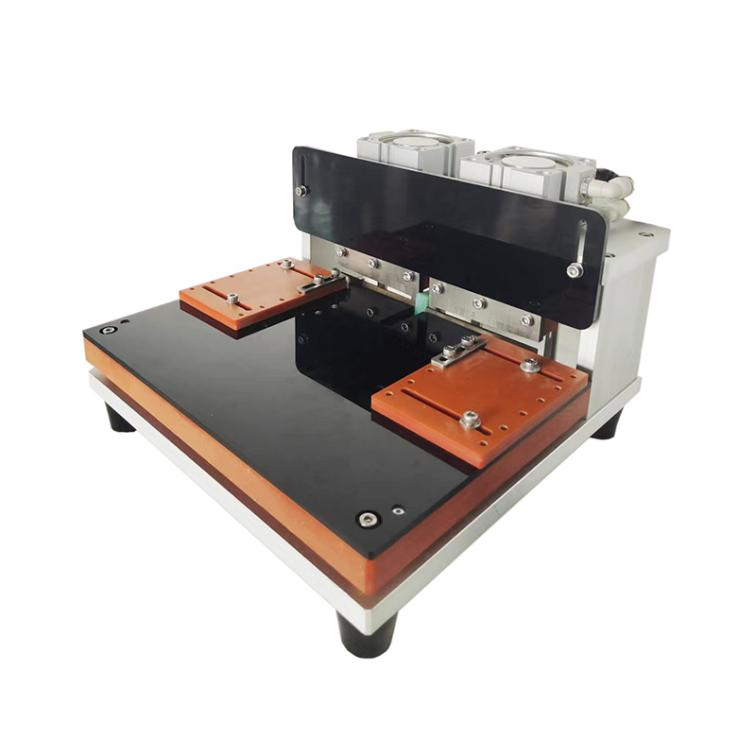

Laboratory Compact Pouch Cell Tab Cutting Cutter Machine For Battery Tab Shaping
Product overview
This equipment is to achieve the function of cutting the tab of large polymer, small equipment, simple operation, and stable cutting. Both positive and negative tabs are cut without short circuit.
Product characteristics
1, small and simple equipment, easy to operate, low failure rate.
2. The machine solves the problem of simultaneously cutting the positive and negative electrodes of the polymer built-in battery to avoid short circuit.
3, used for cutting the length of the positive and negative ear before the polymer built-in battery welding protection plate (including mobile phone battery, mobile power supply, power battery, etc.).
Technical parameters
|
Power supply |
220V50Hz 30W |
|
Air source |
0.4-0.8MPa |
|
Applicable battery type |
Polymer battery |
|
Max. tab width |
194mm |
|
Min. gap of tab |
10mm |
|
The tab retains the shortest length |
5mm |
|
Cell length |
30-200mm |
|
Cell width |
30-300mm |
|
Cell thickness |
2-12mm |
|
Weight |
10kg |
|
Dimension |
300*300*210mm |
|
Cutting tab’s thickness |
Al, Ni: max. 0.6mm nickel plated copper: 0.4mm |
