Lab Vertical Semi-circular Planetary Ball Mill Grinder for Crushing And Grinding Materials

Product Categories

Contact Us

  • Contact Person : Louis Yang
  • Email : Louis@lithmachine.com
  • Address : No. 5 Nanshan Road, Huli District, Xiamen City, Fujian Province, China
Lab Vertical Semi-circular Planetary Ball Mill Grinder for Crushing And Grinding Materials Lab Vertical Semi-circular Planetary Ball Mill Grinder for Crushing And Grinding Materials

Lab Vertical Semi-circular Planetary Ball Mill Grinder for Crushing And Grinding Materials

  • ItemNo :

    LITH-PBM
  • MOQ :

    1
  • Warranty:

    Two Year Limited Warranty With Lifetime Support
  • Delivery Time:

    5 days
  • Email :

    Louis@lithmachine.com
  • Product Details

Lab Vertical Semi-circular Planetary Ball Mill Grinder for Crushing And Grinding Materials


A. Product presentation

Planetary mill is an indispensable equipment for high-tech material mixing, fine grinding, sample preparation, nanomaterial dispersion, new product development and small batch production. The product is small in size, full in function and high in efficiency. It is the ideal equipment for scientific research institutions, universities, and enterprise laboratories to obtain particle research samples (each experiment can obtain four samples at the same time), grinding samples under vacuum.

Widely used in geology, minerals, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, beauty, environmental protection and other departments, such as: electronic ceramics, structural ceramics, magnetic materials, lithium cobaltate, lithium manganate, catalysts, phosphors, long persistence luminescent powder, rare earth polishing powder, electronic glass powder, fuel cells, ceramic capacitors, zinc oxide varistors, piezoelectric ceramics, nanomaterials, wafer ceramic capacitors, MLCC, Thermistor (PTC, NTC), ZnO varistors, arrester valves, Strontium titanate ring varistor, ceramic filter, dielectric ceramics, piezoelectric transducers, piezoelectric transformers, chip resistors, thick film circuits, coke potentiometers, alumina ceramics, zirconia ceramics, phosphors, zinc oxide powder, cobalt oxide powder, nickel zinc ferrite, manganese zinc ferrite and other industry products.

The planetary crusher is designed to crush, grind and disperse metal, non-metal, organic, and other powders. Especially suitable for laboratory research. Strong shear, impact and rolling can achieve the purpose of crushing, grinding, dispersing and emulsifying materials. The planetary ball mill is equipped with four ball mill tanks on the same turntable. When the turntable rotates, the ball mill rotates around the turntable axis, while rotating around its own axis, doing planetary motion. The grinding balls in the tank collide with each other in high-speed motion to grind and mix the sample. The product can be used for dry and wet grinding and mixing products of different particle sizes and materials. The Z-particle size of the grinding product can be as small as 0.1 micron. It can well meet the requirements of various process parameters. At the same time, due to its advantages of small batch, low power consumption and low price, it is the primary choice for schools, scientific research units and enterprises to carry out research on crushing technology, new materials and coatings.



B. Product feature

1.Modeling design: the equipment shell is made of high-precision mold stamping, generous and exquisite, high-end and stable, product color matching, giving the product new vitality, in line with ergonomics.

2.Exquisite workmanship: structural components using CNC machining technology, planetary disk casting molding, transmission gear selection of high temperature wear-resistant non-metal and metal precision gear.

3.Grinding can staring device casting molding, manual operation tightening anti-loose, easy to operate, safe and reliable.


C. Properties of products

Transmission mode

Gear drive

Working mode

Two or four ball mill tanks working simultaneously

Maximum sample loading

Two-thirds of the volume of the ball mill tank

Ball mill tank volume

Each can 0.05L-4L, total volume 0.2L-16L

Feed size

Soil material ≤10mm, other materials ≤3mm

Discharge size

The minimum is 0.1μm

Speed ratio (revolution: rotation)

See the main parameters of the planetary ball mill for details

Rotational speed

See the main parameters of the planetary ball mill for details

Speed regulation mode

Brand inverter stepless speed regulation


D. Technical parameters of vertical semi-circular planetary ball mill

Model number

PBM-0.2A

PBM-0.4A

PBM-1A

PBM-2A

PBM-4A

PBM-8A

PBM-10A

PBM-12A

PBM-16A

Specifications (L)

0.2

0.4

1

2

4

8

10

12

16

Configurable ball mill tank specifications

10-50ml

50-100ml

50-250ml

50-500ml

250-1000ml

1-2L

1-2.5L

1-3L

2-4L

Quantity (piece)

4

4

4

4

4

4

4

4

4

Matching ball mill tank

Available with 10ml vacuum ball mill tank

Available with 50ml vacuum ball mill tank

Available with 50ml

-100ml vacuum ball mill tank

Available with 50m

l-250ml vacuum ball mill tank

Available with 50ml

-1000ml vacuum ball mill tank

Available with 50ml

-2000ml vacuum ball mill tank

Available with 1-2L

vacuum ball mill tank

Available with 1-2L

vacuum ball mill tank

Available with 1-3L

vacuum ball mill tank

Standard ball mill can staring and locking device

Manual operation

Manual operation

Manual operation

Manual operation

Manual operation

Manual operation

Manual operation

Manual operation

Manual operation

Equipment Power Supply (single phase)

Single-

phase 220V to 50HZ

Single-phase 220V to 50HZ

Single-

phase 220V to 50HZ

Single-

phase 220V to 50HZ

Single-

phase 220V to 50HZ

Single-

phase 220V to 50HZ

Single-

phase 220V to 50HZ

Single-

phase 220V to 50HZ

Single-

phase 220V to 50HZ

Motor power (kw)

0.09

0.25

0.75

0.75

0.75

1.5

1.5

2.2

3

Total set time (min)

1-9999

1-9999

1-9999

1-9999

1-9999

1-9999

1-9999

1-9999

1-9999

Forward and backward running time (min)

1-999

1-999

1-999

1-999

1-999

1-999

1-999

1-999

1-999

Adjustable revolution (rpm)

60-580

47-465

35-370

35-370

35-370

35-320

35-320

35-320

35-255

Adjustable rotation speed (rpm)

120-1160

94-930

70-740

70-740

70-740

70-640

70-640

70-640

70-510

Standard panel (smart, touch screen optional)

Common

Common

Common

Common

Common

Common

Common

Common

Common

Lubrication mode

Lubricating grease

Lubricating grease

Lubricating grease

Lubricating grease

Lubricating grease

Lubricating grease

Lubricating grease

Lubricating grease

Lubricating grease

Speed regulation mode

Frequency control of motor speed

Frequency control of motor speed

Frequency control of motor speed

Frequency control of motor speed

Frequency control of motor speed

Frequency control of motor speed

Frequency control of motor speed

Frequency control of motor speed

Frequency control of motor speed

Equipment weight (kg)

18

26

74

74

80

132

138

140

200

Equipment size Length × width × height (mm)

430×250×270

520×300×420

720×470×600

720×470×600

720×470×600

870×560×680

870×560×680

870×560×680

940×600×710

Noise ≤db

50±5

55±5

60±5

60±5

60±5

60±5

60±5

60±5

65±5

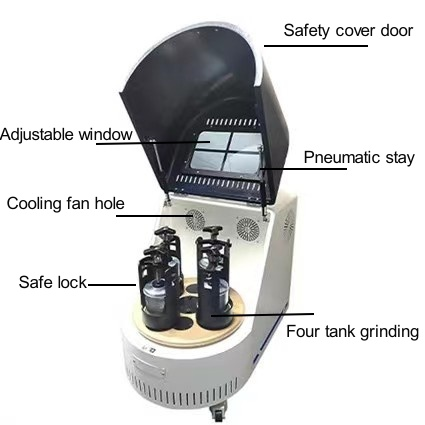

E. Product picture


















PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
