ItemNo :
LITH-RY200MOQ :
1Place of Origin:
ChinaColor :
optionalPort :
Xiamen PortCompliance:
CEWarranty:
2 yearsDelivery Time:
5 daysEmail :
Louis@lithmachine.comLab-Scale Hot Press Machine for Pouch Battery Cells Making
Application

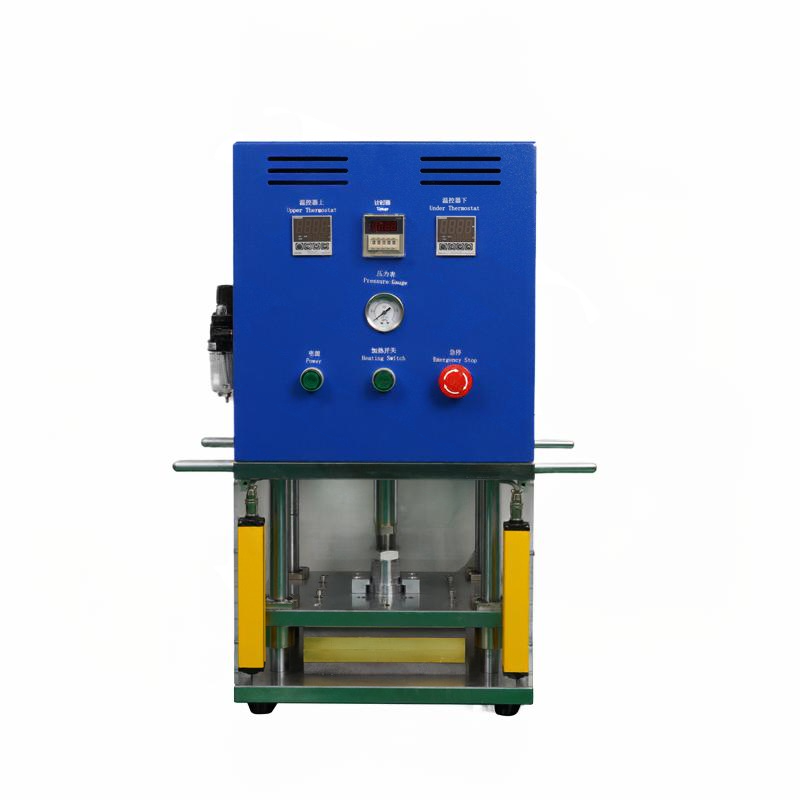

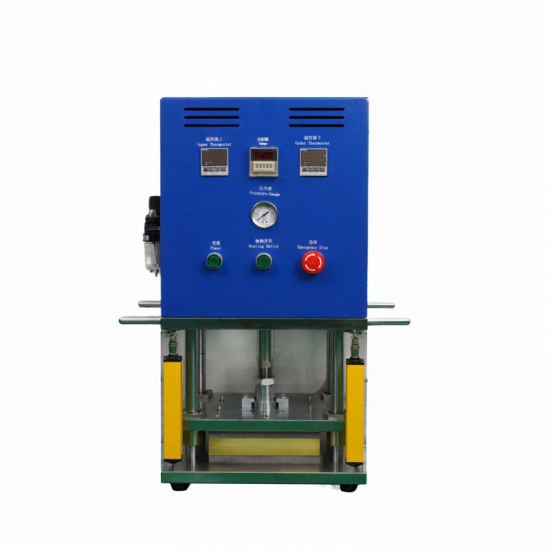

The LITH-RY200 Pouch Cell Hot Press Machine is designed for heat pressing and shaping of pouch cell cores after winding or stacking. It flattens and shapes the bare cell, making it easier to insert into aluminum-laminated cases, and improves the appearance and consistency of the pouch battery form.
· Constant temperature control with automatic heat pressing timer, ensuring consistent shaping.
· Continuously adjustable pressure, allowing flexible adaptation to different process needs.
· Copper heating elements, providing uniform heat distribution and energy efficiency.
· Compact and flexible, suitable for various lab and pilot-scale setups.
· Safe, stable, and reliable operation with user-friendly controls.
|
Parameter |
TMAX-RY200 (Standard) |
TMAX-RY300 (Large) |
|
Effective Pressing Area |
L200mm × W200mm |
L300mm × W300mm (customizable) |
|
Working Speed |
Approx. 300–500 cycles/hour |
Approx. 300–500 cycles/hour |
|
Pressing Force |
0–1T (adjustable) |
0–1T (adjustable) |
|
Power Supply |
AC220V / 50Hz |
AC220V / 50Hz |
|
Power Consumption |
1KW |
1KW |
|
Compressed Air Supply |
0.5–0.7MPa |
0.5–0.7MPa |
|
Machine Dimensions |
L320mm × W320mm × H430mm |
L420mm × W420mm × H430mm |
|
Machine Weight |
60kg |
80kg |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
