ItemNo :
Lith-4CMOQ :
1Compliance:
CE CertifiedWarranty:
1 yearDelivery Time:
5 daysEmail :
Louis@lithmachine.com
Key Features：
1. Anti-flying protection and alarm
2. Anti-glue protection and alarm
3. Real-time monitoring of adsorption force, alarm if adsorption force is insufficient, prohibit starting if adsorption force is insufficient, stop immediately if adsorption force is insufficient
4. The motor can rotate forward and reversely
5. Formula with power-offprotection function
6. Adjustable acceleration (acceleration:10-10000RPM/S, speed range: 50-10000RPM)
7. With communication interface: USB, external mouse and keyboard, transfer recipes through U disk.

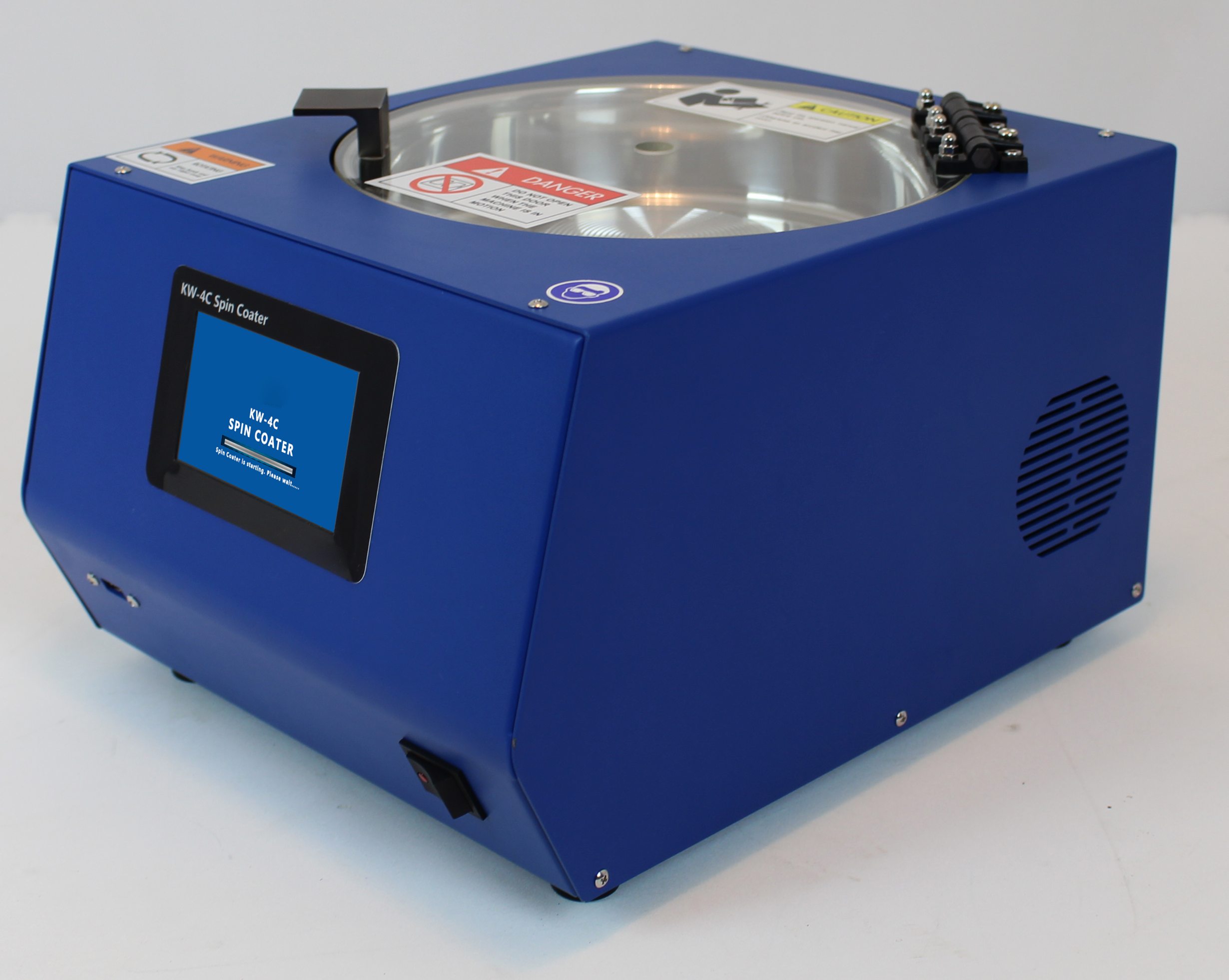

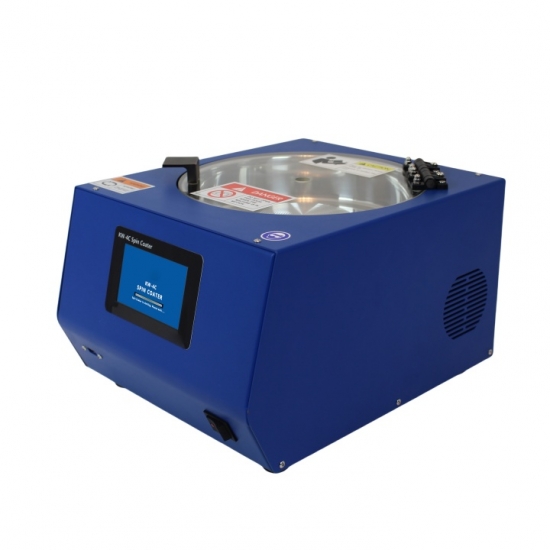

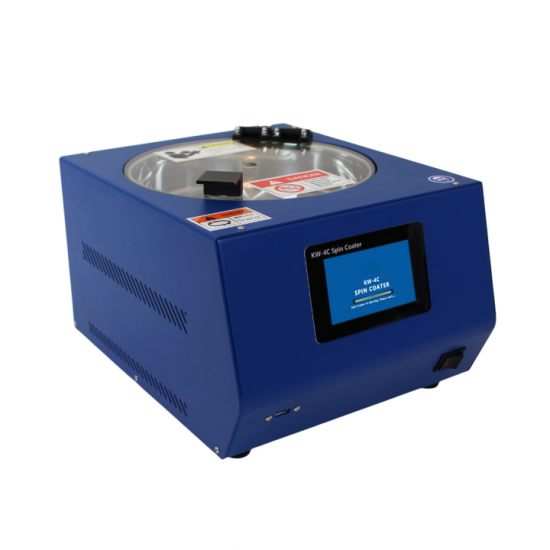

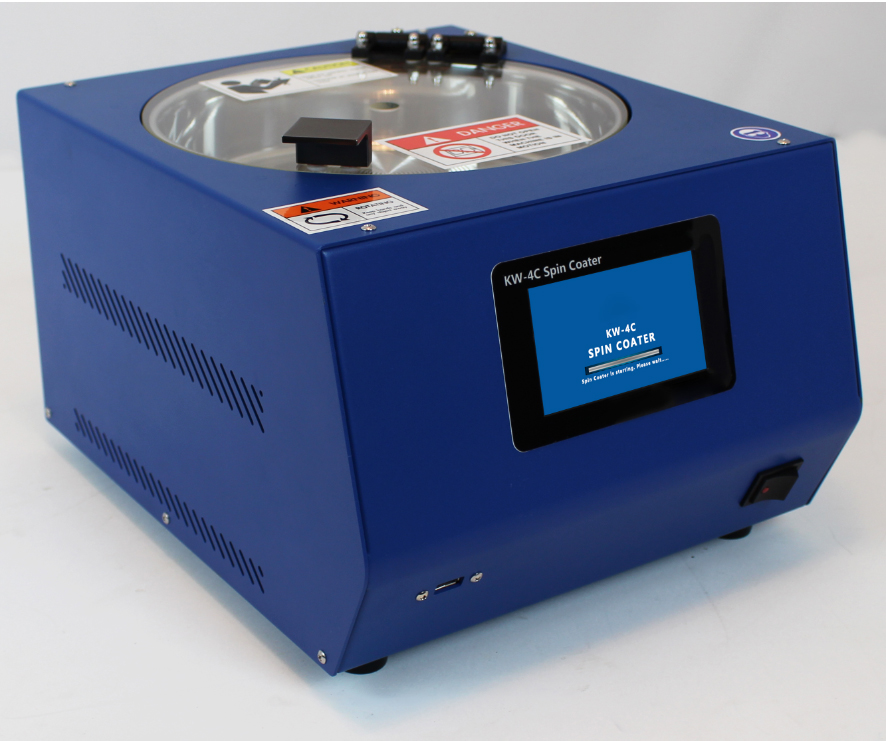

Spin Coater Specifications
|
Substrate size |
5mm to 150mm（ 6 inches） |
|
Speed range |
50- 10000RPM |
|
Acceleration range |
10- 10000RPM/S， Adjustable |
|
Motor speed stability |
±1RPM |
|
Spin coating uniformity |
±1% |
|
Human machine interface |
4.3 inch touch screen |
|
Communication interface |
can be connected to the wireless mouse and keyboard: the machine can be placed in the glove |
|
Turn around |
Can rotate forward and reverse |
|
Stylus |
Stylus BAMBOO resistance pen (standard) |
|
Vacuum Pump |
SC-550V |
|
Set data |
Unlimited group data, each group of 10 speeds (standard) |
|
Seconds per period |
0- 10000s |
|
Storage data |
Unlimited data |
|
Operating voltage(Spin Coater) |
AC100-250V, single phase, 50/60Hz |
|
Operating voltage(Pump) |
AC220V(Standard) AC110V(Optional) |
|
Pumping speed |
≥60L/MIN |
|
Max vacuum |
-85KPA |
|
Sound Level |
≤55db |
|
Spin coater power |
200W |
|
Pump power |
350W |
|
Dimensions(Spin Coater) |
210mm(W)X220mm(D)X160mm(H) |
|
Weight(Spin Coater) |
10KG |
|
Weight(Pump) |
9KG |
|
Relative humidity |
< 85% |
|
Ambient temperature |
0-40℃ |
|
Warranty |
1 year |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
