ItemNo :
Lith-KJ4VMOQ :
1Compliance:
CE CertifiedWarranty:
1 yearDelivery Time:
5 days

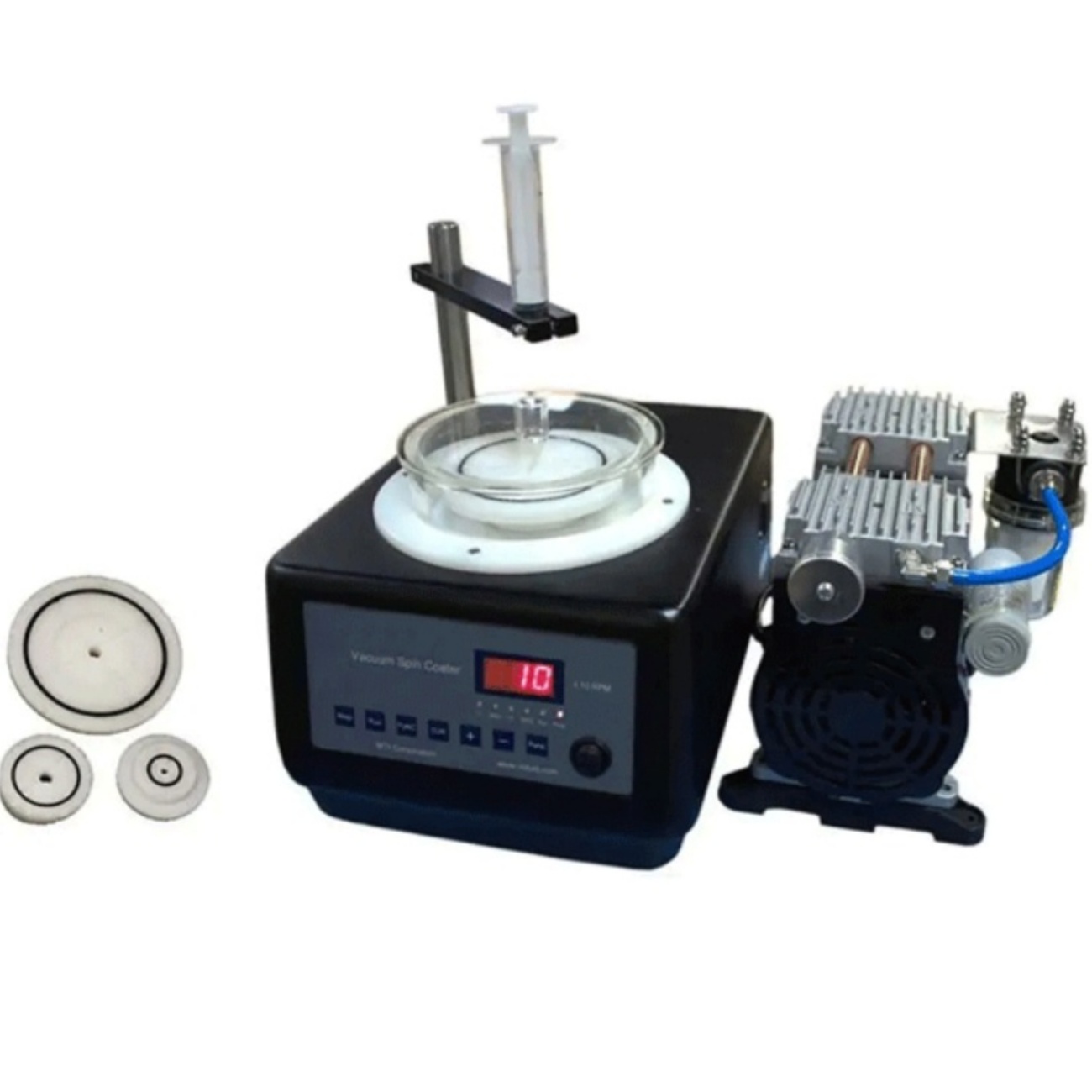

Lab Multi-Sample Spin Coater Machine With 3 Vacuum Chucks for 4 Inch Max
Parameter
Description
Housing
Aluminum cast casing for rotational stability
Liquid Disk
Corrosion-resistant design compatible with most chemical solutions
Included Accessories
1x in-line filter (prevents backflow) + 1x oil-free vacuum pump
Parameter
Description
Chamber Diameter
145 mm
Chuck Options
3x PP anti-corrosive chucks with O-rings (1", 2", 4")
Irregular Substrates
Includes 6"×24" adhesive tape for non-flat samples
Mini Substrates
Mini suction cups for <1" wafers or 5×5mm/10×10mm samples
Parameter
Description
Control Panel
Digital interface with 2-segment programmable control
Speed Range
500–8,000 RPM
Time Range
1–60 seconds
Configuration
Description
Standard
20 mL syringe with adjustable height/angle holder
Optional
- Precision electronic pipette (20–200 μL)
- Heatable syringe (prevents solution solidification)
Parameter
Description
Input Power
110VAC or 220VAC selectable (10A fuse)
Motor
24V DC, 150W max output
Dimensions
330×254×216 mm (L×W×H)
Net Weight
15 kg
Parameter
Description
Certifications
CE certified
Warranty
1-year limited warranty with lifetime support
· Plasma Cleaner: Improves film adhesion
· Vacuum Flash Assembly (VASP): Supports 5 mTorr vacuum environment
Parameter
Description
Packaging Dimensions
1016×711×610 mm (L×W×H)
Gross Weight
46 kg
· Anti-corrosion: PP chucks + aluminum housing for chemical resistance
· Versatility: Adhesive tape/suction cups support irregular/mini substrates
· Research-grade: Optional VASP and heatable syringe for advanced applications
1. Core Structure
2. Chamber & Vacuum Chucks
3. Spin Parameters
4. Liquid Dispensing System
5. Power & Dimensions
6. Compliance & Warranty
7. Optional Upgrades
8. Shipping Information
9. Key Features
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
