ItemNo :
LITH-PP-600ZDMOQ :
1Warranty:
2yearsDelivery Time:
5 daysEmail :
Louis@lithmachine.com
|

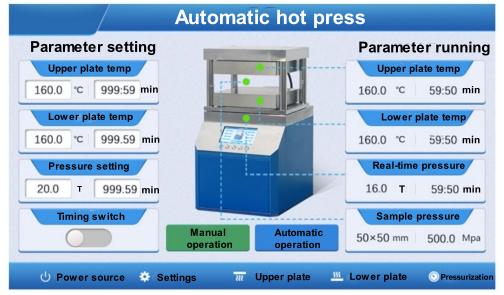

Operation interface (standard mode)
a. Standard interface: Various parameters can be set separately in this interface, like pressure, temperature, time, sample size, etc.
b. Press button: Press according to the parameters set on the interface.
c. Upper plate button: Start heating the upper plate according to the set temperature.
d. Lower plate button: Start heating the lower plate according to the set temperature.
e. Timing switch: The timing function can be turned on and off.

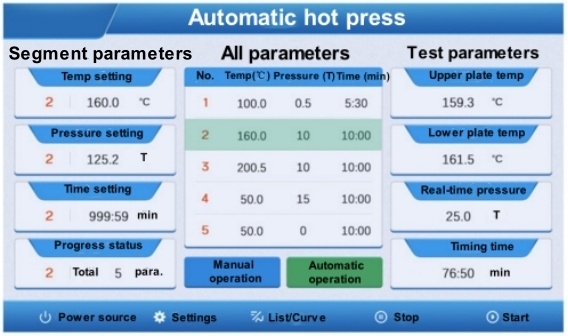

Operation interface (Automatic mode)
List/curve: it can swtich between the list and curve.

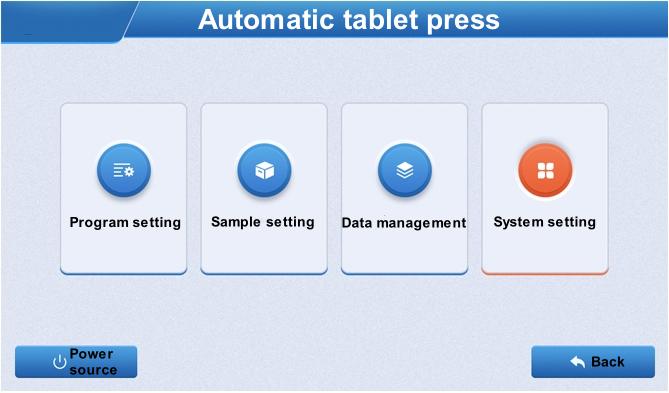

Setting interface

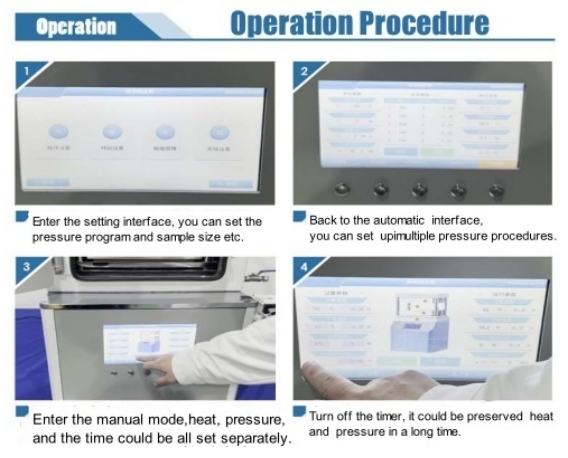

a. Tap Settings on the operation screen to enter the Settings screen. The Settings screen has four ICONS.
b. Program Settings: you can set up multiple pressure procedures and pressure holding time.
c. Sample setting: The shape and size of the sample can be set to facilitate the user to calculate the pressure of the sample.
d. Data management: Previously saved data records can be invoked and modified..
e. System Settings: Administrators can set various parameters and the enter password "666"

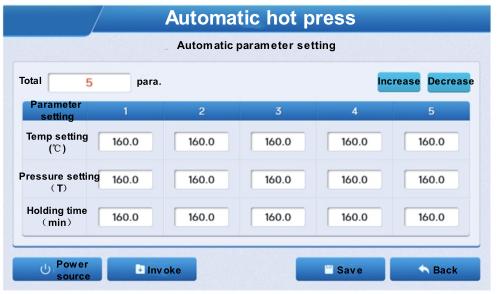

Setting interface
a. Multi-segment program setting, you can set the pressure program within 5 segments.
b. Invoke button, you can invoke the set parameters, to the automatic operation interface, applying pressure.
c. Save button, you can save the set parameters to the database, easy to call later.
d. Back button to return to the setting screen.
|
Instrument Model |
PP-600ZD |
||
|
Mold heating temperature and power |
|
|
|
|
Pressure range |
0-25t |
||
|
Pressure accuracy |
0.1t |
||
|
Vacuum degree |
-0.1 Mpa |
||
|
Display screen |
7 inch touch panel |
||
|
The way of heating |
Multiple temperature and pressure control programs |
||
|
Tablet size |
200 x 200 mm (m X n) |
||
|
Working space |
220 x 70 mm |
||
|
Cabin door size |
380 x 200mm(M XN) |
||
|
Power source |
220V / 110V （customize） |
||
|
The size and weight of the vacuum pump |
490 x 230 x 340 mm / 14 kg |
||
|
The size and weight of the product |
580 x 660 x 1200 mm(L X W X H) / 480 kg |
||
|
The size and weight of package |
900 x 800 x 1400 mm(L X W X H) / 550 kg |
||
|

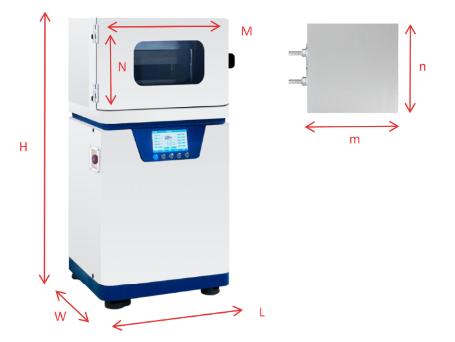

Dimention illustration |
|
||
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
