ItemNo :
LITH-SA2-9-12TPMOQ :
1Compliance:
CEWarranty:
2 yearsDelivery Time:
5 daysEmail :

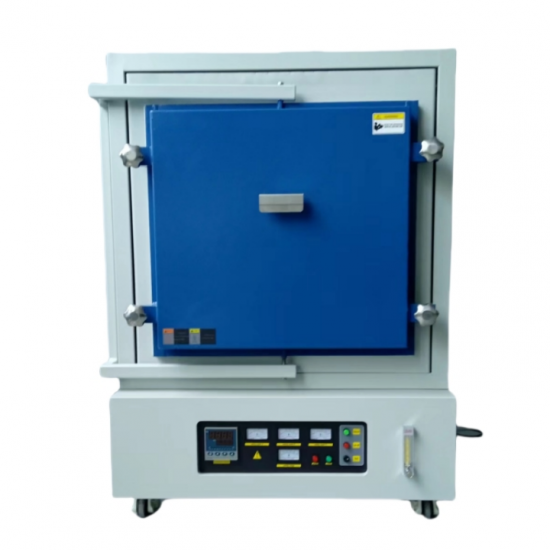

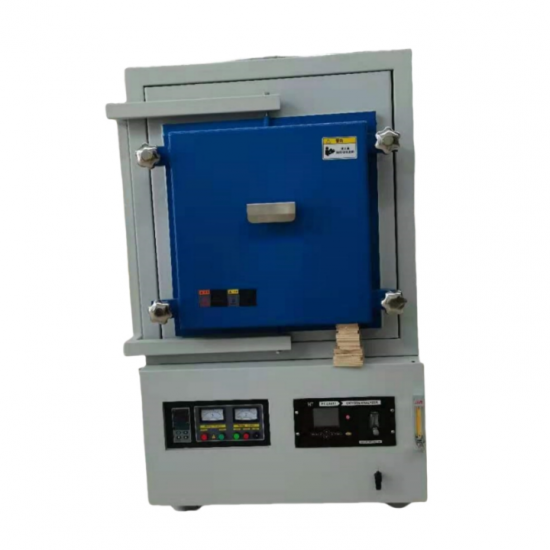

Louis@lithmachine.comLab 9KW High Temperature Atmosphere Furnace with Resistance Wire Heating Element
|
Main parameter |
PN: SA2-9-12TP, Max.Temp:1200C Working temperature:0-1100C Chamber size:D400*W300*H300mm Heating rate:0~20 Degree/Min Voltage 380V,3 phase 50/60HZ Heating element:Resistance wire Power:about 9kw Thermocouple:K type Temperature accuracy: ±1℃ Max.vacuum:-0.1Mpa |
||
|
Special design |
Add two gas inlet and float flowmeter (without mixing tank) Equipped with oxygen analyzer to measure the oxygen content in the furnace |
||
|
Inlet gas/Atmosphere |
It can be filled with various protective or destructive gases,Inert gases, mixed gases, nitrogen, oxygen, etc The maximum positive pressure of gas in the furnace does not exceed 0.02mpa |
||
|
Gas control |
each air inlet is provided with a ball valve, connected with a vacuum gauge. The air outlet is connected with vacuum pump, and all holes are equipped with ball valves. Equipped with a float flowmeter |
||
|
Furnace Chamber material |
Adopt the advanced light alumina ceramic fiber, with excellent thermal insulation effect, light weight, high temperature resistance, no crack, no crystallization, no slag, do not worry about pollution of the fired products. The energy saving effect is 60-80% of the old electric furnace. |
||
|
Furnace chamber design |
Furnace adopts the stepped assembly structure, integrating the mechanical law, effectively ensure the furnace in the heating process of uniform force, ensure that the heat is not easy to disperse, prolong the service life of the furnace. |
||
|
Furnace shell structure |
Electric furnace shell adopts double layer forced air cooling structure, so that the electric furnace works at the highest temperature and the external temperature of the shell is close to room temperature, so as to avoid accidental injury. |
||
|
Sealing way |
Furnace door adopts integral plane milling, silica gel strip embedded seal, with strong sealing, easy to open and close furnace door |
||
|
Temperature controlling |
Adopt international advanced temperature controller, with 30 programmable PID self-tuning, automatic temperature rise, automatic temperature drop, no duty. |
||
|
Temperature control security |
The electric furnace adopts integrated circuit, module control, double circuit protection (ultra-high temperature protection, coupling protection, overcurrent protection,and other protection functions) to make the electric furnace work stable and reliable, safe. |
||
|
Warranty |
One year limited warranty with lifetime support, excluding heating element,cooling fans,thermocouple damaged by user. Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty. |
||
|
Standard Package Accessories: |
|||
|
Electric Furnace |
1 set |
|
|
|
High temperature gloves |
1 pair |
|
|
|
Crucible clip |
1 pc |
|
|
|
User manual |
1 book |
|
|
|
Door block |
1 pc |
|
|
|

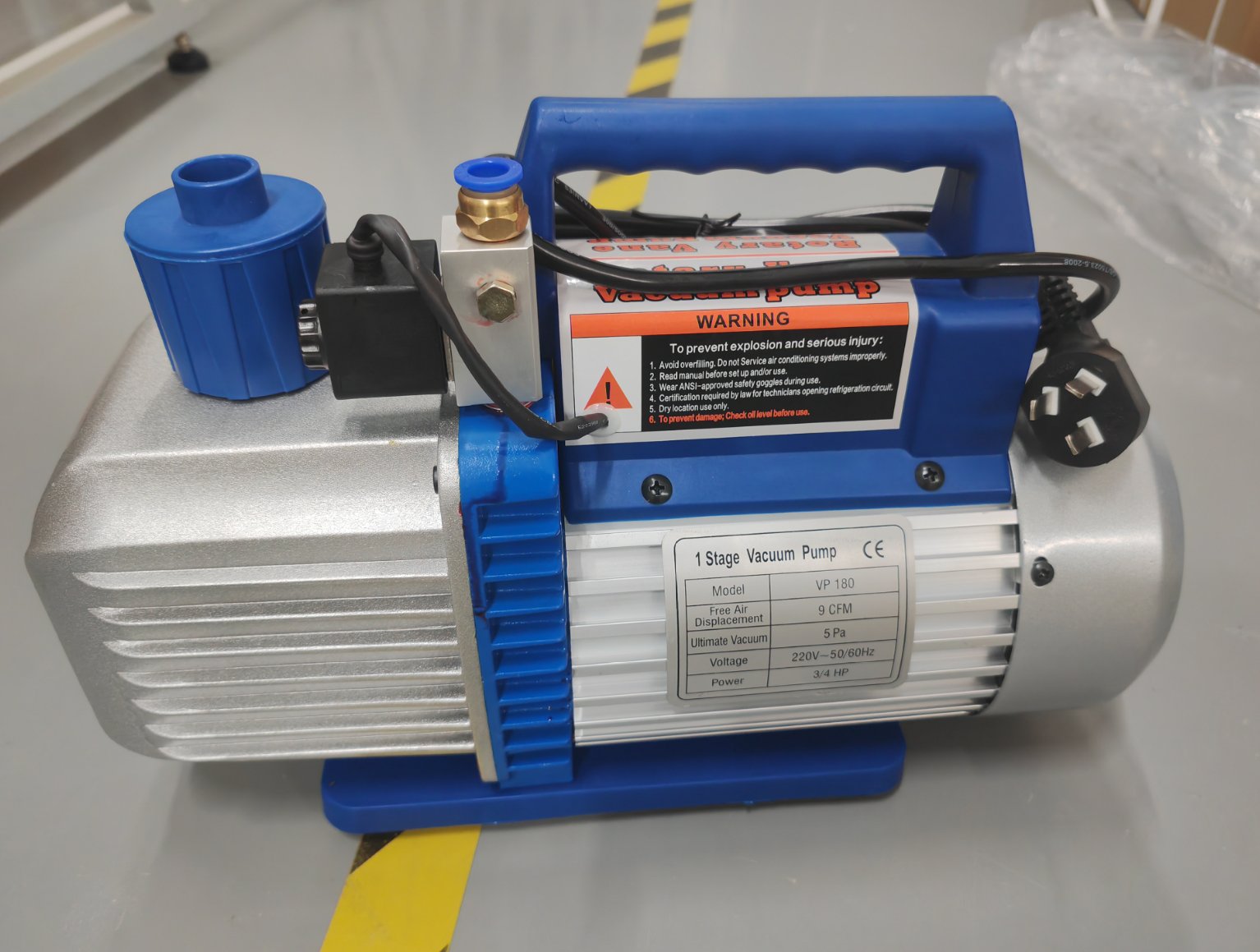

Vacuum pump |
1 set |
|
|
Detail picture
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
