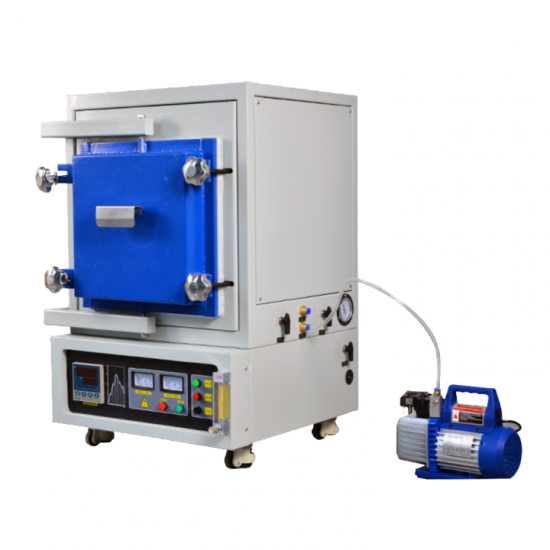

Louis@lithmachine.comLab 1800C Inlet Gas or Atmosphere Vacuum Electric Furnace
|
Main parameter |
PN: SA2-18TP1750 Max.Temp:1800C Working temperature:1750C Chamber size:D200*W150*H150mm Heating rate:0~10 Degree/Min，suggesion0-5C/min Voltage:220V single 50/60HZ Power:7.15kw(subject to design) Heating element:Yantai 1850 Mosi2 heating element Thermocouple:B type Temperature accuracy: ±1℃ Max.vacuum:-0.1Mpa |
||
|
Inlet gas/Atmosphere |
It can be filled with various protective or destructive gases,Inert gases, mixed gases, nitrogen, oxygen, etc |
||
|
Gas control |
The air inlet can be set up 1 air intakes, each air inlet is provided with a ball valve, connected with a vacuum gauge. The air outlet is connected with one air outlet, and all holes are equipped with ball valves. Equipped with a vacuum pump. |
||
|
Furnace Chamber material |
Adopt the advanced light alumian caramic and foamed ceramics, with excellent thermal insulation effect, light weight, high temperature resistance, no crack, no crystallization, no slag, do not worry about pollution of the fired products. The energy saving effect is 60-80% of the old electric furnace. |
||
|
Furnace chamber design |
Furnace adopts the stepped assembly structure, integrating the mechanical law, effectively ensure the furnace in the heating process of uniform force, ensure that the heat is not easy to disperse, prolong the service life of the furnace. |
||
|
Furnace shell structure |
Electric furnace shell adopts double layer forced air cooling structure, so that the electric furnace works at the highest temperature and the external temperature of the shell is close to room temperature, so as to avoid accidental injury. |
||
|
Sealing way |
Furnace door adopts integral plane milling, silica gel strip embedded seal, with strong sealing, easy to open and close furnace door |
||
|
Temperature controlling |
Adopt international advanced temperature controller, with 30 programmable PID self-tuning, automatic temperature rise, automatic temperature drop, no duty. |
||
|
Temperature control security |
The electric furnace adopts integrated circuit, module control, double circuit protection (ultra-high temperature protection, coupling protection, overcurrent protection, and other protection functions) to make the electric furnace work stable and reliable, safe. |
||
|
Warranty |
One year limited warranty with lifetime support, excluding heating element,furnace chamber,thermocouple damaged by user. Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty. |
||
|
Standard Package Accessories: |
|||
|
Electric Furnace |
1 set |
|
|
|
High temperature gloves |
1 pair |
|
|
|
Crucible clip |
1 pc |
|
|
|
Heating element |
2 pcs |
|
|
|
User manual |
1 book |
|
|
|
Door block |
1 pc |
|
|
|
Vacuum pump |
1 set |
|
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
