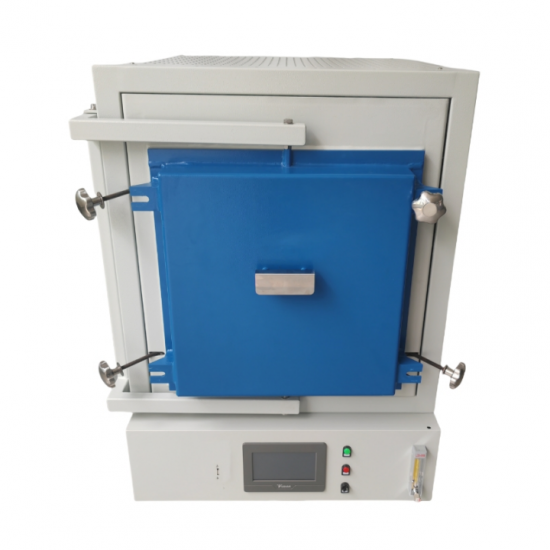

Louis@lithmachine.comLab 1700C High Temperature Atmosphere Electric Furnace with Mosi2 Heating Element
|
Main parameter |
Model: SA2-9-17TP Max.designTemp:1700C Max. temperature:1600C Maximum continuous temperature 1550°C Customized Chamber size:D300*W200*H200mm(12L) Power: 9kw Heating rate:0~10 Degree/Min，suggestion0-5C/min Max.vacuum:-0.1Mpa Heating element: Mosi2 heating element Thermocouple：B type Temperature accuracy: ±1℃ Voltage:380v 2 phase |
||
|
Inlet gas/Atmosphere |
It can be filled with various protective or destructive gases,Inert gases, mixed gases, nitrogen, oxygen, etc |
||
|
Gas control |
The air inlet be set up 1 air intakes, each air inlet is provided with a ball valve, connected with a vacuum gauge. The air outlet is connected with ball valves and vacuum pump. |
||
|
Appearance design |
The electric furnace adopts humanized design, beautiful and easy to operate, and the outer layer of paint is sprayed with high temperature baking technology. High temperature resistance, oxidation resistance, acid and alkali resistance. Color selection is aging resistant tone, will not cause the appearance color fade due to a long time of use. |
||
|
Furnace Chamber material |
Adopt the advanced light alumina ceramic fiber, with excellent thermal insulation effect, light weight, high temperature resistance ce, no crack, no crystallization, no slag, do not worry about pollution of the fired products. The energy saving effect is 60-80% of the old electric furnace. |
||
|
Furnace chamber design |
Furnace adopts the stepped assembly structure, integrating the mechanical law, effectively ensure the furnace in the heating process of uniform force, ensure that the heat is not easy to disperse, prolong the service life of the furnace. |
||
|
Furnace shell structure |
Electric furnace shell adopts double layer forced air cooling structure, so that the electric furnace works at the highest temperature and the external temperature of the shell is close to room temperature, so as to avoid accidental injury. |
||
|
Sealing way |
Furnace door adopts integral plane milling, silica gel strip embedded seal, with strong sealing, easy to open and close furnace door |
||
|
Temperature controlling |
Adopt international advanced temperature controller with PID self-tuning, Can set 10 programs with 30 sections, can view historical curves and historical records, can export data through USB interface, with over-temperature and broken couple alarm, automatic temperature rise, automatic temperature drop, no duty. |
||
|
Temperature control security |
The electric furnace adopts integrated circuit, module control, double circuit protection (ultra-high temperature protection, coupling protection, overcurrent protection, and other protection functions) to make the electric furnace work stable and reliable, safe. |
||
|
Warranty |
One year limited warranty with lifetime support, excluding heating element,cooling fans,thermocouple damaged by user. Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty. |
||
|
Standard Package Accessories: |
|||
|
Electric Furnace |
1 set |
|
|
|
High temperature gloves |
1 pair |
|
|
|
Crucible clip |
1 pc |
|
|
|
Spare Heating element |
2 pcs |
|
|
|
User manual |
1 book |
|
|
|
Door block |
1 pc |
|
|
|
Vacuum pump |
1set |
|
|
Detail picture
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
