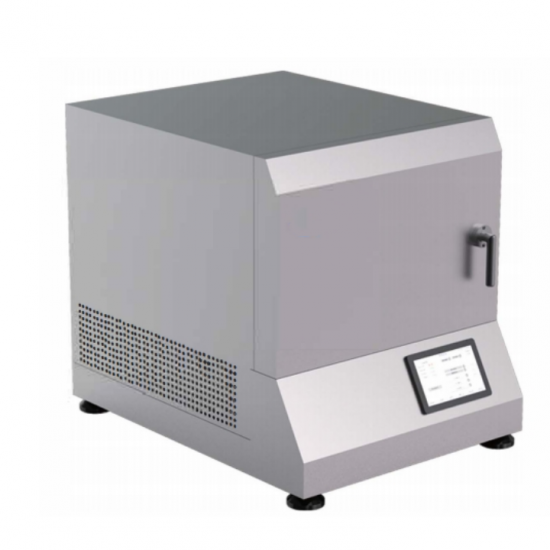

Louis@lithmachine.comLab 1100C 1600C Dual Heat Source Microwave Muffle Furnace
Summarize
HY-MF-E double heat source high temperature Muffle furnace is a newly developed high temperature scientific research equipment that combines multiple heating methods. It is suitable for experimental research of synthesis, ashing, expansion, heat treatment, roasting, calcination and sintering under different heating methods, and compare the experimental results under different heating methods
Main feature
1) Industrial brand microwave source, microwave output power stepless adjustable, to ensure continuous and stable long-term operation of equipment;
2) Using the original thermal insulation and crucible structure, energy saving and high efficiency, uniform temperature field, no pollution to materials;
3) Adopt different heating methods, suitable for a wider range of materials;
4) Dual heat source switch is convenient, can be opened separately or at the same time, the experimental process is more diverse, the comparison of experimental results is more intuitive;
5) Touch screen operation, simple and convenient; Brand control system, stable and reliable;
6) Door open and power off, resumption delay, professional microwave shielding technology, to ensure safety.
Technical parameter
|
Model |
HY-MF1512E |
HY-MF1516E |
HY-MF3012E |
HY-MF3016E |
|
Voltage |
220±10V，50Hz |
380±10V，50Hz |
||
|
Microwave output power |
0.01~1.40kW, continuously adjustable (Panasonic) |
0.01~2.80kW, continuously adjustable (Panasonic) |
||
|
Electric power |
3kw |
5kw |
||
|
Heating space (L x W x H) |
210x210x70mm |
240x240x100mm |
||
|
Microwave frequency |
2.45GHz |
|||
|
Operating temperature |
≤1100℃ |
≤1600℃ |
≤1100℃ |
≤1600℃ |
|
Temperature measurement method |
Thermocouple/infrared |
|||
|
Control mode |
Programmable Logic Controller (Mitsubishi)+ Touch screen (Kunlun Mode) |
|||
|
Control program |
Can set multi-stage process parameters, with data storage and export functions, a variety of control modes; One-button oven |
|||
|
Anti-microwave leakage |
Microwave leakage level <1mW/cm2 |
|||
|
Safety protection |
Furnace door shutting switch, door open and power off, re-power delay, over-temperature alarm |
|||
|
Main body (L x W x H) |
About 750x550x650mm |
About 850x650x750mm |
||
Consumables and optional accessories
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
