ItemNo :
LITH-ZDW12MOQ :
1Compliance:
Warranty:
2yearsDelivery Time:
5 days
Features

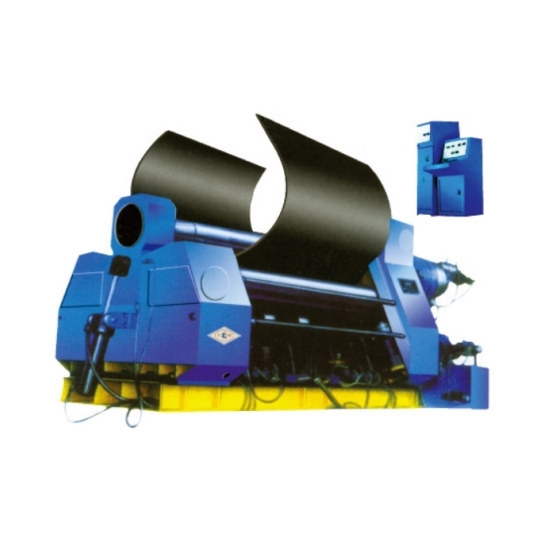

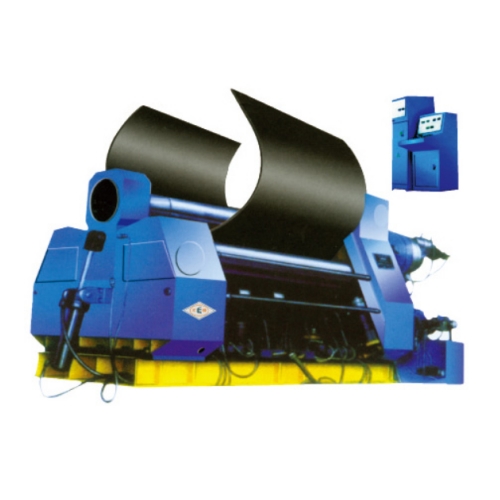

ZDW12 4-roll rolling machine with mechanically-driven up-roll, and hydraulically-driven low-roll and side-roll, is electrically controlled. The machine can finish pre-changing of two ends of plates.rolling of cylindrical or arc parts, levelling and pre-bending of metal plates at onetime,thus, it is very effective.
Technical parameter
|
Type |
Max. Thickness of plate |
Max. Width of plate |
Plate yield limit |
Rolling speed |
Min dia. In full load |
Dia. Of upper roller |
Dia. of lower roller |
Center distance of lower roller |
Main motor power |
Weight |
Dimension |
|
Unit |
mm |
mm |
mpa |
M/min |
mm |
mm |
mm |
mm |
KW |
T |
mm |
|
8x2000 |
8 |
2000 |
6.1 |
6 |
700 |
280 |
260 |
180 |
11 |
11 |
5300x1400x1760 |
|
8x2500 |
8 |
2500 |
6.1 |
6 |
750 |
300 |
280 |
230 |
15 |
15 |
6100x2000x2070 |
|
12x2000 |
12 |
2000 |
5.45 |
10 |
700 |
300 |
280 |
230 |
15 |
15 |
5500x2000x2070 |
|
12x2500 |
12 |
2500 |
5.5 |
10 |
750 |
340 |
300 |
260 |
22 |
22 |
6300x2000x1200 |
|
12x4000 |
12 |
4000 |
4 |
10 |
850 |
380 |
340 |
260 |
30 |
30 |
7500x2000x1800 |
|
16x2000 |
16 |
2000 |
5.5 |
12 |
750 |
340 |
300 |
260 |
22 |
22 |
5500x2000x1800 |
|
16x2500 |
16 |
2500 |
6.5 |
12 |
850 |
350 |
320 |
280 |
30 |
30 |
6510x2000x1870 |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
