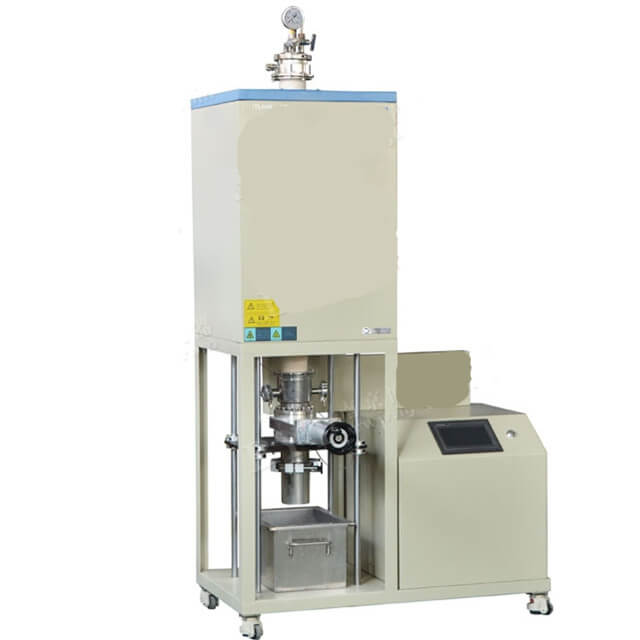

Louis@lithmachine.comHigh Temperture 1600C Vertical Gas Tube Quenching Furnace for Lab Sintering Study
This quenching furnace is a gas quenching furnace. The difference from the traditional quenching furnace is the vacuum cavity behind the flange. There are two pairs of air inlets on the cavity. After the material is heated, pull the material to the vacuum cavity and quench it with gas.
Detailed parameter information
Model |
VTL1600-I |
VTL1600-II |
VTL1600-III |
Power |
7.5KW |
7.5KW |
7.5KW |
Tube size |
Dia60(OD)X1000mm |
Dia80(OD)X1000mm |
Dia100(OD)X1000mm |
Dimension(LXDXH) |
1300X500X800mm |
1300X500X800mm |
1300X500X800mm |
Supply voltage |
220V/380V |
||
phase |
single phase |
||
Heating element |
· 1800 MoSi2 heating element |
||
Tube |
Corundum tube: high purity AIO ceramics (containing) 99.5% |
||
Control mode |
Use Yudian program temperature control instrument (standard) 1. 50-segment program temperature control intelligent PID adjustment. 2. With over-temperature protection. The electric furnace heating circuit is automatically cut off when over-temperature protection or over-temperature protection occurs. (When the temperature of the electric furnace exceeds 1720 degrees or the thermocouple is blown, the AC relay on the main circuit will be automatically disconnected, the main circuit is disconnected, the ON light on the panel is off, the OFF light is on, and the electric furnace is limitedly protected). 3. With 485 communication interface (standard configuration when purchasing software). 4. It has a power failure protection function, that is, when the furnace is powered on after the power is turned off, the program does not start from the initial temperature, but starts from the temperature of the furnace when the power is turned off. 5. The meter has the function of temperature self-tuning.
(replacement of imported instruments requires additional payment and purchase)
FP93 control instrument(SHIMADEN) EUROTHERM touch screen |
||
Break couple protection and display |
Yes |
||
Over-temperature protection |
Yes |
||
Overcurrent protection |
Yes |
||
Control precision |
+/- 1 ℃ |
||
Flip-flop |
· Phase-shifted trigger |
||
Electric appliance |
Zhejiang chint |
||
Silicon controlled |
· 106/16E SEMIKRON |
||
Max. temp |
1600 ℃ |
||
Rated temp |
1550 ℃ |
||
Heating rate |
≤20 ℃/ Min (can be modified as required) |
||
Recommended heating rate |
≤5℃/ Min |
||
· Thermocouple Type |
B |
||
Heating length |
300mm |
||
Electrical certification |
CE |
||
Ambient surface temperature |
≤45℃ |
||
Vacuum seal flange and valve |
1. A stainless steel sealing flange and stainless steel needle valve are installed on the top of the furnace body. 2. A bottom plate valve, a non-mechanical pressure gauge, and a KF25 vacuum interface are used to connect the vacuum pump at the bottom of the furnace body. 3. Vacuum degree: The vacuum degree of the mechanical pump can be less than 1Pa. If you want to obtain a higher vacuum degree, you can choose a domestic or imported high vacuum unit. The vacuum degree can reach 10-3Pa. Optional: The following accessories increase vacuum efficiency. 4. KF25 stainless steel bellows, KF25 quick remover clamp. 5. Optional anti-corrosion digital vacuum gauge with a measurement range of 3.8x10-5 to 1125 Torr. No coefficient conversion is required due to different types of measurement gases.
|
||
Cavity structure diagram |
After the sample is heated, the sample is pulled to the vacuum chamber through a pull rod and quenched with gas. |
