High speed Automatic Prismatic Battery Stacking Equipment

High speed Automatic Prismatic Battery Stacking Equipment

  • Product Details

High speed Automatic Prismatic Battery Stacking Equipment


Feature

1.High speed: Linear motor feeding, linear motor driving stacking table movement, achieving high-speed stacking, with a speed of up to 0.3s/pcs

2.The diaphragm is actively unwinded by the servo, and the tension is controlled by the servo torque. The diaphragm buffer and stacking platform move synchronously to supply the diaphragm, preventing it from stretching and deformation.

3.Measures for multi piece leakage: material box swing, segmented brush, robotic arm servo shaking to separate polar pieces, and ultrasonic sensor to detect multi piece leakage.

4.Corner detection of electrode lug: four Corner detection of electrode lug and electrode lug are detected, and defective electrode lug is automatically discharged.

5.The FFU fan at the top of the equipment supplies air, and the industrial dust removal system vacuums multiple workstations such as the material box and positioning, allowing the internal air of the machine to circulate and suck away the floating powder inside.


Specification

Locate mode

Mechanical positioning or CCD positioning

Stacking efficiency

Single station 0.6 (complete machine 0.3) s/pcs

Auxiliary time

<10s

Alignment accuracy between electrode and diaphragm

Center deviation ± 0.3mm

Diaphragm end face alignment accuracy

±0.3mm

Adjacent pole alignment accuracy

±0.2mm

Overall alignment accuracy of polar plates

±0.3mm

Number of laminations

Can be set within the thickness adaptation range

Outer diaphragm

Tail roll/no tail roll

Pass rate

≥99.5%

Utilization rate

≥98%

Overall dimensions

W4000mm x L2000mmx H2500mm

Weight/bearing capacity

About 5000Kg ; >650Kg/M2

Power

AC220V single-phase; 10% voltage wave induced soil disturbance; Power: 15KW; Frequency: 50Hz

Compressed air

0.5~0.7Mpa (5~7kgf/cm2 , dosage 800L/min


Thickness

5~20mm



Width

80~200mm

Length

120~300mm

Pole length

10~30mm

Polar direction

On the same/opposite side

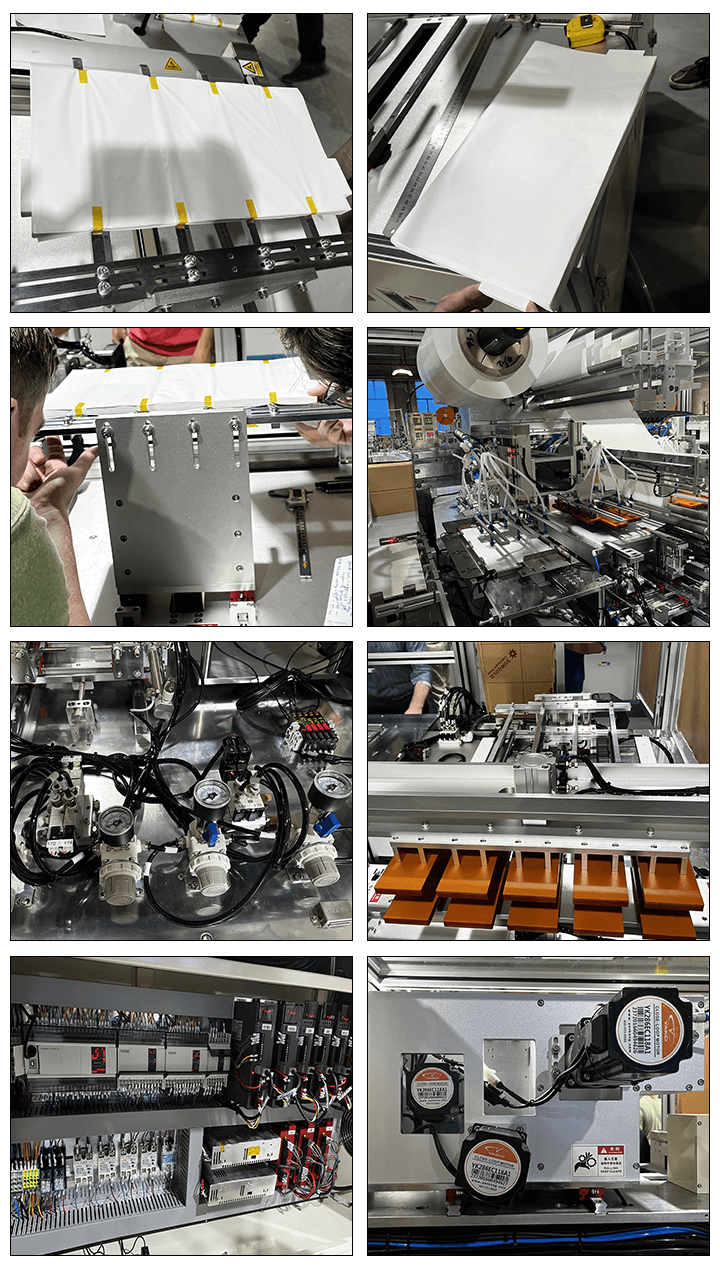

Production Assembly Plant












PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
