ItemNo :
LITH-5V50mA-08CHMOQ :
1Place of Origin:
ChinaPort :
Xiamen PortCompliance:
CEWarranty:
2yearsDelivery Time:
5 days

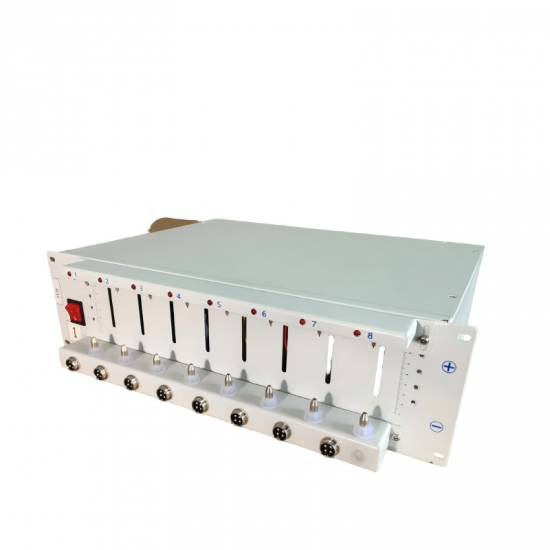

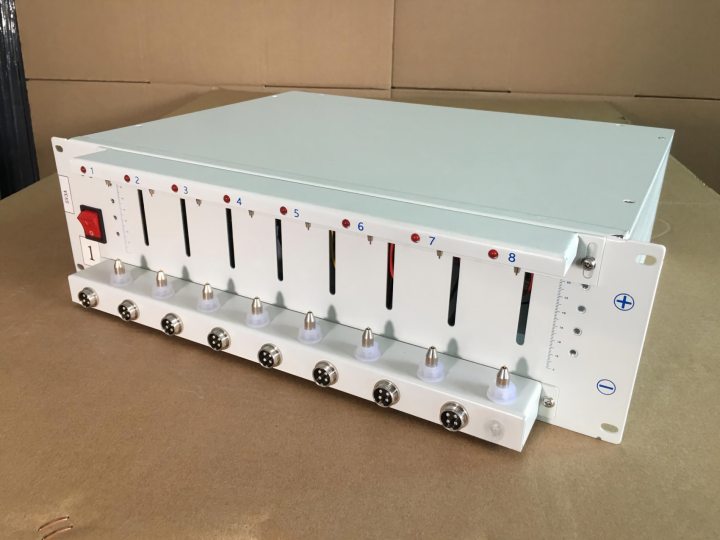

High Precision 5V50mA 8 Channel Analyzer Battery Tester
1. LITH-5V50mA Battery Test Equipment is an eight-channel battery analyzer to analyze small coin cells with a range current 0-50mah, voltage 0-5v. Each channel of the analyzer has independent constant-current and constant-voltage source, which can be programmed and controlled by computer software.
2. This coin cell tester system provides most applications in battery testing fields such as electrode materials research, battery performance test, small scale battery formation, capability grading, battery pack testing, etc.
3. The coin cell tester is suitable for all kinds of coin cell battery such as lithium battery, NI-MH battery, Zn-Mn watch battery and so on.
The triple range greatly improves the accuracy of the battery tester, and more importantly, realizes the CVD (constant voltage discharge) function. At the same time, it also helps customers save costs. At present, there are 5V10mA/50mA/6A/12A to choose from, and more models will be launched soon.
I. Technical Specifications:
|
Indicator Items |
Indicator Parameters |
||
|
unit type |
LITH-5V50mA-08CH |
||
|
specification of equipment |
5V/1mA/10mA/20mA/50mA |
||
|
Number of equipment channels |
8 channel |
||
|
Channel Control Method |
Each channel is independently controlled, with four-wire acquisition for current and voltage measurements. |
||
|
Channel Characteristics |
The constant current source and constant voltage source employ a dual closed-loop structure. |
||
|
input impedence |
≥1MΩ |
||
|
voltage |
voltage scope |
charge |
10 mV–5 V (Equipment port) |
|
discharge |
0.75V–5V (equipment port); the minimum discharge voltage depends on the cable length. |
||
|
accuracy |
±0.05% of FS, ambient temperature: 15°C–35°C |
||
|
Current |
Current scope |
charge |
0.1mA-50mA |
|
discharge |
0.1mA-50mA |
||
|
accuracy |
|
±0.05% of FS, ambient temperature: 15°C–35°C |
|
|
power |
Single-channel output power |
0.2W |
|
|
stability |
0.2% of FS |
||
|
time |
Current response time |
≤10ms |
|
|
data take notes |
Recording frequency |
1Hz |
|
|
Data recording conditions |
Minimum time interval: 1S |
||
|
Minimum voltage interval: 1 mV |
|||
|
Minimum current interval: 1 mA |
|||
|
charge |
Charging Mode |
Constant current charging, constant voltage charging, constant current–constant voltage charging, and constant power charging |
|
|
cut-off condition |
Voltage, current, relative time, capacity, -ΔV |
||
|
discharge |
Discharge Mode |
Constant current discharge, constant power discharge, and constant resistance discharge |
|
|
cut-off condition |
Voltage, current, relative time, capacity, -ΔV |
||
|
impulse pattern
selectable |
charge |
Constant Current Mode, Constant Power Mode |
|
|
discharge |
Constant Current Mode, Constant Power Mode |
||
|
Minimum pulse width |
Recommended: 5S or higher |
||
|
cut-off condition |
Voltage, Relative Time |
||
|
Indicator Items |
Indicator Parameters |
|
|
DCIR |
DCIR (Optional) |
Supports custom point selection for DCIR calculation |
|
recurrence |
cycle test |
Up to 399 commands can be configured, and up to 65,535 loops can be set. |
|
loop nesting |
Supports up to 5 levels of nested loops |
|
|
protect |
software protection |
Supports power failure data protection |
|
Supports restart boot (requires a UPS power supply) |
||
|
Overvoltage protection, Undervoltage protection, Capacity protection, Overcurrent protection, Undercurrent protection |
||
|
Anti-reverse connection protection |
||
|
Data Export Method |
Excel、PDF |
|
|
cooling-down method |
forced air cooling |
|
|
Equipment noise |
≤50dB |
|
|
Communication method with the host computer |
network |
|
|
outline dimension |
|
|
|
display screen |
|
|
|
system requirements |
Windows XP and later versions |
|
II. Equipment Operating Environment Requirements:
|
Indicator Items |
Indicator Parameters |
|
operating temperature range |
0℃-40℃ |
|
Storage temperature range |
-10℃-50℃ |
|
Work environment relative humidity |
≤70% RH (no water vapor condensation) |
|
Storage environment relative humidity |
≤80% RH (no water vapor condensation) |
|
Enter active power |
80W |
|
Input power supply |
AC 220V ±10%/50Hz; other power supply specifications are available upon request. |
|
Fixture type |

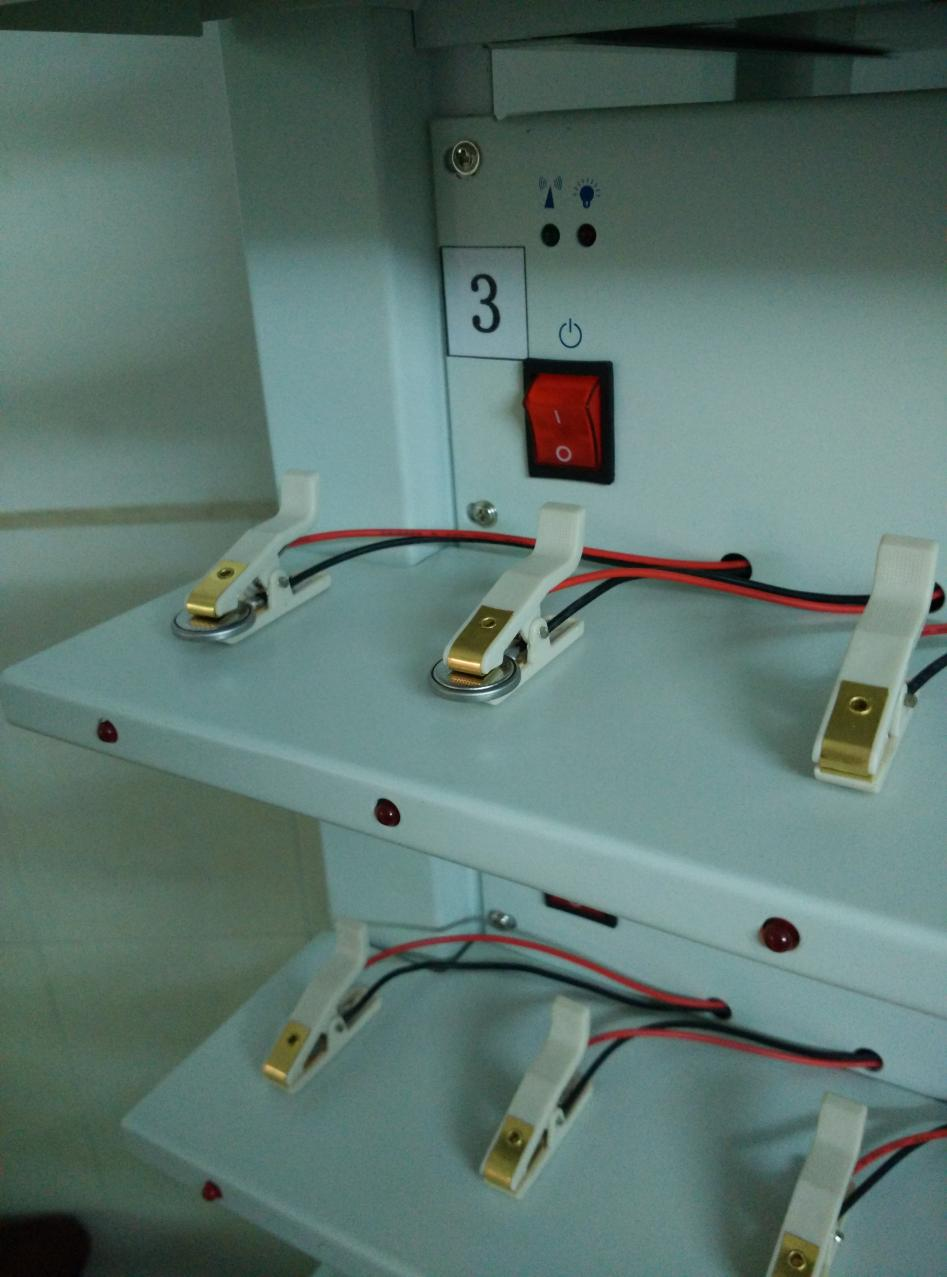

Button fixture, polymer fixture, or clamp fixture – any one of these options is optional. |
|
Other requirements |
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
