Double-Sided CMS Graphite Coated Copper Foil Used as Anode Material for Laboratory Batteries

ItemNo :
LITH-GCCF
MOQ :
1
Warranty:
1years
Delivery Time:
2 days

Email :

Louis@lithmachine.com

Whatsapp :

+86 18659217588

Wechat :

18659217588

Contact Now

Product Details

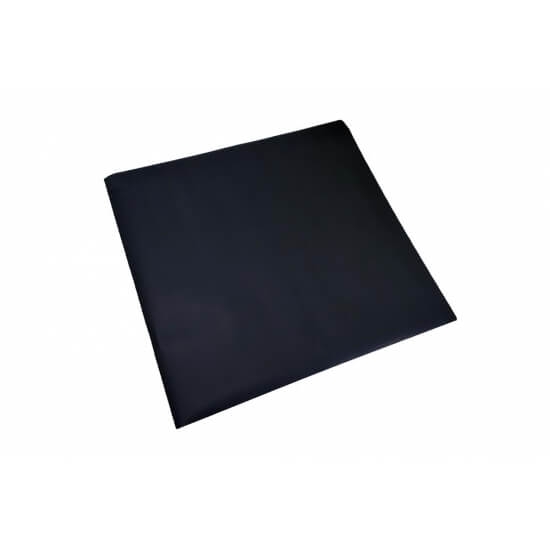

Double-Sided CMS Graphite Coated Copper Foil Used as Anode Material for Laboratory Batteries

This electrode sheet is based on copper foil coated by carbon in double side, and

is used as the anode electrode of Li-Ion battery -- 5 sheets /bag

Specifications

Current collector (substrate): Copper foil, 9 micron
Anode material: Composite Graphite
Active powder SSA (BET): 3~5 m^2/g
Binder: SBR+CMC
Double sides active material density: 120gm²
Active Material Weight: 5.0176g
Active Material Proportion in Powder: 95.70%
Length: 241mm
Width: 200mm
Total Thickness: 110 um +/- 8 um
Foil Thickness: 10 um +/- 3 um
Coating Thickness:100 um +/- 5 um (double sized coated)
Specific Capacity: 330mAh/g
Net Weight: 14 g
Double side coated
Qty: 5 Sheets/bag
Note: if you use the electrode sheet for single layer button cell, you shall
remove one layer coating by a sand paper to make one side contact to button cell case.

PACKAGE:

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damaged part for you for free.

DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
