Battery Pressure Distribution Sensor Measure System

Battery Pressure Distribution Sensor Measure System

  • ItemNo :

    LITH-BPD1000
  • MOQ :

    1
  • Compliance:

    CE Certified
  • Warranty:

    2 years
  • Delivery Time:

    2 days
  • Email :

    Louis@lithmachine.com
  • Product Details

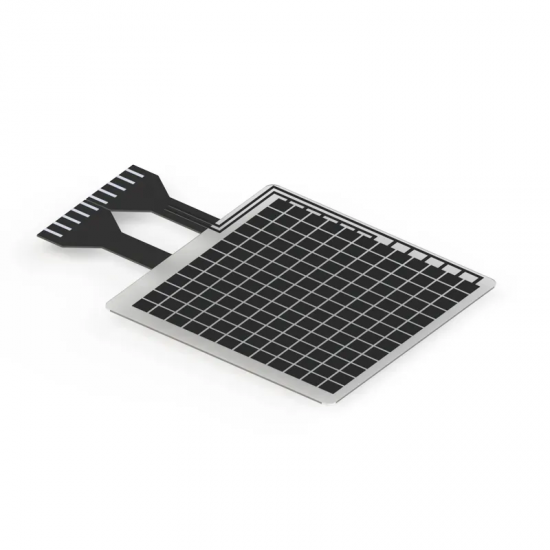

Battery Pressure Distribution Sensor Measure System




Introduction

LITH-BPD is used to quantitatively characterize the difference in stress distribution at different positions on the surface of the battery cell, and evaluate the performance of the battery cell.


Characteristic

1. Use expansion force test fixture or in-situ expansion test equipment to characterize the stress distribution at different positions on the surface of the battery cell during the cycle process;
2. Real-time display of force-time curve
3. Real-time synchronization of charge & discharge data
4. One click test data export
5. Quickly and quantitatively evaluate the surface flatness of the battery cell.


Applications

Expansion force distribution evaluation for soft cases, hard cases, modules, etc.


Description

1. Background

As a common electric energy storage device, lithium-ion battery (LIB) has the advantages of high energy density high specific power, high output voltage, small self-discharge, long service life, etc.which is widely used in electric vehicles, electronic products and other fields. On the one hand, during the manufacturing process of the LIB, the internal stress distrbution or the surtace thickness distribution wll be uneven because the process environment cannot be completely consistent; on the other hand, in the electrochemical cycle process, intercalation and deintercalation of li-ions will lead to the volume expansion and contraction, However, the uneven current density or temperature distribution inside the LIB, wi. lead to the uneven distribution of the stress durina the expansion of the LIB. Thus, the quantitative characterization of the stress distribution on the surface of LIB can provide a deeper perspective for the battery stress analysis, assist technicians to analyze the battery stress distribution, explore the causes of the failure of the LIB, and develop a safer and more reliable LIB.


2. Introduction of Pressure Distribution Measure System

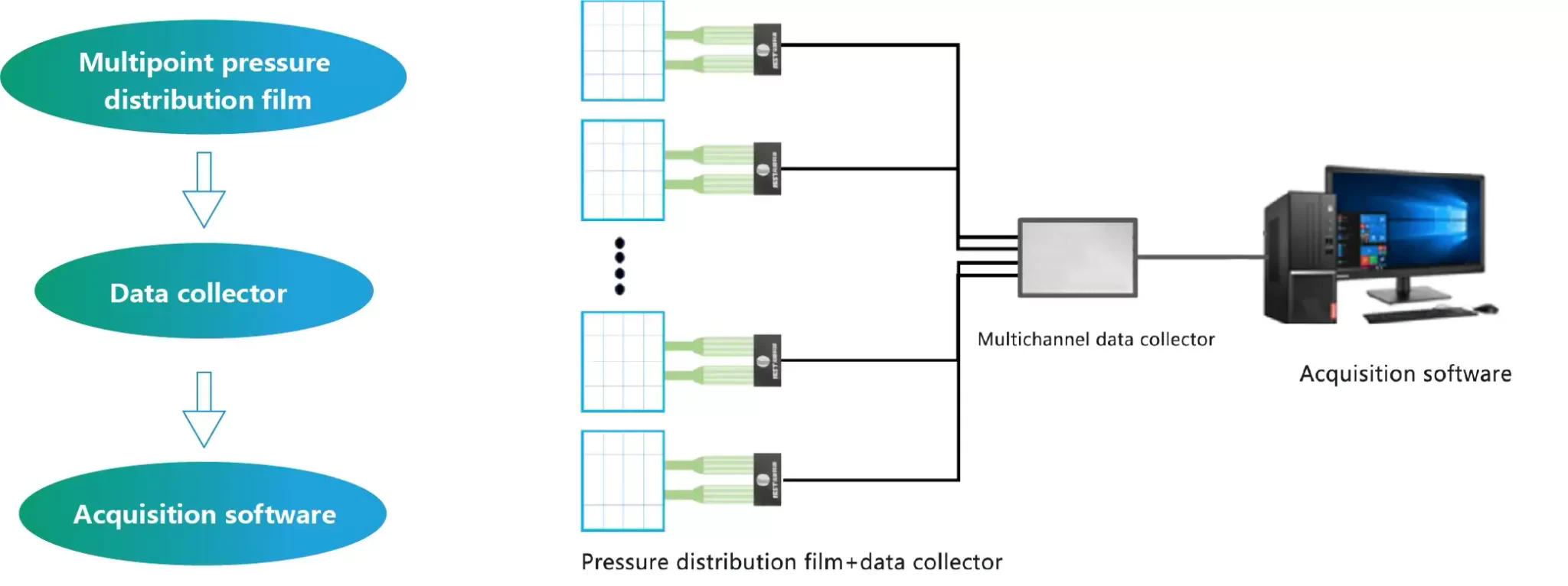

Structural composition:




3. Features

1) Display the resultant force curve of eachdetection unit in real time;
2) Select the pressure distribution diagramaccording to the user's actual used area;
3) Synchronize the charging and discharging datain real time;
4) One-click to export the data report;
5) Real-time calibration of pressure (combinedwith in-situ expansion equipment).


Application Cases

1. With the expansion force test fixture or in-situ expansion test equipment, the stress distribution at different positions on the surface of the cell during the cycling process is characterized.

2. Quickly and quantitatively evaluate the surface flatnessof the cell.

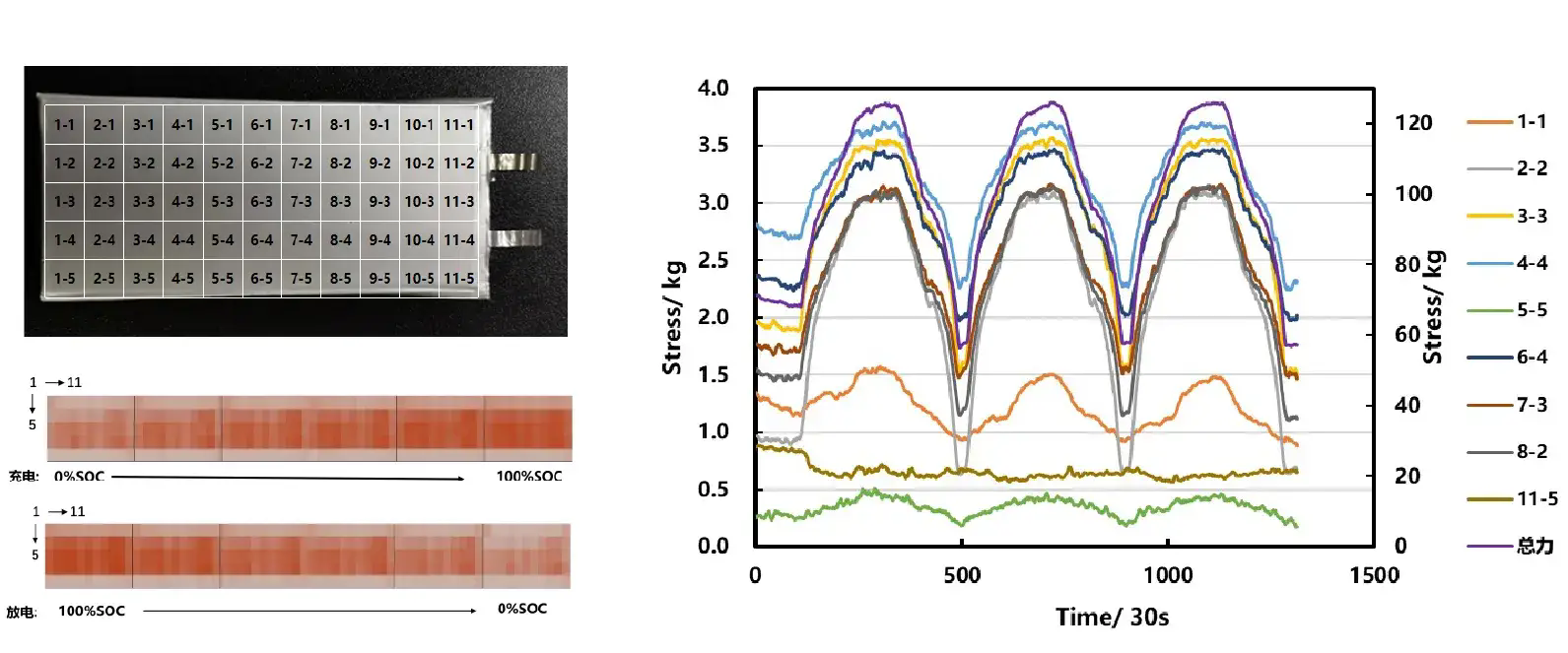

Case 1. Test of stress distribution on the surface of the cell during the cycle




Test information: NCM-Graphite system,3~4.3V, 0.5C, 50kg preload;

Result analysis: It can quantitatively characterize the difference of stress distribution on the surface of the cell, provide a deeper perspective for the stress analysis of the cell, and help technicians analyze the stress distribution in the cell, explore the causes of failure of the cell and develop a safer and more reliable cell.

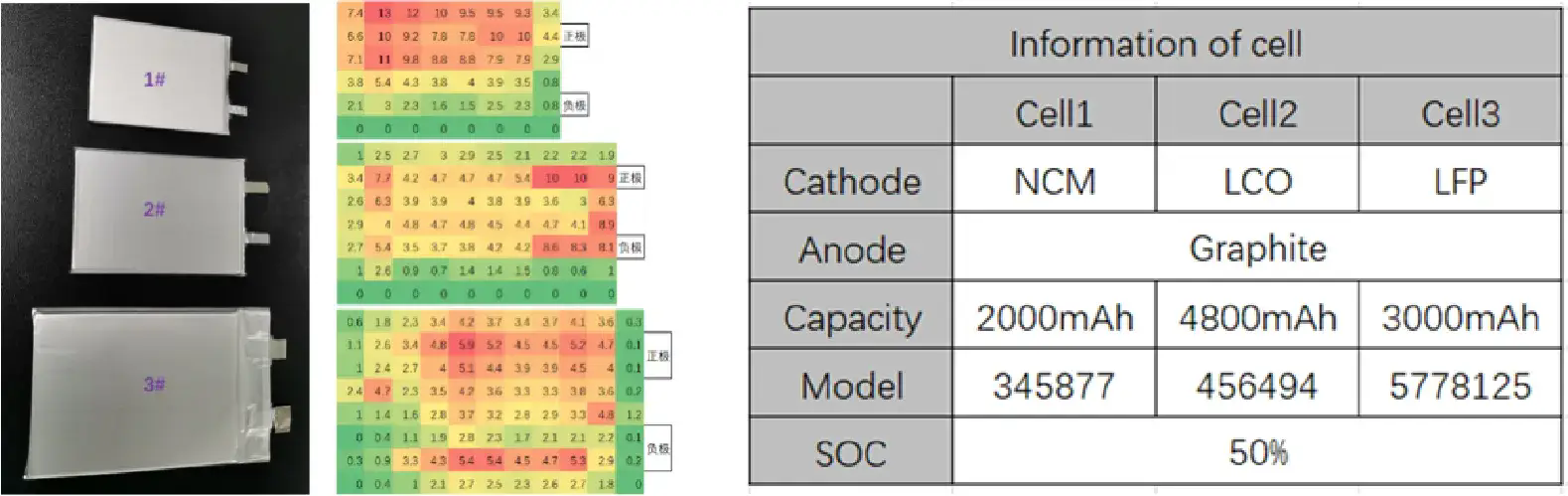

Case 2. Surface flatness test of fresh cell





Result analysis: there is a certain correlation between the cell process design and the cell pressure distribution(flatness). Technicians can develop appropriate distribution standards through the pressure distribution system to monitor the batch stability of the delivered cells.

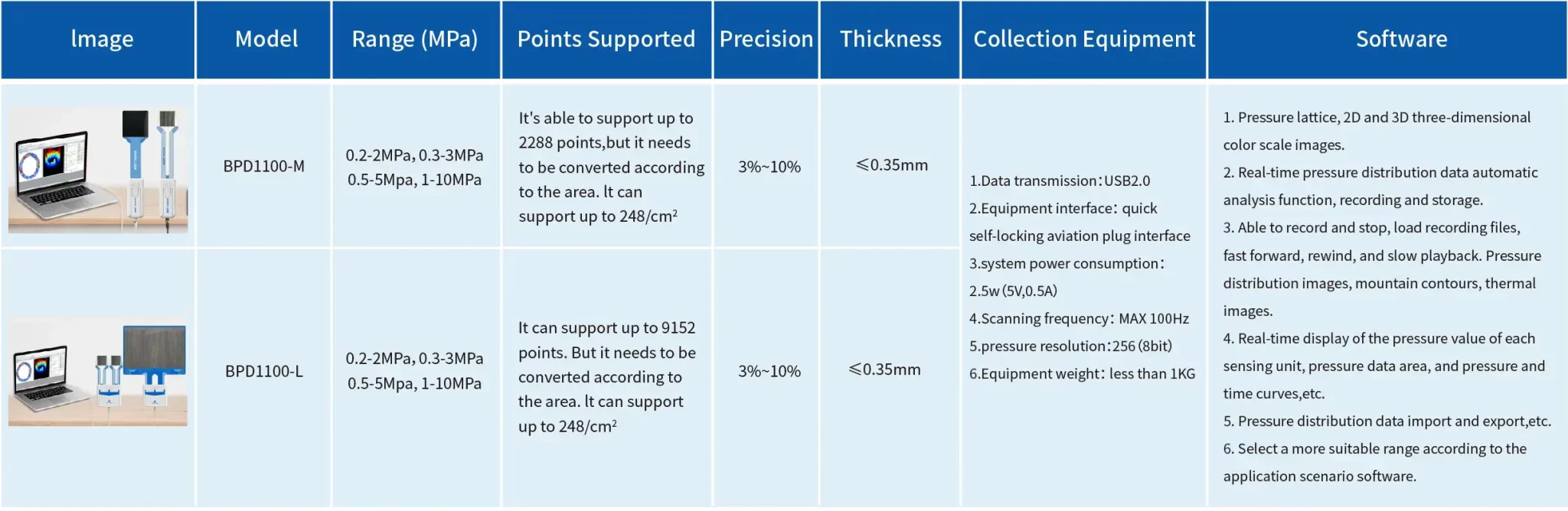

Specifications












PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME: 15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
