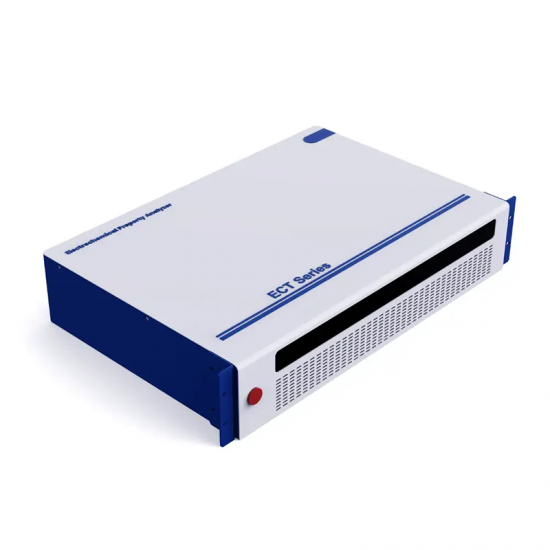

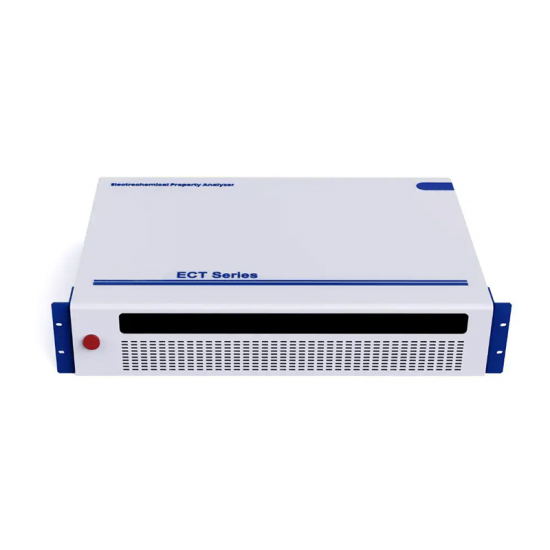

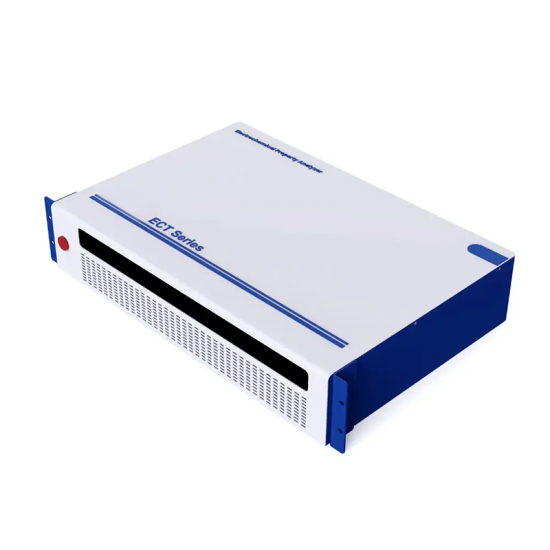

Louis@lithmachine.comBattery Cycler Electrochemical Analyzer ECT Series
Characteristic
1. Provides accurate benchmark data for lifespan prediction, inventory efficiency, self-discharge, and micro-reaction testing, with voltage and current precision of 0.01%.
2. Supports a wide range of cell types, capacitor materials, half-cell, three-electrode, coin cell, and small-capacity testing.
7. Private cloud platform and cloud server backup ensure data security and confidentiality.

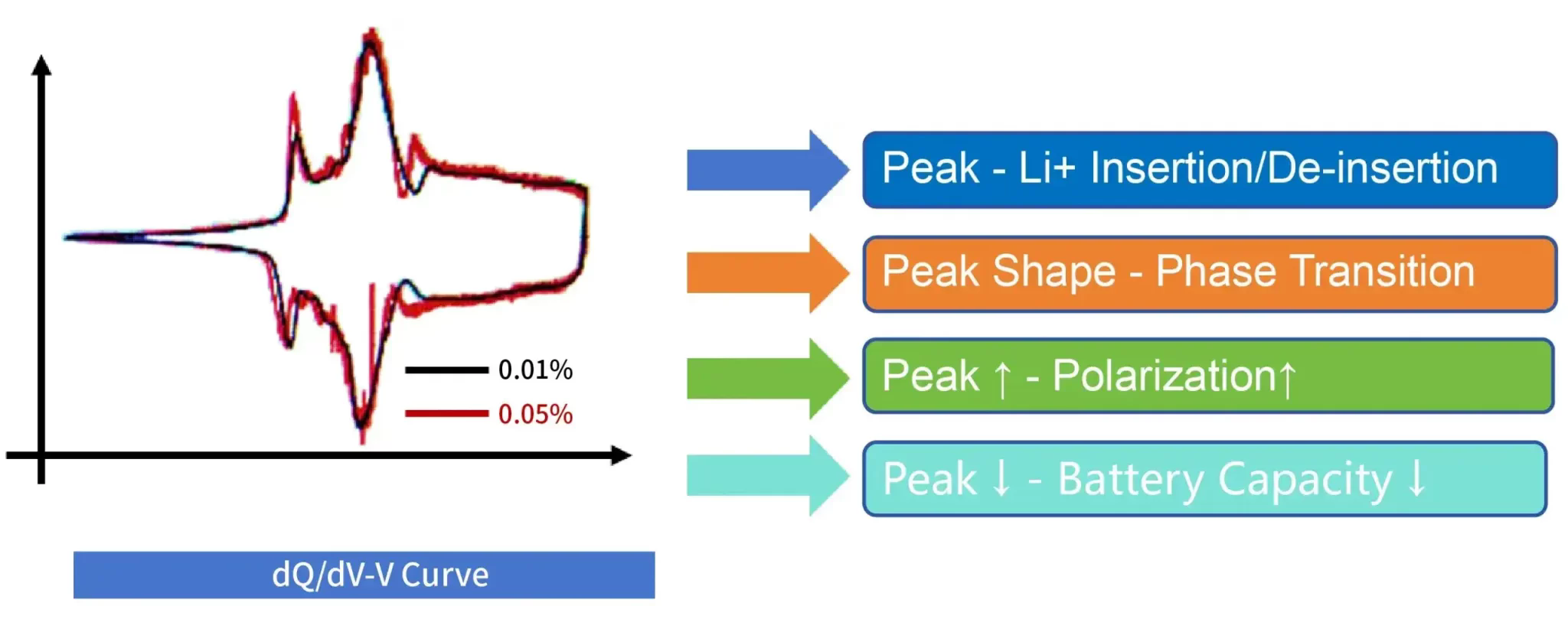

1. dQ/dV Analysis
2. Accurate DCIR
8. Cell Cycle Impedance Analysis
Description
1. 0.01% High-Precision Current & Voltage Testing Electrochemical Analyzer
The battery cycler’s 0.01% testing accuracy can precisely measure the specific capacity of new materials and detect subtle side reactions during the initial stages of battery cycling, This allows for a comprehensive performance evaluation and lifetime prediction of the battery in a short period.
2. Innovative Solutions of LITH
1) Provides accurate benchmark data for lifespan prediction, inventory efficiency, self-discharge, and micro-reaction testing, with voltage and current precision of 0.01%.
2) Supports a wide range of cell types, capacitor materials, half-cell, three-electrode, coin cell, and small-capacity testing.
3) Triple protection (software, hardware, firmware) ensures safe operation for both equipment and samples.
4) Supports electrochemical testing (GITT, PITT, CA, CP) with microampere-level current control.
5) Flexible auxiliary channel integration for temperature control, surface temperature monitoring, three-electrode setups, and pressure detection.
6) Online calibration and independent operation of channels without interference.
7) Private cloud platform and cloud server backup ensure data security and confidentiality.

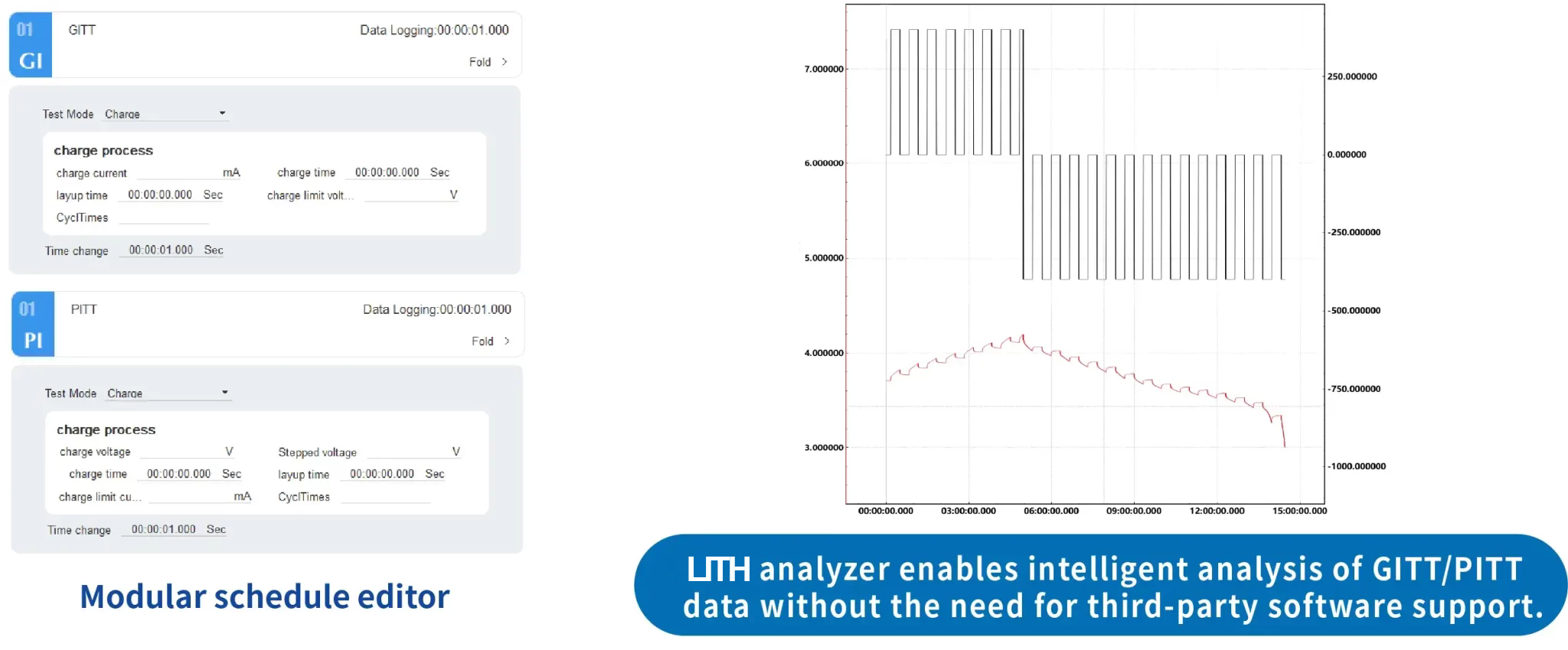

3. GITT/PITT Test

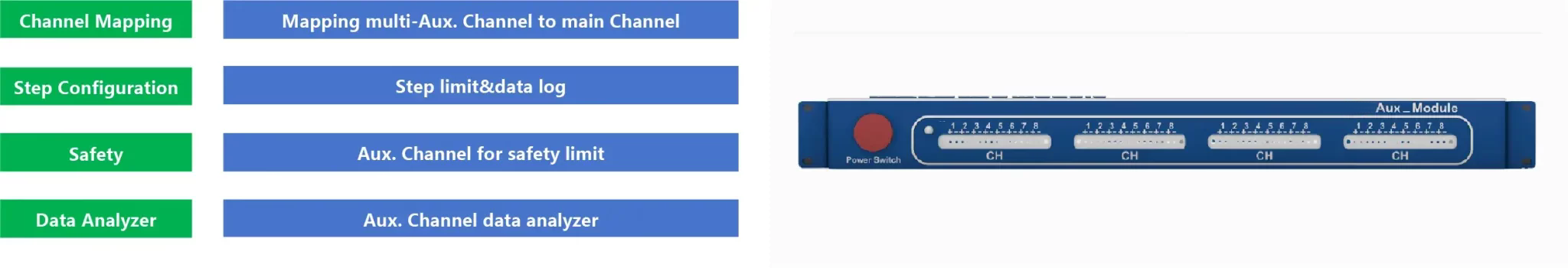

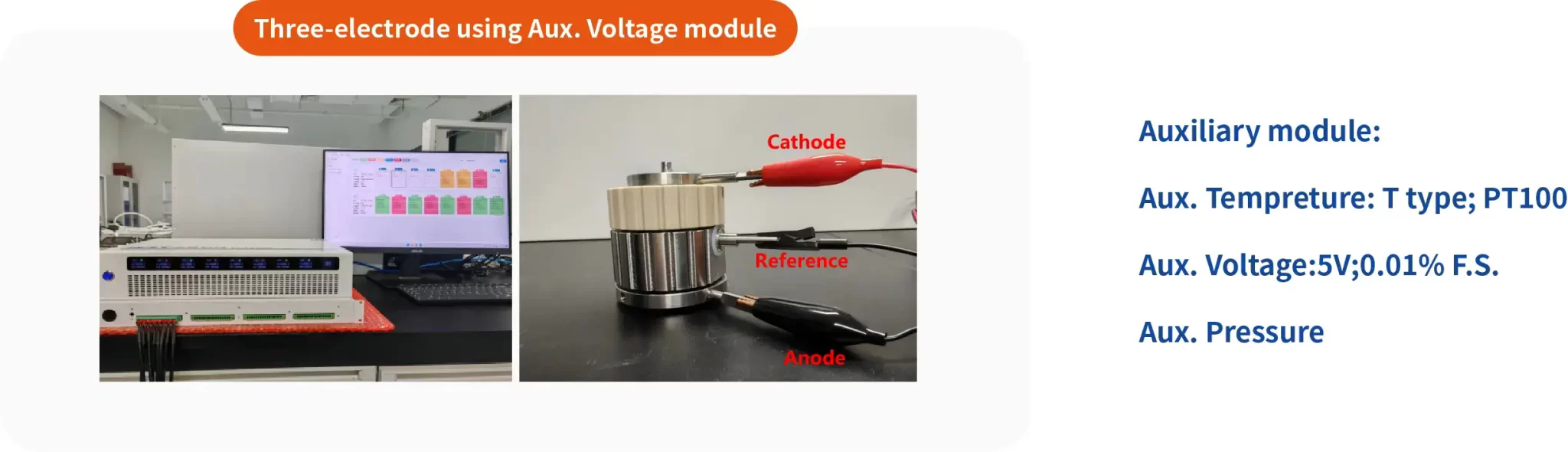

4. Auxiliary Channel

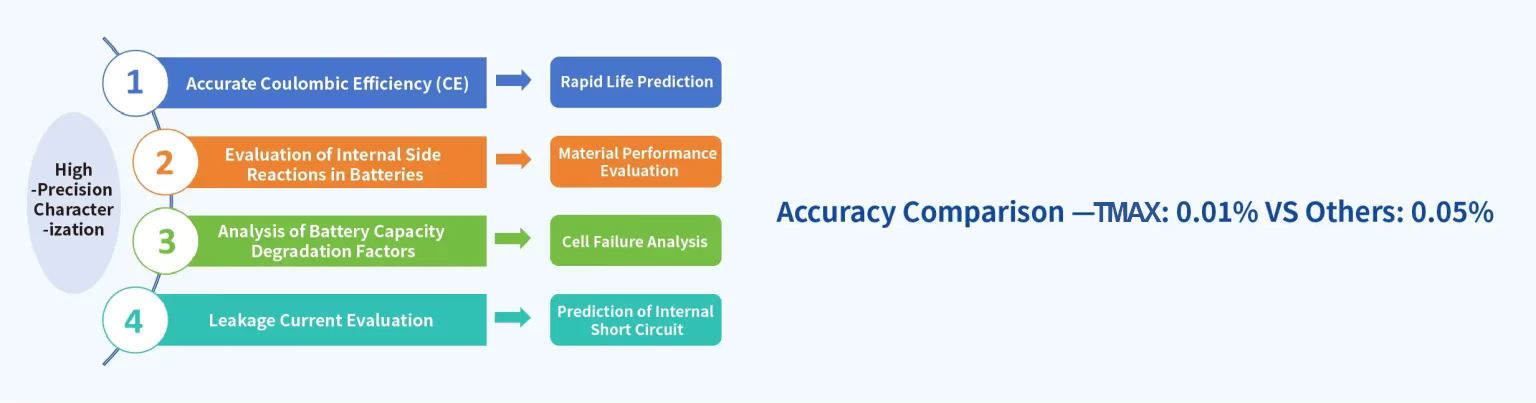

Application Cases

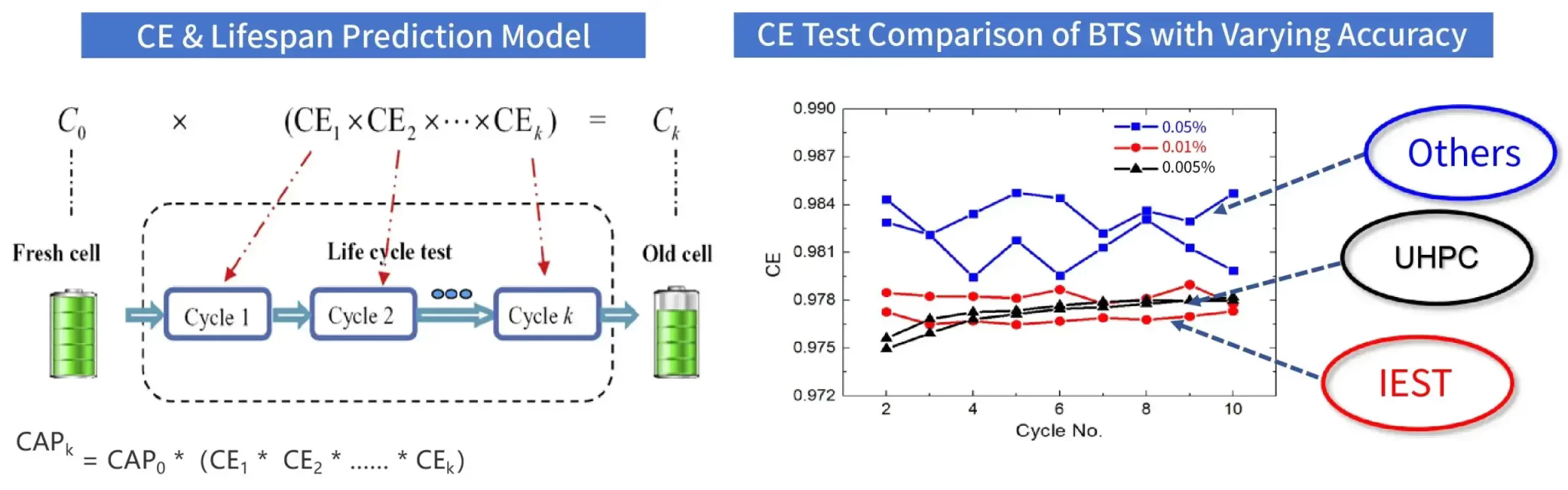

Case 1: Precise CE & Lifespan Prediction
For a 100Ah battery:
With an average CE test accuracy of 99.95%, after 500 cycles,CAPk=100*0.9995 500 =77.88Ah
With an average CE test accuracy of 99.955%, after 500 cycles, CAPk= 100*0.99955 500=79.85Ah
The difference is 1.97Ah, meaning the model accuracy differs by 1.97%!
1) High-precision CE testing allows for early performance assessment, enabling rapid battery lifespan prediction!
2) Lifespan prediction requires accuracy within 0.1% and noise

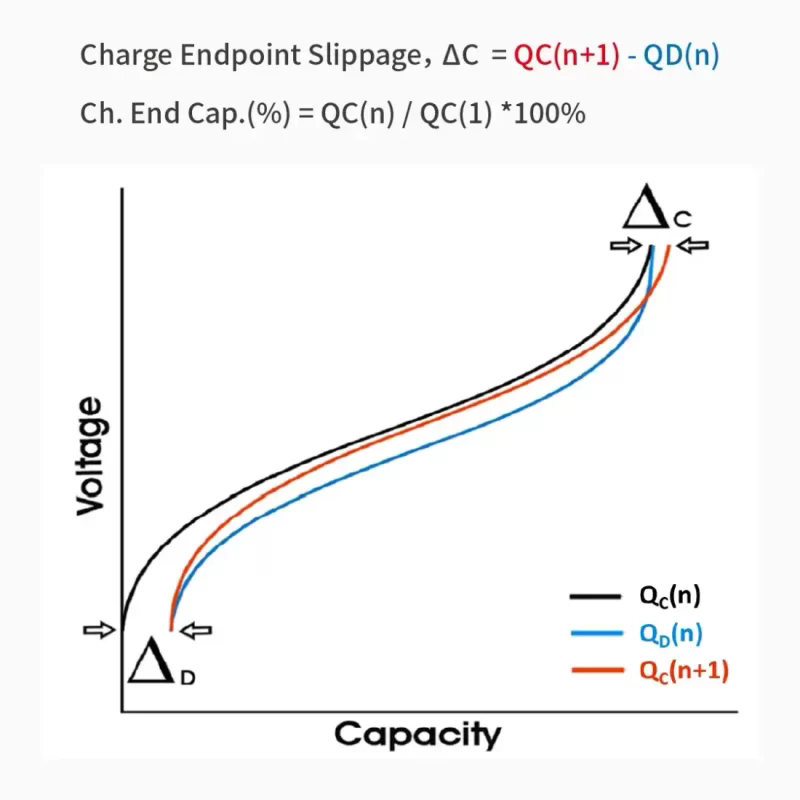

Case 2: Side Reaction & Material Evaluation
* ΔC or Ch. End Cap measurement requires high-precision charge-discharge equipment. Low accuracy will lead to inaccurate results.
Case 3: Battery Capacity Decay Factor Analysis
* High-precision testers ensure smooth curves and capture small phase change peaks!

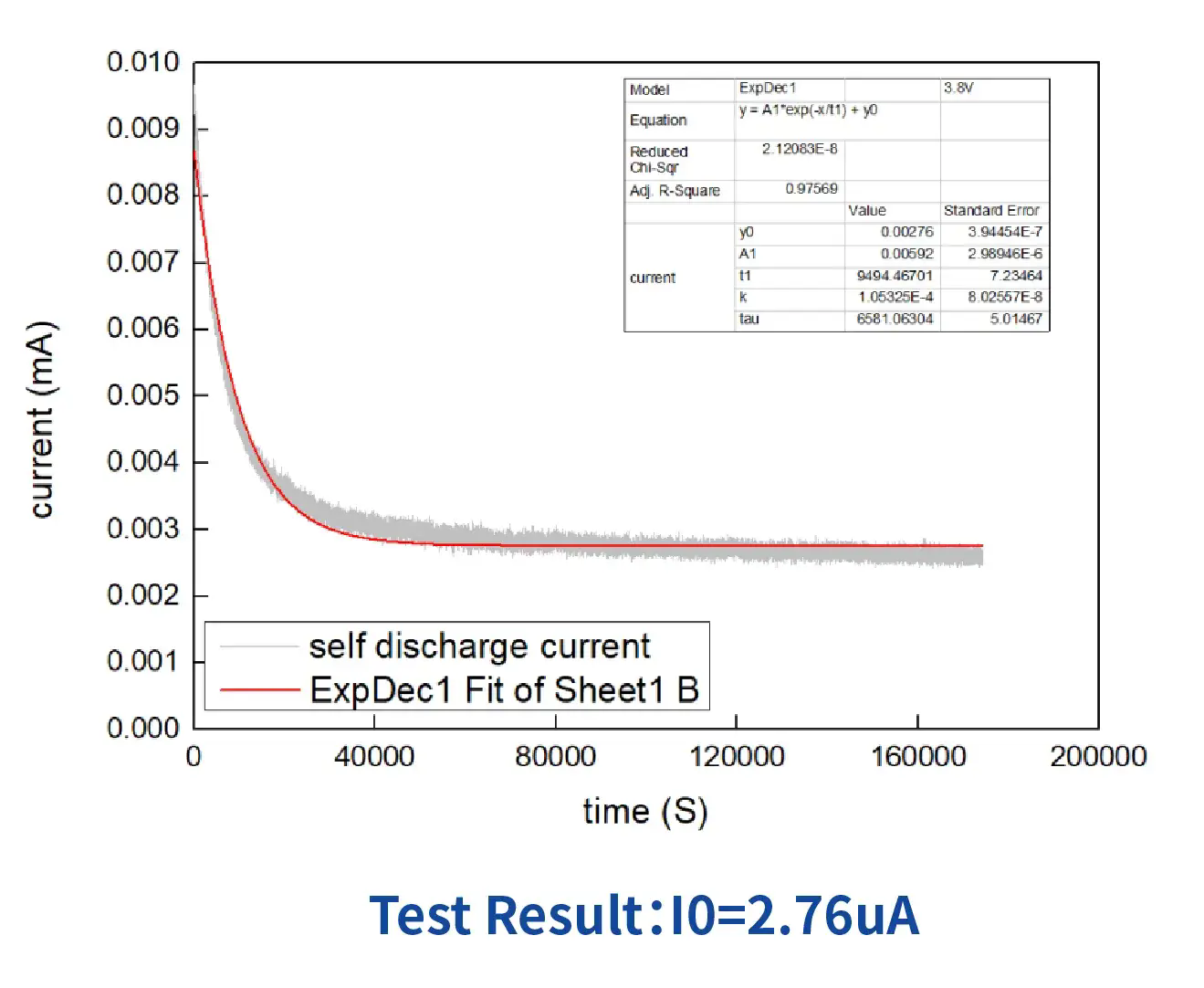

Case 4: Leakage Current
Charge to the target voltage, stabilize under constant voltage, and assess leakage current by the zero-current difference.
Test Plan:
1. Button Cell:
Electrodes: Ternary(фl4mm)vs. Lithium(ф20mm)
Capacity: 2mAh
Equipment: ECT6008-5V10mA
2. Test Process:
Constant current, constant voltage charging: 0.8mA,3.8V, for 72 hours.
* High-precision testers ensure accurate leakage current measurement.
Specifications
