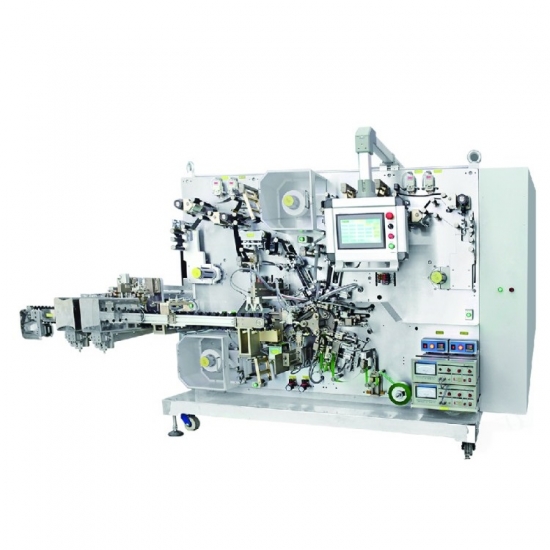

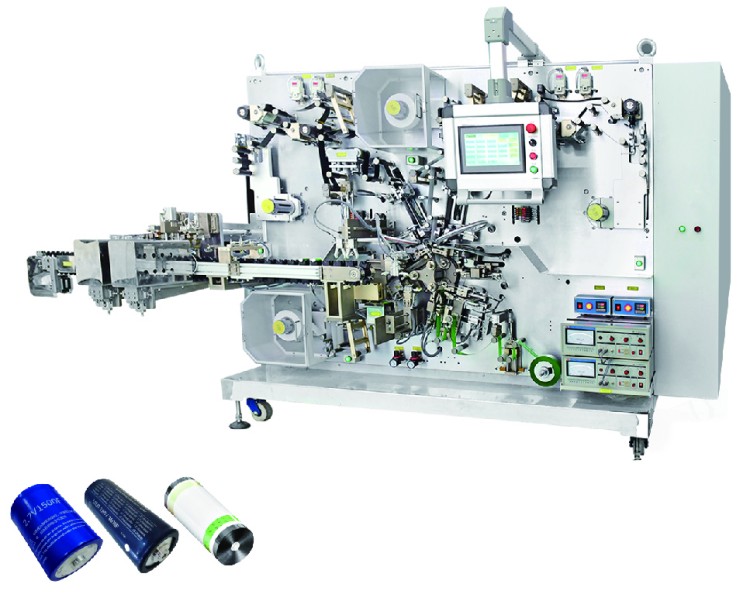

Louis@lithmachine.comAutomatic Winding Machine For Super Capacitor and Cylindrical Battery
This cylindrical battery cells automatic winding machine is equipped with manual feeding with cathode and anode electrode sheet, separator, and tapes. After completion the feeding, the cathode and anode electrode sheet, separator, tapes which used after winding, and protective tapes (protect the cell) are automatic winding according to predetermined product and process requirements. Detection, automatic tension control, automatic deviation correction, short circuit test and other functions. The equipment has a stable and reliable working state and process guarantee.
Process flow：
1. Separator feeding
2. Tape (tape which used after winding) and tape (protect the cell) feeding
3. Cathode and anode electrode feeding
4. Cathode and anode foil detection

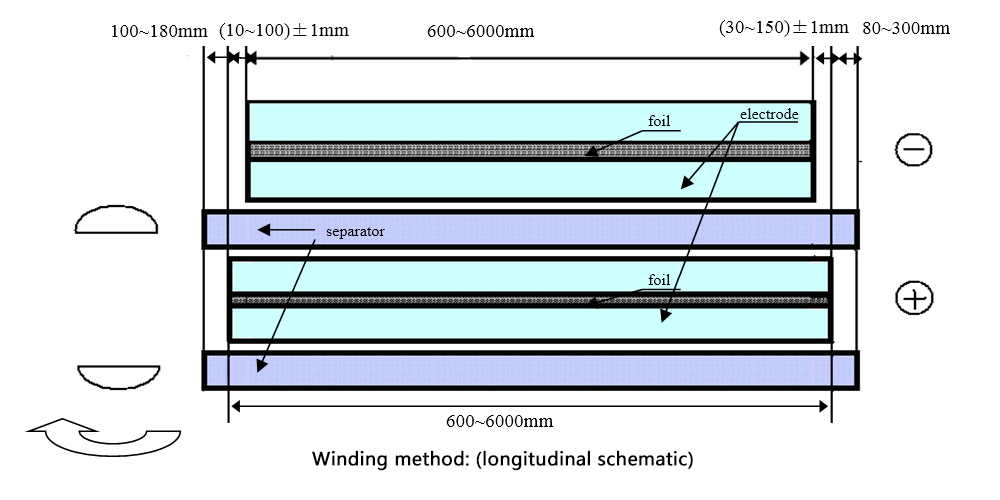

5. Electrode (whole roll electrode) winding
6. Length and diameter control

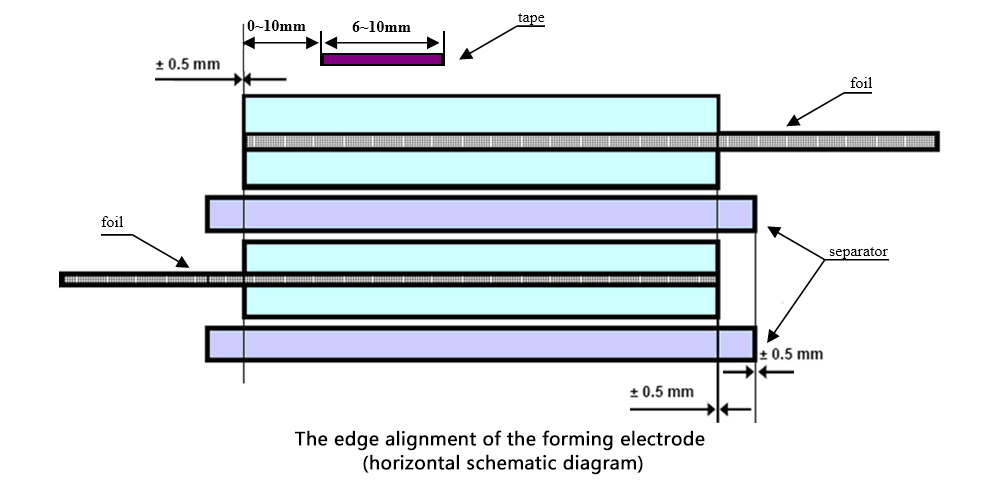

7. Paste tape (tape which used after winding) and protective tape (protect the battery cell)
8. Short circuit test
9. Judgment of quality products
|
Material |
Feeding method |
Single pieces material length（mm） |
Material Width(mm) |
Material thickness(μm) |
Maximum outer diameter(mm) |
Inside diameter（mm） |
||
|
Size range |
Size range |
Tolerance |
Size range |
Tolerance |
||||
|
Cathode electrode |
Coil material |
1000～6000 |
80-160 |
±0.1 |
100~320 |
±10 |
400 |
75.8 |
|
Anode electrode |
Coil material |
1000～6000 |
80-160 |
±0.1 |
100~320 |
±10 |
400 |
75.8 |
|
Separator |
Coil material |
80－160 |
±0.1 |
16~50 |
±4 |
350 |
75.8 |
|
Equipment working conditions:
1. Power supply: AC380V±10% /50Hz, 10KW, voltage fluctuation range: ±10%；
2. Compressed air：0.45－0.6Mpa； 100L/Min
3. Environment temperature：20－35℃；
4. Relative humidity：30－55％HR；
5. No corrosive gas, liquid, explosive gas on site,
6. Equipment dimensions and weight: 2500L X 1400W X 2000H (mm); Weight: 3000 Kg
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
