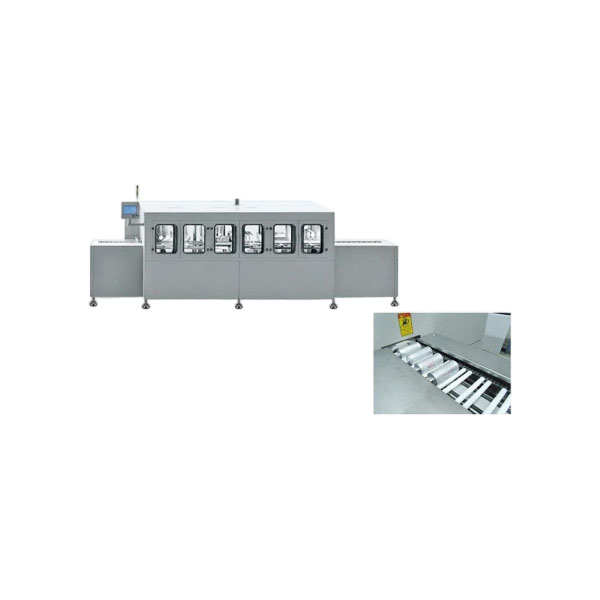

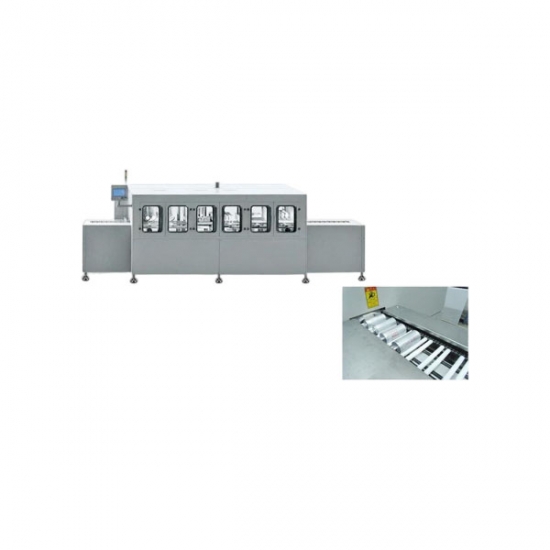

Louis@lithmachine.comAutomatic Ultrasonic Cleaning & Air-Drying Machine for Supercapacitors
Application
The Automatic Ultrasonic Cleaning Machine is an all-in-one automated cleaning system designed specifically for dry-cell batteries and supercapacitors. It excels in production lines where quick, comprehensive cleaning is a critical requirement.
Key Features
- In-line brush cleaning technology is employed to effectively dislodge and remove debris from both the surfaces and end faces of cells.
- Equipped with a array of high-velocity air nozzles that rapidly blow away residual water, significantly enhancing drying efficiency.
- Requires no chemical cleaning agents—operates solely with ordinary water, simplifying maintenance and reducing costs.
- Controlled by a PLC system, featuring real-time fault alarms, an energy-saving auto-shutdown mode, and full safety protocols for stable, worry-free operation.
- Accommodates batteries or capacitors with lengths ranging from 50–180 mm, offering flexible adjustment and straightforward operation.
- Engineered for high-throughput, in-line cleaning and drying processes to match production line speeds.
- Integrates a low-energy tubular hot-air heater, optimizing power consumption. - Utilizes a recirculating water system with overflow and filtration capabilities, ensuring efficient water usage and reducing waste.
Parameter |
Specification |
Applicable Products |
Cylindrical dry-cell batteries, supercapacitors (customizable) |
Conveyor Speed |
0.5–1 m/min (adjustable) |
Output Capacity |
> 6 pcs/min |
Power Supply |
380V ±10%, 50Hz, three-phase five-wire |
Cleaning Diameter |
Ø60 mm |
Total Power Consumption |
Approx. 55 kW |
Compressed Air Pressure |
0.4 MPa |
Noise Level |
≤ 85 dB (at 1.5 m from machine) |
Machine Weight |
Approx. 2 t |
Machine Dimensions (L×W×H) |
Approx. 5000 × 1700 × 2000 mm (subject to design) |
Environmental Requirements |
Temp: 5–35 °C; Relative Humidity: ≤ 80% |
