ItemNo :
Lith-KJ8MOQ :
1Compliance:
CE CertifiedWarranty:
1 yearDelivery Time:
5 days

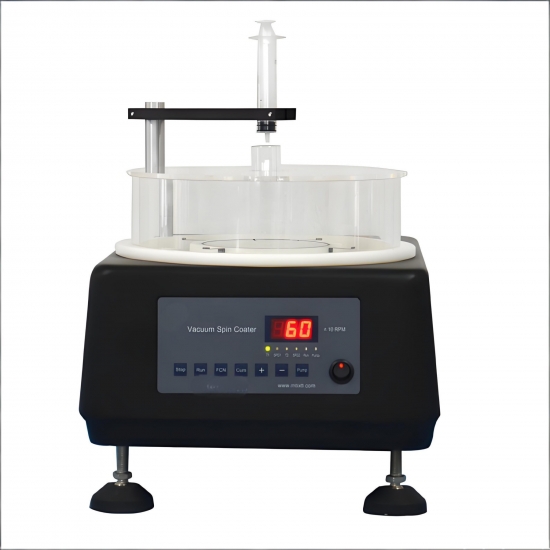

Affordable Mini Programmable Vacuum Chuck Spin Coater Price for 8" Wafers with 500-6000 RPM
Product Introduction
The Lith-KJ8 Vacuum Spin Coater features simple operation, easy cleaning, and a compact design. It is primarily used in laboratories of universities and research institutes for thin-film deposition. The Lith-KJ8 secures samples on the chuck using vacuum adsorption and employs a two-stage speed control program. First, the coater operates within a specified speed range while dispensing the coating material for a set duration. After dispensing, the coater accelerates to the second-stage maximum speed for spin coating, with a predefined coating time. The machine stops automatically once the process is complete. The Lith-KJ8 ensures uniform coating of high-viscosity colloids and solutions on sample surfaces through high-speed rotation.
Key Features
· Two-stage programmable speed control.
· Vacuum adsorption for secure and easy sample fixation.
· Cast aluminum structure ensures stable operation and low noise.
Main Parameters
1. Power Interface: Fused power socket—AC220/110V, 50/60Hz; fuse specification: 10A, φ5 × 20mm.
2. Total Power: ≤150W.
3. Sample Chuck (Vacuum Chuck + Retaining Ring):
o φ153mm polypropylene vacuum chuck (1 pc).
o 6" (φ153mm) sample retaining ring (1 set).
o 8" (φ203.5mm) sample retaining ring (1 set).
o Compatible with wafers up to 8" diameter or 5" × 5" square.
4. Rotation Direction: Counterclockwise, with two operational stages.
5. Coating Speed:
o SPD1: 500–6000 RPM (effective).
o SPD2: 500–6000 RPM (effective).
6. Coating Time:
o T1: 1–600s (effective).
o T2: 1–600s (effective).
7. Speed Stability: ±1%.
8. Control Method: PCB microcontroller, button control, digital tube display.
9. Product Specifications:
o Dimensions: 500 × 350 × 400mm.
o Weight: 30kg.
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
