9 Liters Tank, 10L / min Flow Forced Air Cold Recirculating Water Chiller

ItemNo :
LITH-KJ3000
MOQ :
1
Port :
Xiamen Port
Warranty:
2years
Delivery Time:
5 days
Email :
Louis@lithmachine.com

Contact Now

Product Details

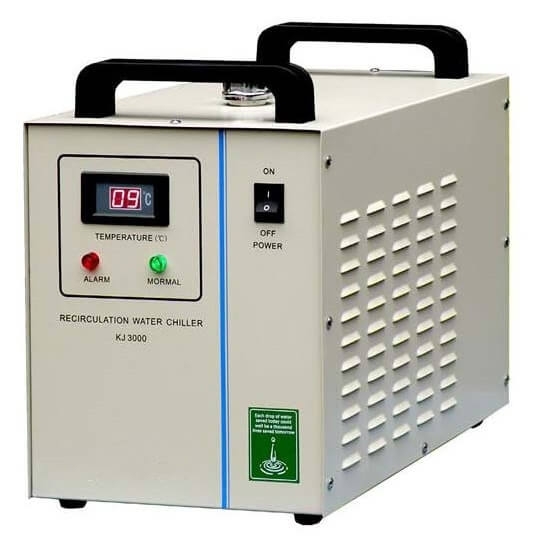

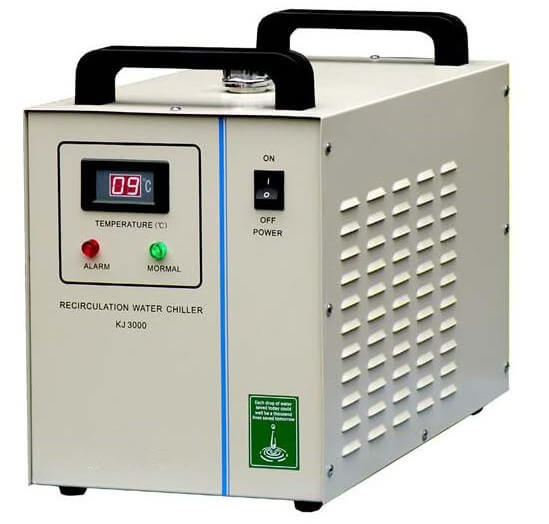

9 Liters Tank, 10L / min Flow Forced Air Cold Recirculating Water Chiller

Lith-KJ3000 is a CE certified Forced air cold Water-cooled Chiller that provides a clean, environmentally friendly and reliable source of temperature-controlled fluid for closed loop systems up to 10L/min. It eliminates scale buildup, sewerage cost, and tap water cooling expenses. This 9 Liters chiller provides high cooling capacity via air cold radiator at low cost and has a convenient digital reading and setting display.

Technical Parameter

Power Supply AC 100-120V or AC 208-240V can be selected in options bar (50/60Hz).

Current 0.45A

Cooling Method & Capacity

Cooling via radiator and cooling fan
Cooling Capacity: 50W/°C via
Note: No target tempertaure. Temperature cannot go below room temperature due to the cooling method.

Fixed high temperature alarm: 60°C

Temperature

Digital Current Temperature display
Temperature accuracy: ± 1 °C

Built in temperature alarm

Max. Pump Head 10 meters (14psi)

Pipe connectors

Φ 12mm PTC connector

8mm I.D, 12mm O.D. polyurethane tube is included

Water Flow Rate 10 Liters / minute

Water Tank

9 Liters made of stainless steel

Water chiller should not be connected to a system with the capacity more than the tank's capacity itself.

Use coolant instead of water for longer service life.

Do not use deionized water as the cooling agent, DI water may cause the copper pipe to corrode, mainly pitting, and leak over time.

Protection Protected from overflow alarm

Overall dimension 47 X 27 X 37 cm (L x W x H)

Shipping Dimension 40" x 22" x 23"

Shipping Weight 50 lbs

Warranty
One year limited warranty with lifetime support

Compliance

CE approval

Application Notes

This chiller is using thermolysis cooling method. Thus, the chiller can't cool the temperature lower than ambient temperature. (e.g the room temperature is 14 °C. The minimum temperature cooled by the chiller is 14 °C). Please consider the KJ 5000 water chiller if you want the temperature to be lower than ambient temperature.

Must use
Rust Protection coolants to prevent rust and corrosion. The use of tap water is prohibited.

Please connect the chiller water outlet to the equipment water inlet, and the chiller water inlet to the equipment outlet. Otherwise, the water flow sensor on the equipment may fail to work due to wrong water flow direction

PACKAGE:

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damaged part for you for free.

DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
