ItemNo :
LITH-ZP-27DMOQ :
1Compliance:
Warranty:
2yearsDelivery Time:
5 days
Introduction

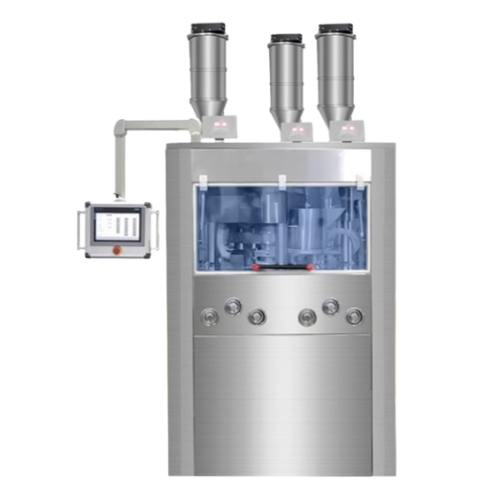

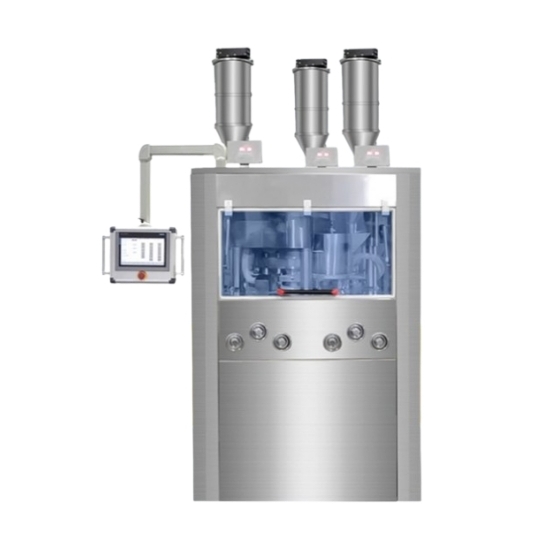

ZP-27/73D is a sixth-generation automatic rotary tablet press that continuously presses powders and granules into three-color tablets. It is specially designed for the production of three-color tablets. It has high pressure and is suitable for materials that are difficult to press and corrosive materials. It meets cGMP standards.
Main Features
Meet cGMP requirements. The entire shell is made of stainless steel, and the tablet pressing chamber is isolated from the external environment by organic glass, with good sealing performance. All parts of the tablet pressing chamber that come into contact with the drug meet the requirements of "non-toxic, odorless, and anti-corrosion".
This series of tablet presses is equipped with a pressure overload protection device. Once overloaded, it will automatically shut down to avoid equipment damage.
The transmission system is independently modularized and set below the main body of the machine, effectively preventing trace debris generated by the friction of the machine from contaminating the drug.
Digital display adjustment: filling depth and pressure adjustment are digitalized, and the adjustment is more precise and convenient.
Technical parameters
|
Model |
ZP-27D |
ZP-45D |
ZP-73D |
|
Dies No. |
25 |
45 |
73 |
|
Max. Capacity (pcs/h) |
87480 |
202500 |
395000 |
|
Max. Pressure (KN) |
150 |
80 |
60 |
|
Max. Dia. Of tablet (mm) |
50 |
20 |
11 |
|
Max. Depth of filling (mm) |
18 |
18 |
15 |
|
Max. Thickness of tablet (mm) |
8 |
6 |
6 |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
