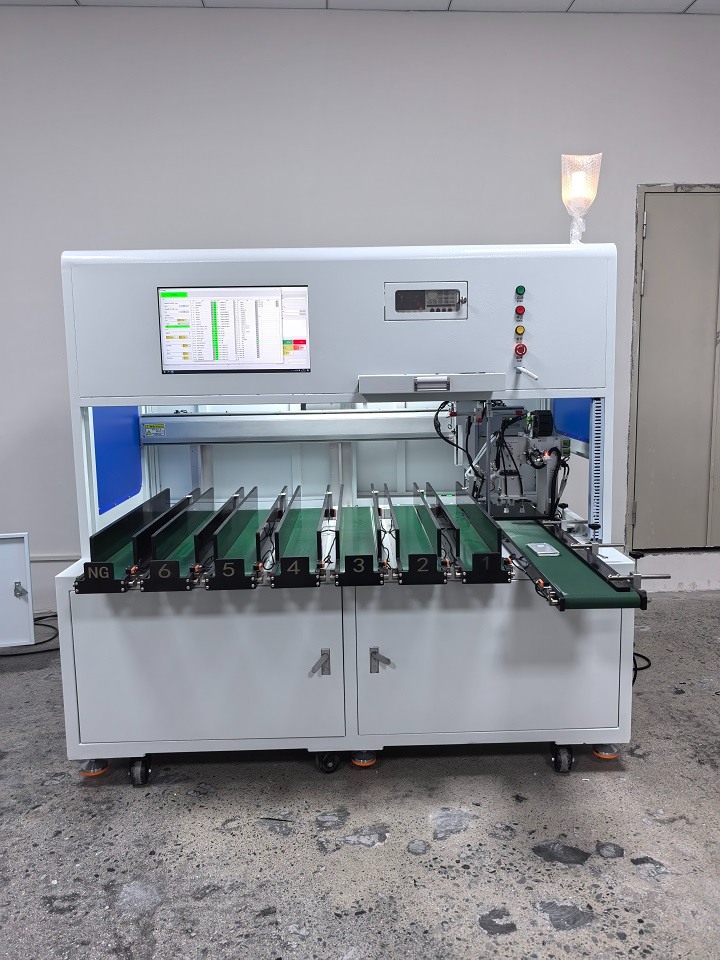

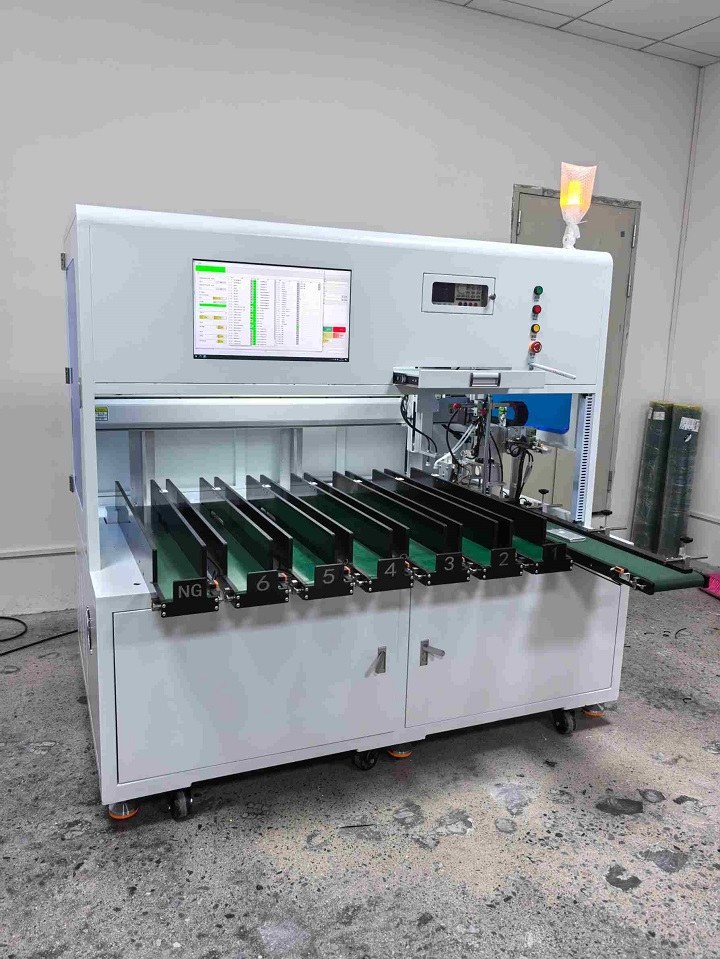

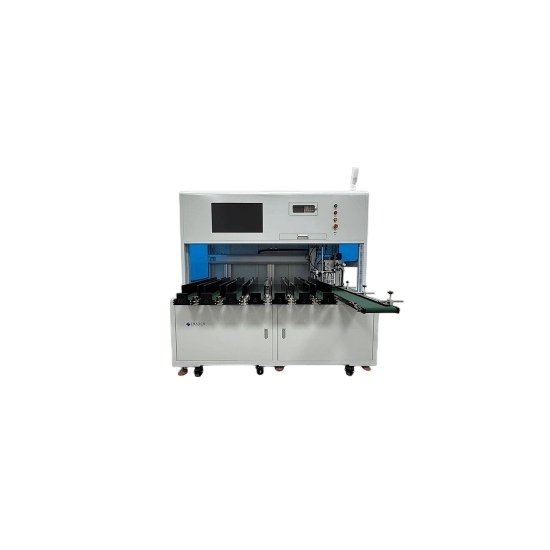

Xiamen7-Channel Battery Cell Sorting Machine for Pouch Cells
Functional Overview
The Automatic Polymer Lithium Battery Sorting Machine is a high-efficiency automated equipment specially designed for the post-production sorting process of polymer lithium batteries. It is particularly suitable for power batteries, 3C digital batteries, and energy storage batteries.
The system meets the precision grouping requirements of new energy battery packs and complies with international safety standards. Its intelligent automation design promotes the transition of lithium battery manufacturing toward Industry 4.0, becoming a key solution for improving the core competitiveness of battery manufacturers.
Main Performance Parameters
1) Applicable Battery Type: Polymer lithium battery
2) Compatible Size Range: Length 50–170 mm, Width 20–100 mm, Height 4–20 mm
3) Control System: PLC programmable control
4) Integrated Functions: Fully automatic loading, testing, code scanning, and sorting process, reducing manual intervention
5) MES Interface: Real-time recording of QR code and test data, with SPC analysis report generation
6) Sorting Speed: Up to 1000 PCS/hour per unit — more than three times the efficiency of manual sorting
Equipment Environmental Requirements
|
Item |
Parameter |
|
Ambient Temperature |
5°C–35°C |
|
Humidity |
20%–90% |
|
Air Supply Pressure |
0.5–0.6 MPa |
|
Power Supply |
220V, 50Hz/60Hz |
|
Floor Load Capacity |
≤200 kg/m² |
|
Grounding Type |
Direct grounding |
|
Installation Site |
Clean, level, no vibration or electromagnetic interference |
|
Noise Level |
≤80 dB |
Equipment Parameters
|
Item |
Specification |
|
Machine Dimensions |
L1800 × W1570 × H1750 mm |
|
Machine Weight |
Approx. 493 kg |
|
Machine Color |
Computer white (customizable) |
|
Total Power |
≤1.5 kW |

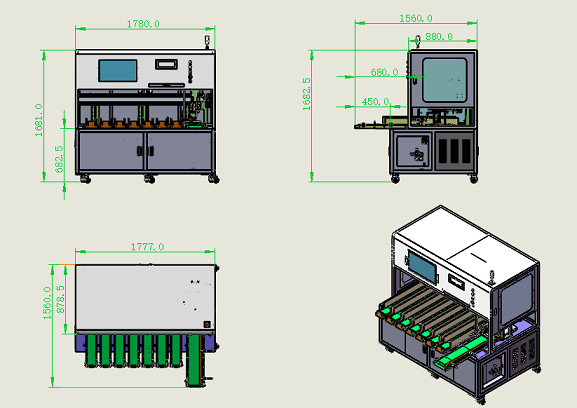

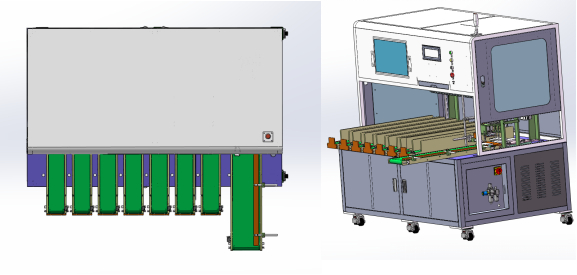

Machine appearance and dimensions
Mainframe length*width*height: L1800mm*W1570mm*H1750mm

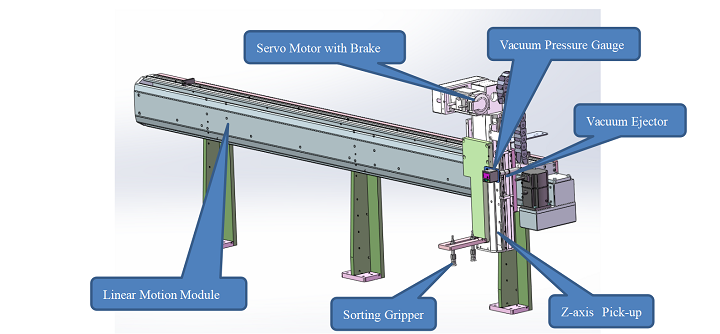

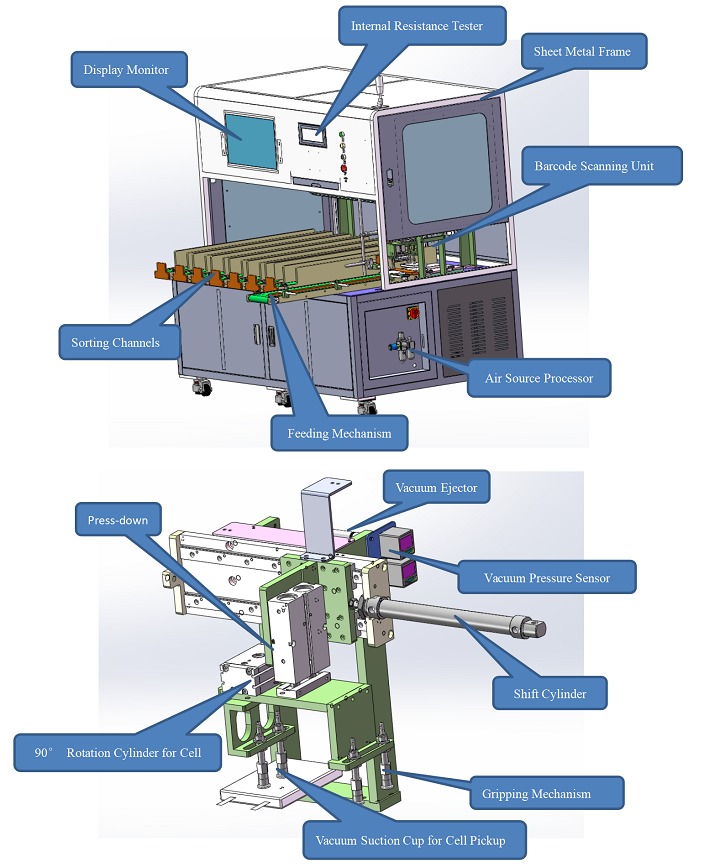

Machine Structure and Configuration
The sorting machine consists of a metal frame platform, pneumatic components, servo motors, sensors, PLC controller, and industrial control system.
Main Configuration Table
|
Category |
Component |
Brand |
Remarks |
|
Main Body |
Cabinet Frame |
LITH |
Metal base and aluminum profile upper frame |
|
Main Worktable |
LITH |
|
|
|
Electrical System |
Barcode Scanner |
Honeywell |
|
|
Industrial PC |
JIANO |
|
|
|
Servo Motor |
XINJIE |
|
|
|
PLC Controller |
XINJIE |
|
|
|
Display |
Philips / HKC |
|
|
|
Internal Resistance Tester |
HEPU |
|
|
|
Standard Components |
XingChen / Deke |
|
