ItemNo :
LITH-QM-50AMOQ :
1Warranty:
Two years limited warranty with lifetime technicalDelivery Time:

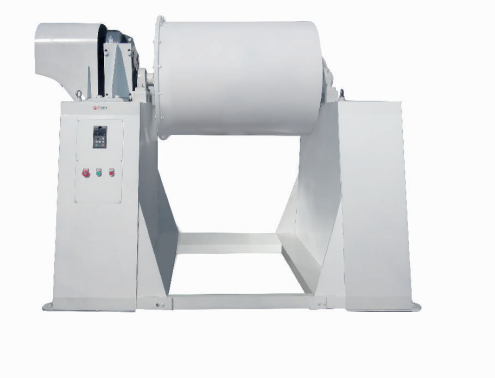

5 days50L Roll Ball Mill Machine
Optional lining materials include nylon, stainless steel, polyurethane, alumina ceramic, and zirconia ceramic. Frequency conversion speed regulation mechanisms can be optionally equipped, along with automatic discharge systems and protective sleeves for convenient operation, clean discharge, and dust-free production. Widely applicable in industries such as ceramic powders, ferrites, glass raw materials, metal powders, mineral processing machinery, alloys, coal, and coke production.
During operation of the ball mill, the grinding media and materials inside the cylinder are lifted to a certain height along with the cylinder's rotation. Due to gravitational force, the materials detach from the cylinder wall and fall along a parabolic trajectory. The materials are crushed under the impact of the grinding media, as well as the friction and shearing effects generated by the rolling and sliding of the grinding media.
2. Product Parameter：
|
Model |
QM-50A |
Roll Volume |
50L |
|
Tank Parameters |
Approximately Φ377*500*6mm |
charging volume |
16.6L |
|
Outter Dimension （mm） |
Approximately 1350*620*1100 |
loading weight |
16.6* Loose bulk density of materials |
|
Weight |
Approximately 233 kg |
roll mill speed |
10~50 minutes ±2 (variable frequency speed control) |
|
Feed Particle Size |
≤10mm |
voltage |
220V 50HZ |
|
Feed/Discharge Port |
¢149mm |
bleeder valve |
1 inch |
|
Discharge Particle Size |
≤1000 mesh (subject to material conditions and process specifications) |
power of motor |
1.5KW |
|
The height of the discharge outlet above the ground |
Approximately 360 mm |
Ball separation material |
304 stainless steel material |
|
Grinding Method |
wet-milling |
Tank material |
Polytetrafluoroethylene lining for 304 stainless steel drums |
|
Material Receiving Cover |
/ |
cooling equipment |
/ |
|
Driving Mode |
Reducer + Coupling |
debug mode |
touch screen |
3. Product Features:
1. The machine operates smoothly, with high efficiency and energy savings, low noise levels, and no pollution.
2. It can perform dry and wet grinding processes, handle materials of various hardness levels, and achieve both coarse and fine grinding as well as material mixing applications.
3. Equipped with an automatic unloading mechanism, the material and balls can be automatically separated, ensuring extremely convenient discharge.
4. The use of protective sleeves ensures high material purity and low contamination.
5. Wear-resistant and high grinding efficiency;
6. Inner linings may be selected from alloy steel, stainless steel, high-wear-resistant polyurethane, corundum ceramic, or zirconia, with models ranging from 20 to 2500L depending on the user's production capacity.
4. Precautions:
1.The device must be placed on a flat and firm surface;
2.Maintain dryness in the electrical components to prevent safety incidents and equipment damage;
3.The equipment must not operate under faulty conditions, and shutdown for inspection is mandatory upon occurrence of abnormalities.
4.Pay attention to equipment maintenance, regularly inspect the oil level in the equipment gearbox, and maintain equipment cleanliness.
Laboratory small roller ball mill, powder grinding roll mill machine
