Introduction

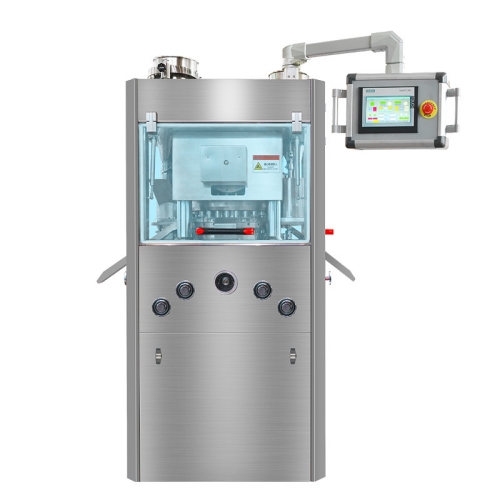

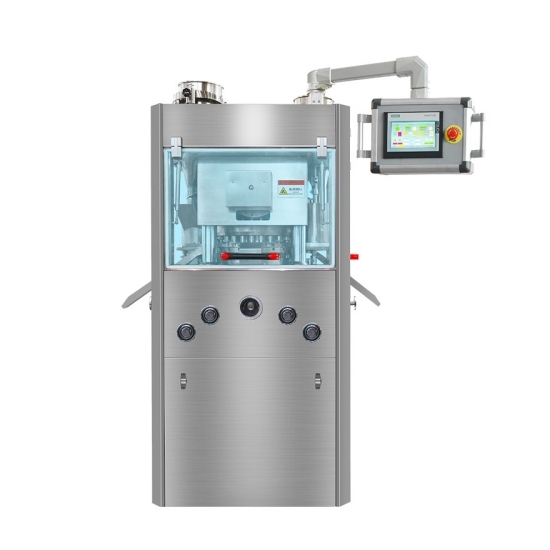

ZP15E tablet press machine is the latest large-scale tablet press machine developed by our company. It is an automatic rotary tablet press machine that can continuously press powder and granules into tablets. The maximum tablet diameter is 50mm, and the maximum tablet thickness is 25mm. Equipped with pressure protection device. It is the first choice for mass production in pharmaceutical, chemical, electronic,food and other industries. Comply with cGMP production requirements.
Main Features
Large output, high efficiency and high cost performance. The maximum tablet diameter is 50mm, the maximum tablet thickness is 25mm, the maximum pressure is 120kN, and the maximum output is 45,600 pcs/h.
Equipped with a pressure overload protection device, once overloaded, it will automatically stop to avoid equipment damage.
Equipped with double dust suction turntables, six suction ports up and down, good powder removal effect, and clean surface of the turntable.
Oil-lubricated transmission mechanism, low noise and good lubrication effect.
Stable structure. The machine is made of cast iron, which has good stability and will not be damaged after 10 years of use.
Technical parameters
|
Model |
ZP-15E |
ZP-19E |
|
Dies No. |
15 |
19 |
|
Max. Capacity (pcs/h) |
18000 |
45600 |
|
Max. Pressure (KN) |
120 |
100 |
|
Max. Dia. Of tablet (mm) |
50 |
40 |
|
Max. Depth of filling (mm) |
50 |
30 |
|
Max. Thickness of tablet (mm) |
25 |
15 |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
