ItemNo :
LITH-PP-600C-FMOQ :
1Warranty:
2yearsDelivery Time:
5 days
|

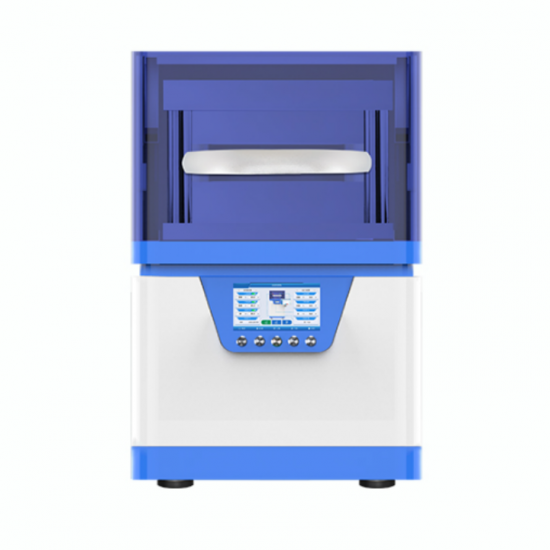

Instrument model |
PP-600C-F |
||
|
Heating Temperature Heating Power |
|
|
|
|
Pressure Range |
0.01-5.0 T |
||
|
Pressure Accuracy |
0.01 T |
||
|
Display Screen
|
7- inches Touch Screen |
||
|
Metal key/button |
Silver-plated contacts, with a service life of over 100,000 cycles |
||
|
Safety Protection |
Acrylic protective door (automatic power-off when opened)+emergencystop switch, dual protection for safer operation. |
||
|
Curved graph pattern |
It can display the operation curve graph for each time and supports downloading Excel files via USB drive.
|
||
|
Process Control |
Up to 18 program controls, including pressure, temperature, and water cooling, can all be controlled independently.
|
||
|
Water cooling for cooling |
Support manual activation of water cooling for cooling, and automatic rapid cooling can also be achieved in multiple program segments.
|
||
|
Speed Regulation |
The boosting speed can be adjusted, and the heating speed can also be regulated.
|
||
|
Remote Control |
A computer needs to be selected and equipped. It can perform functions such as data analysis, comparison, modification, and export.
|
||
|
Plate Size |
120 x 120 mm (m X n) |
||
|
Working Space |
130 x 55 mm |
||
|
Power Supply Power |
220V / 110V Customizable |
||
|
Product Dimensions/Weight |
350 x 350 x580 mm (L X W X H) /75kg |
||
|
Package Dimensions/Gross Weight |
725 x 620 x 890 mm (L X W X H) / 84kg |
||
|

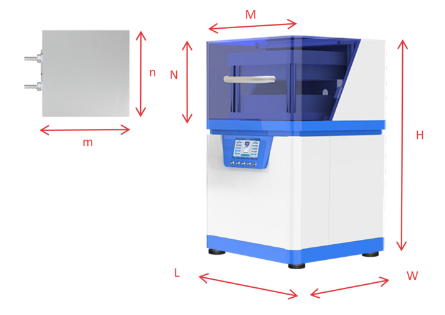

Diagram of hydraulic powder press size |
|
||
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
