ItemNo :
LITH-YST-25TMOQ :
1Compliance:
Warranty:
2yearsDelivery Time:
5 days
Introduction
YST series tablet press is our newest generation R&D result into the market, also it is one of the most advanced tablet forming machine. Compared with the common tablet press machine, its main advantages lies in:
1.Superior performance: It solved many difficulties in: forming, fling, wear-resistant, high strength production.
2.Easily operation: The whole machine can fully CNC operation, production debugging operated through PLC touch screen. It can cut the cumbersome process in great scope, and make the operation more simple.
3.Save the cost: Adopt high advanced YST series tablet press machine, it can save the electricity about 50%, and improve the capacity nearly 30% which compared under the same operating, conditions.

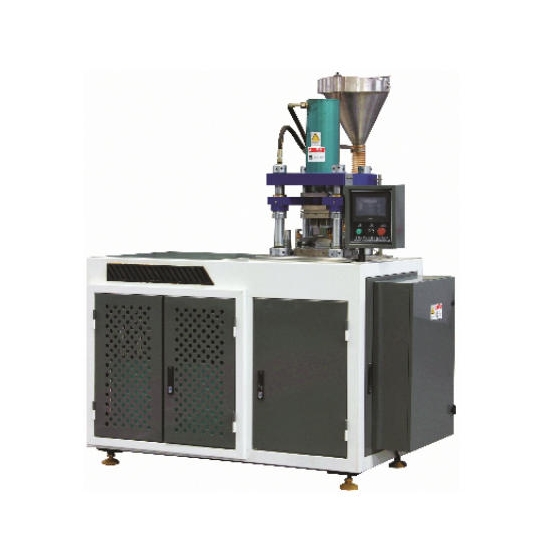

YST-25T tablet press is a large-scale (stainless steel type or powder-coated type) tablet press newly developed by our factory. It can press granular and powdered raw materials into various common and special-shaped tablets, and is suitable for pressing large-sized products with high density requirements.
Technical parameter
|
No |
Model |
YST-25T |
|
1 |
Work pressure |
25T, adjustable from 0 to 25 tons, capable of bidirectional tablet pressing. The pressure can be directly displayed on the oil gauge through the regulating valve, making the operation convenient and simple. |
|
2 |
Stroke |
The upper cylinder stroke is 150mm, and the lower cylinder stroke is 150mm. The stroke can be customized to be extended. |
|
3 |
Filling height |
According to the pressure required by the product, the maximum is 100mm. The height of the packing and the stroke of the oil cylinder can both be increased as per actual requirements. |
|
4 |
Tablet pressing description |
One mold for multiple pieces, according to the pressure required for the actual molding of the product |
|
5 |
Production capacity |
4 to 6 tablets per minute |
|
6 |
Motor power |
3KW,380V, German Siemens |
|
7 |
Hydraulic system |
Taiwan Xutian, PLC Wuxi Guangyang |
|
8 |
Size |
The dimensions are 750*1300*1950, subject to actual size. The body is fully made of stainless steel (with plastic spraying). |
|
9 |
Weight |
1500kg |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
