ItemNo :
LITH-ZP-45MOQ :
1Compliance:
Warranty:
2yearsDelivery Time:
5 days
Introduction

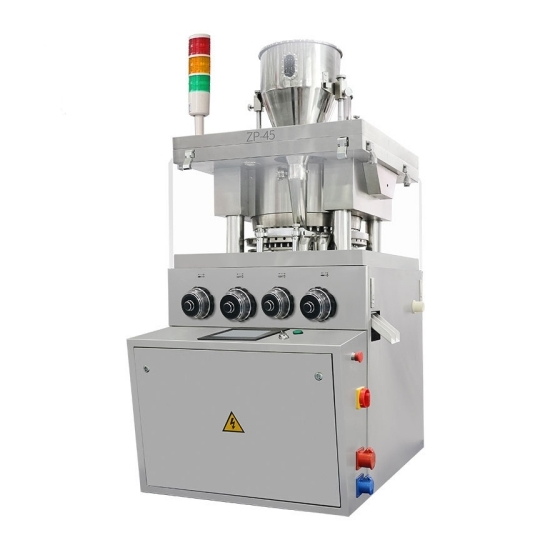

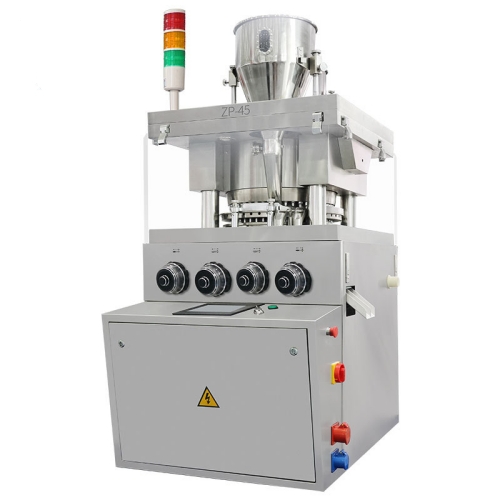

The multi-punch tablet press is a new type of intelligent tablet press developed by our company. It features high pressure, easy operation and maintenance. The multi-punch rotary tablet press is suitable for the pharmaceutical, chemical and food industries. The multi-punch tablet press can press pharmaceutical tablets, tablets and health products. The stainless steel rotary tablet press has stable tablet weight and sensitive adjustment. The medium-sized tablet press equipment has high precision and smooth operation. The mold, hopper, feeding device, tablet discharge port, scraper and other components of the granular tablet press are easy and quick to disassemble, and are easy to clean and maintain. The equipment is well-configured, with excellent performance of the core components, a long service life and few malfunctions.
Application
It is applicable to industries such as pharmaceuticals, health products, food, and daily chemicals.
Technical parameter
|
Model |
ZP-45 |
|
Structured and modular design |
Easy to disassemble, maintain and replace. |
|
Output |
200000 pcs/h |
|
Raw materials suitable for pressing |
Powder, granules |
|
The types of tablets that can be compressed |
Circular, irregular, two-color and ring-shaped |
|
Maximum pressure |
100KN |
|
The maximum diameter of tablets that can be compressed |
13mm, special-shaped piece 16mm |
|
Maximum tablet thickness |
8mm |
|
Comply with GMP requirements |
Non-toxic, odorless and anti-corrosion handwheel adjustment |
|
Accuracy |
The sensitivity reaches 0.1mm |
|
Power supply |
380/220V 50Hz |
|
Power |
5.5KW |
|
Weight |
1800kg |
|
Size |
1100*940*1755 mm |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
