ItemNo :
LITH-TDP-0MOQ :
1Compliance:
Warranty:
2yearsDelivery Time:
5 days
Introduction

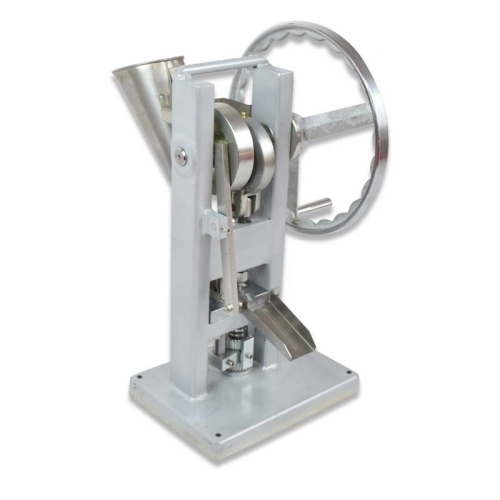

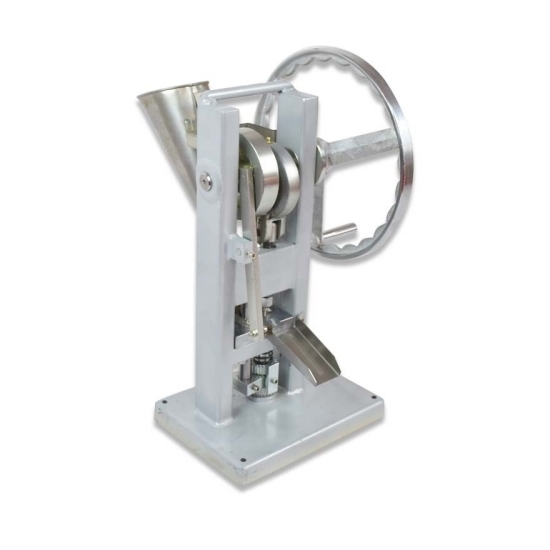

The TDP-0 manual milk tablet machine is a small desktop manual continuous press machine and a relatively lightweight single-punch tablet machine. The total weight of the machine is 32 kilograms. It has good performance, is easy to operate and convenient to move. This machine can press round milk sheets up to 12mm in size, and manual operation is effortless. At the same time, this machine can also press various granular, crystalline or powdery raw materials with good fluidity into products of various geometric shapes (such as square, triangular, elliptical, sac-shaped, etc.), and can also press products with words, trademarks and patterns. It is suitable for use in industries such as pharmaceuticals, health products, food, agriculture, chemical engineering, electronic batteries, metallurgy and ceramics for small-batch production and scientific research experiments and teaching. This machine is equipped with only one set of punches and dies. The filling depth and pressing thickness of the material can be adjusted (that is, the weight, thickness and hardness of the product can all be adjusted). Different products can be pressed simply by changing different dies.
Technical parameter
|
Tablet pressing pressure (Kn) |
15 |
|
Tablet diameter (mm) |
3-12 |
|
Filling depth (mm) |
12 |
|
Tablet thickness (mm) |
6 |
|
Production capacity (pcs/h) |
about 2000 |
|
Overall dimensions (mm) |
520*300*220 |
|
Overall machine weight (Kg) |
32 |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
