Introduction

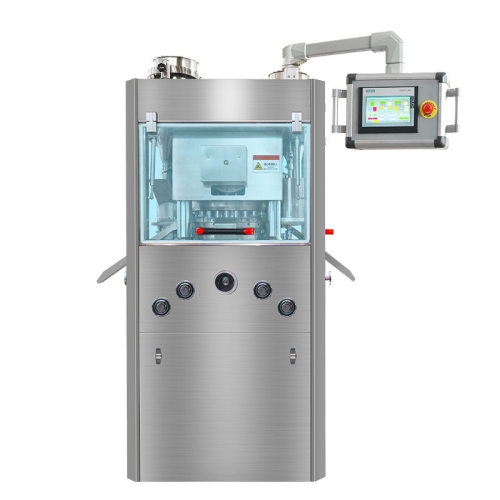

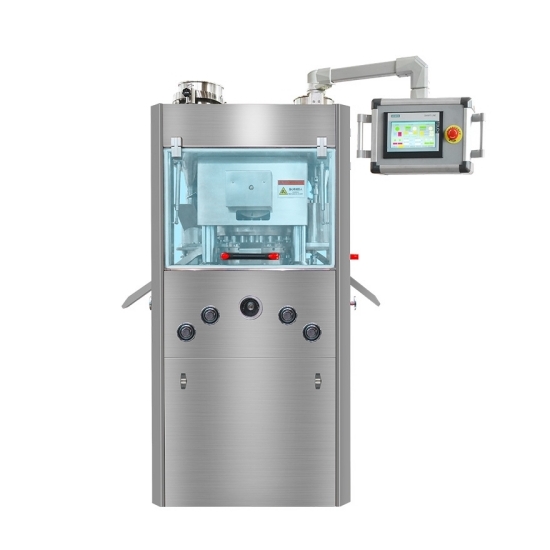

ZP-25/55D is a sixth-generation automatic rotary tablet press that continuously presses powders and granules into round tablets, special-shaped tablets, two-color tablets, and ring tablets. It has the advantages of high pressure and easy operation. It is also a suitable model for materials that are difficult to press and corrosive materials, and meets cGMP production requirements.
Main Features
Meet cGMP requirements. The entire shell is made of stainless steel, and the tablet pressing chamber is isolated from the external environment by organic glass, with good sealing performance. All parts of the tablet pressing chamber that come into contact with the drug meet the requirements of "non-toxic, odorless, and anti-corrosion".
The turntable is made of ductile iron QT50o, pressed by solid rods, with strong hardness, corrosion resistance,heat resistance,wear resistance,and good system stability.
This tablet press has a turntable with double dust suction, six upper and lower dust suction ports, good powder removal effect, and a clean turntable surface.
Low noise. The upper and lower rails are made of cast steel GCr15, with scientifically designed arc and angle of the rails, large-angle linear structure, smooth mold operation,and low noise.
Technical parameters
|
Model |
25D |
41D |
55D |
|
Molding qty |
25 |
41 |
55 |
|
Production (pcs/h) |
60000 |
140000 |
160000 |
|
Pressing diameter (mm) |
30 |
13 |
9 |
|
Pallet thickness (mm) |
15 |
6 |
6 |
|
Max. pressure (KN) |
100 |
80 |
80 |
|
Max. Depth of filling (mm) |
30 |
15 |
15 |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
