Introduction

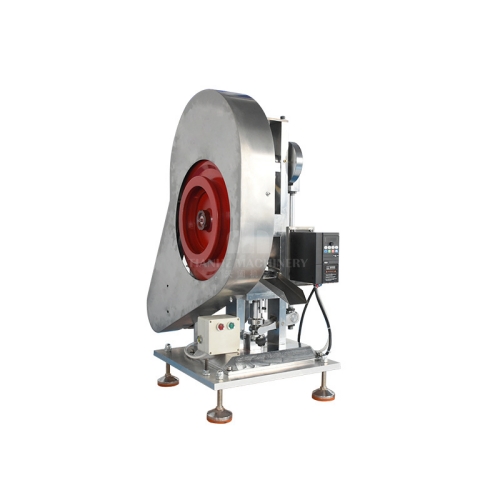

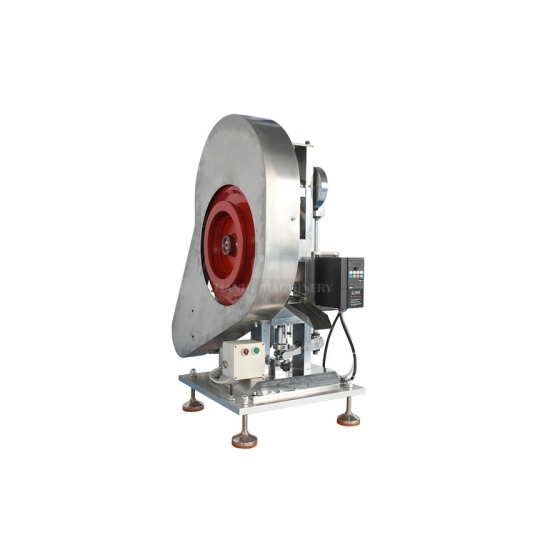

The TDP-120D single-punch tablet press can compress powder and granular raw materials into large tablets and is widely applicable to pharmaceutical factories, chemical plants, food factories, hospitals, research institutions, laboratories for trial production and small-scale production. The TDP-120D single-punch tablet press can produce tablets of special shapes such as round tablets, irregular-shaped tablets and ring-shaped tablets. This machine features high pressure, large pressed sheet diameter, and variable frequency speed regulation to adjust the operating speed of the equipment.
This machine has excellent performance, strong adaptability, is easy to use and maintain. This machine has increased mechanical strength and power compared with the original TDP series tablet press, thus having a greater tablet pressing force. At the same time, the filling depth has been increased, thereby expanding the diameter and thickness range of the tablets. Therefore, this machine can meet the requirements of the pharmaceutical industry for pressing various Chinese and Western medicine tablets and similar products in other industries, and is widely welcomed by users.
Technical parameter
|
Tablet pressing pressure (Kn) |
120 |
|
Tablet diameter (mm) |
60 |
|
Filling depth (mm) |
45 |
|
Tablet thickness (mm) |
20 |
|
Production capacity (pcs/h) |
2100 |
|
Motor power (Kw) |
4.0 |
|
Overall dimensions (mm) |
620*700*850 |
|
Overall machine weight (Kg) |
210 |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
