1-24 Series Cylindrical Cell Pack Tester BMS Tester Protection Board Tester for Lithium Battery Pack

1-24 Series Cylindrical Cell Pack Tester BMS Tester Protection Board Tester for Lithium Battery Pack

ItemNo :
LITH-PBTS(M)4-120
MOQ :
1
Place of Origin:
China
Color :
optional
Port :
Xiamen Port
Compliance:
CE
Warranty:
2 years
Delivery Time:
5 days

Email :

Louis@lithmachine.com

Whatsapp :

+86 18659217588

Wechat :

18659217588

Contact Now

Product Details

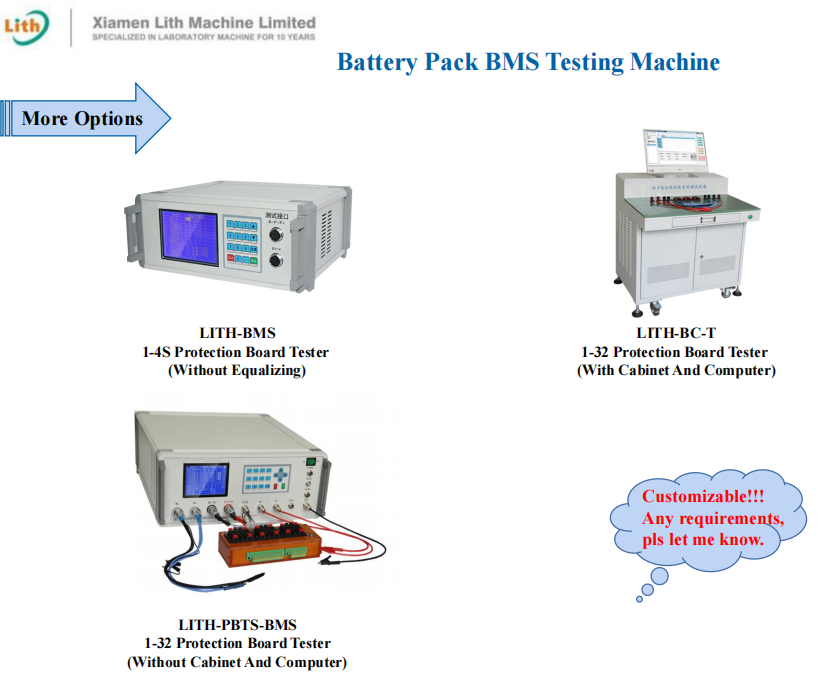

1-24 Series Cylindrical Cell Pack Tester BMS Tester Protection Board Tester for Lithium Battery Pack

1. Application and Function Introduction

1.1 Application: It is mainly used to detect whether the functional indexes of power battery

protection board are within the parameter range, so as to provide a set of detection standards for

staff. It is mainly used for the test of power battery protection board of protection board

manufacturers and power battery manufacturers.

1.2 Function Introduction: PBTS protection board test system is divided into fast test and

accurate test

Accurate test: It can accurately detect the accurate value of various functional parameters of

the power battery protection board (the error is 5mv), facilitate the debugging and development

of samples, and provide a set of standards for rapid detection for R & D personnel.

Quick test: According to the design parameters of the protection board, set the test parameters

to conduct quick test, which is convenient for the protection board manufacturer and power

battery manufacturer to conduct large-scale and rapid test and delivery. It is also applicable to

the protection board test of various hardware schemes and some software schemes.

2. Main Performance

2.1 Routine test items:

Internal resistance test, overcharge and discharge test, overcharge recovery, overcharge and

discharge recovery test, overcurrent test (Charging overcurrent and discharge overcurrent),

overcharge protection voltage, overcharge recovery voltage, overcharge and discharge

protection voltage, overcharge recovery voltage, overcurrent protection, etc.

2.2 Special test items:

Short circuit protection test (Refers to the real short circuit protection test of microsecond level).

Single section self power consumption test (Refers to the true and accurate self power

consumption of each section).

Equalizing current and equalizing voltage (Can accurately grasp the equalizing current and

equalizing opening voltage).

Infrared scanning (Bar code scanning) scans the ID number of each protection board and stores

the record.

3. Technical Parameter

3.1 High current module: The current level is 120A and the current accuracy is 0.1A.

3.2 Voltage module: Voltage range 0.5-5V, programmable output 0.5-5V, voltage accuracy

5mV.

3.3 Short circuit module: Super capacitor, which fully simulates the pack battery voltage,

instantly short circuits the protection board, and accurately captures the short-circuit time and

current.

Test Items	Test Scope	Accuracy
Number of test series	1-24 series
Reference voltage	LiCoO2(3.8V) LiFePO4(3.0V)
Overcharge protection voltage	0.5-5V	±5mV
Over discharge protection voltage	0.5-5V	±5mV
Overcharge recovery voltage (Self recovery)	0.5-5V	±5mV
Over discharge recovery voltage (Self recovery)	0.5-5V	±5mV
Overcharge protection current	1-40A	±0.1A
Over discharge protection current	1-120A	±0.1A
Equalizing opening voltage	0.5-5V	±5mV
Equalizing real-time current	0-1000mA	±1mA
Overcurrent protection delay	0-15S	±1mS
Overcharge protection delay	0-20S	±1mS
Over discharge protection delay	0-20S	±1mS
Single section self power consumption	0-500uA	±1uA
Loop internal resistance	0-500mΩ	±1mΩ
Short circuit protection (More than 6 series)	0-9999us	±1uS
Application	All hardware scheme protection boards and some software boards in the market (Special test items need to be communicated)

4. Appearance&Structure and Working Environment Requirements

4.1 Equipment size: L420*W410*H200mm, net weight 15kg.

4.2 Working environment: The working power supply requires mains power AC220V input,

power supply fluctuation range (170-260V), working environment temperature - 10 ℃ to 40 ℃,

working humidity of 10% ~ 90%, maximum power of 600W, which occurs only under the

condition of high test current.

battery management system tester

lifepo4 battery BMS tester

BMS Tester Lithium Battery

PACKAGE:

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damaged part for you for free.

DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.

HotTags : BMS Tester Battery Pack BMS Tester Protection Board Tester Battery Pack Tester
