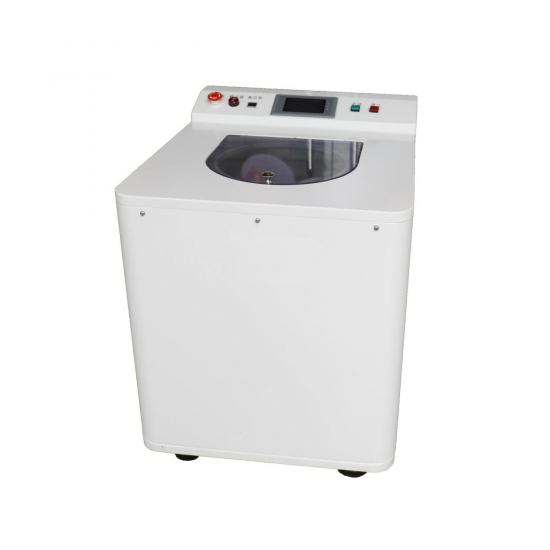

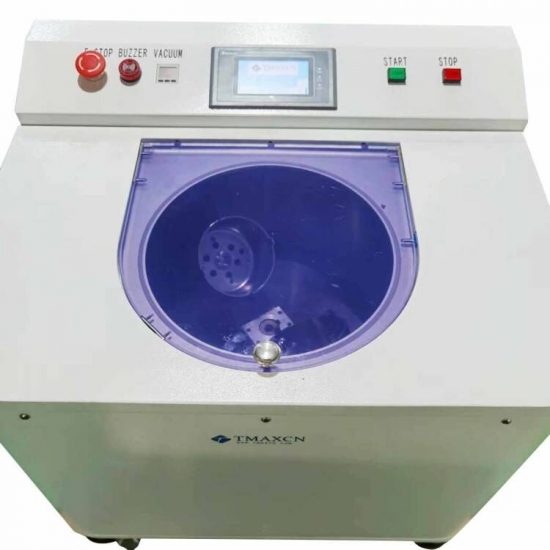

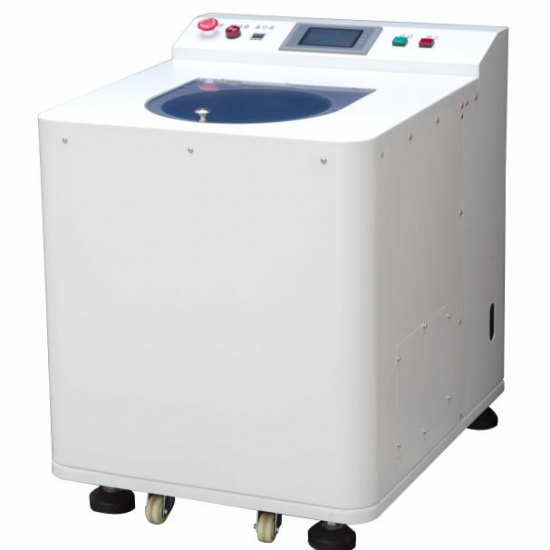

Louis@lithmachine.comLab Vacuum Mixer with Two 10L Containers and Human-machine Dialogue Control System
|
Name: |
Vacuum planetary gravity mixer (vacuum stirring and defoaming machine) |
|
Model: |
ITT-10000S |
|
Purpose: |
It is suitable for dispersing, mixing and defoaming of multi-component materials (silica gel, multi-component epoxy resin, etc.). |
|
Standard container: |

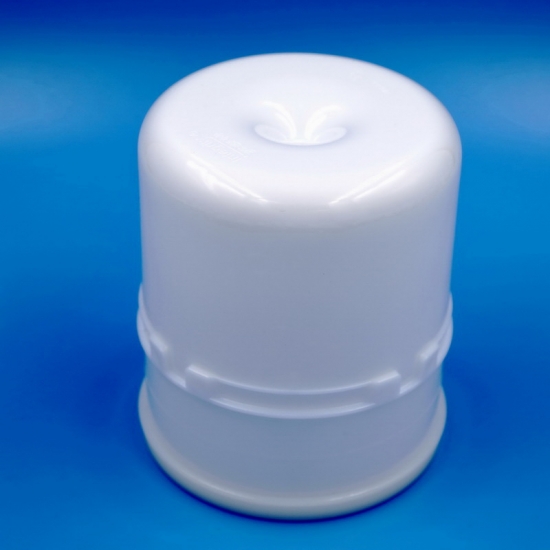

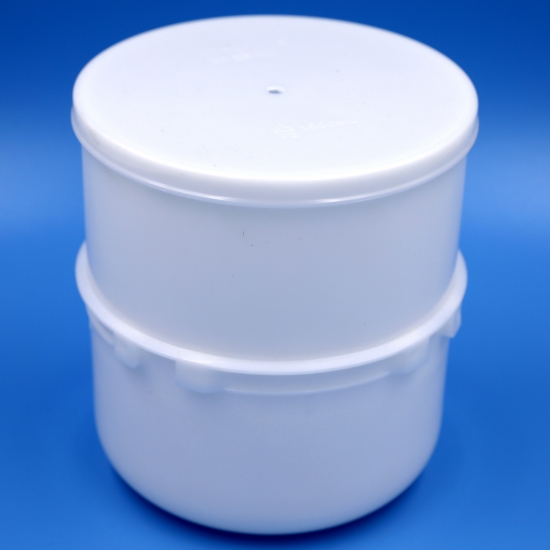

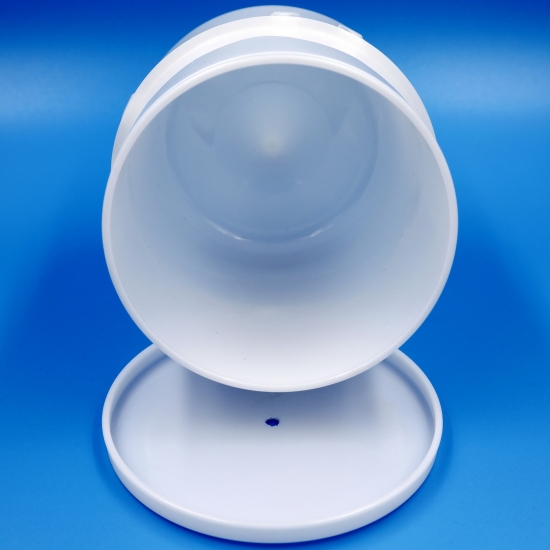

10L（HDPEφ237*258） 4000ml（HDPE φ173*193） 1500ML(HDPEφ130×146) |
|
Maximum throughput: |
1200g~18KG；≤6000mL； |
|
Revolution: |
100~800rpm stepless speed regulation, adjust 1rpm according to the actual needs of users; |
|
Set time: |
0~3000S*5(a total of five steps), the accuracy is 1s; |
|
Parameter storage: |
5 groups; |
|
Vacuum degree: |
-100KPa, precision 0.1KPa; |
|
Vacuum source: |
Built-in two-stage advanced vacuum pump 90L/min (=15L/sec=54~60m²/hour); Absolute limit pressure (partial pressure 5*10-2Pa and 0.05Pa); Absolute limit pressure (full pressure 4*10-1Pa and 0.4Pa) |
|
Vacuum Settings: |
Vacuum independent switch, with vacuum delay function, vacuum degree can be adjusted arbitrarily; |
|
Bearing: |
Japan NSK bearing; |
|
Control System: |
Human-machine dialogue, Chinese interface, touch screen operation; |
|
Balance adjustment: |
Double cup configuration balance; |
|
Transfer method: |
Gear drive; |
|
Working principle: |
Public rotation wingless centrifugal gravity method; |
|
Alarm system: |
When running, the upper cover is uncovered and detected; |
|
Safety protection: |
During operation, the upper cover is locked, and when the upper cover is opened, it stops working; |
|
Applicable temperature and humidity: |
10~40 ℃; 20~80%RH (if there is no foggy moisture, it is enough); |
|
Voltage: |
AC380V±5%; 3-Phase; 50~60Hz; |
|
Power: |
The rated power of the host is 6KW; |
|
Dimensions: |
L1200*W1000*H1100mm； |
|
Host weight: |
950Kg； |
|
Features: |
Rotation and revolution motion can generate a centrifugal gravity of up to 800G, which can be used for strong dispersion and defoaming; there is no spiral blade, which can realize stirring and dispersion in the container; no cleaning is required, and it will not pollute the material; it will not damage the properties of materials (especially fibrous materials); Human-computer interaction, easy to operate; ultra-small, ultra-light, ultra-quiet optimized design. |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
