6000mL Large Vacuum Planetary Centrifugal Mill & Mixer with Two jars & Independent Speed Controlled

6000mL Large Vacuum Planetary Centrifugal Mill & Mixer with Two jars & Independent Speed Controlled

  • Product Details

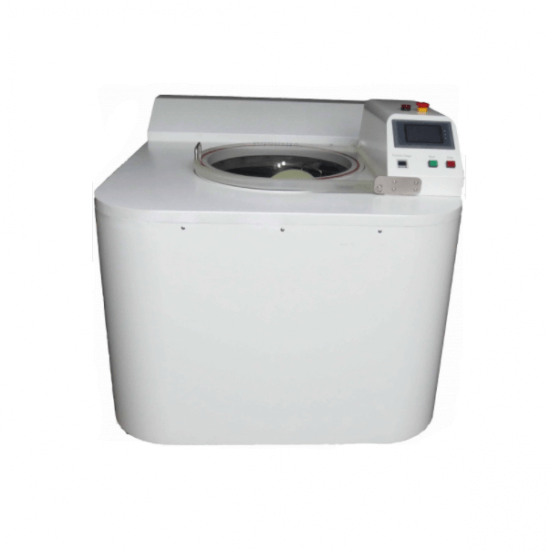

6000mL Large Vacuum Planetary Centrifugal Mill & Mixer with Two jars & Independent Speed Controlled


The planetary centrifugal vacuum mixer is designed for mixing and deaerating various kinds of liquid, slurry, paste, and powder materials. It could be used for mixing and homogenizing nanopowders, nanotubes, ceramics powders, battery powder/slurry, metal powders, and especially high viscosity slurry/paste. The vacuum mixing capability is integrated for best mixing results. The standard package includes containers and counter-weights.


Specification

Name

6000mL Vacuum Planetary Centrifugal Mill & Mixer

Equipment model

TMAX-TP6000S

Container Capacity

6000ml*2Cup)

The optimal capacity of mixing material

500-3000ml*2Cup)

Operation  Type

Human-machine Interaction Mode

Revolution Speed

100-2000RPM

Rotation Speed

Invariablenes

Vacuum

60/Minute,APROX.-98KPa

Multi Parameter Group

Multi Parameter Group

Protection

Door Cover,Breakdown, Overload

Dimension(mm)

1000L*1200W*950H

Voltage

2.5-5KW, Three-phase 380V

Weight

200KG

Power Supply

Three-phase 380V.50-60Hz

Clamp

Option




Centrifugal Mixer



mixer








PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
