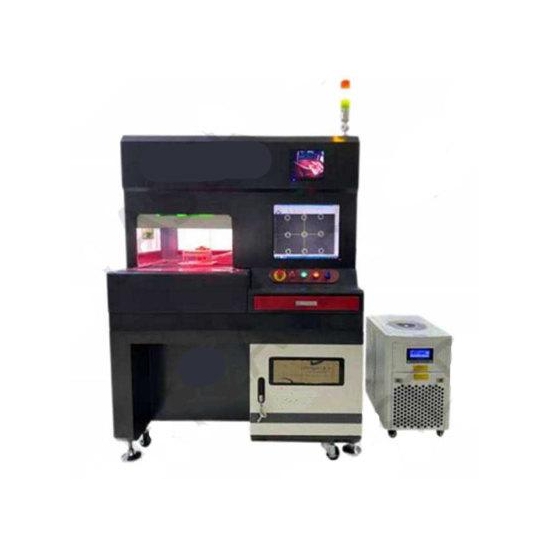

High Precision FPC UV Laser Cutting Machine

Applications

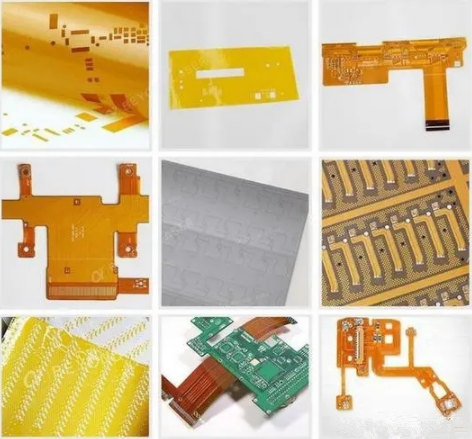

Suitable for ultra-precision machining of FPC, PCB, coverlay film, FR4, rigid-flex board cutting and FPC drilling.

Features and Benefits

•Using an ultraviolet laser, the material can be separated without carbonization and ablation, without complicated post-processing;

•Using the cross-platform cutting method, visual positioning and motion are integrated, which can realize high-precision positioning and cutting;

• Fully enclosed CNC design, one-time molding, high efficiency, is a good solution for cost saving.

Technical parameter

Model	DM-CUV01
Laser	355nm UV
Laser power	15W
Cutting range	50*50mm
Thickness of processed material	<0.8mm
Platform trip	X450mm/YL300mm/Z110mm（customizable）
Speed	Processing speed WI000mm /s, acceleration <10000mm/ S2
Precision	Repeatability < ±2pm, positioning accuracy < ±3pm
Power supply	380V/50HZ/5KVA
work fixture	customization
weight	1200KG
Main frame dimensions	customization
environment humidity	<50%
environmental requirement	22°C〜25°C（Constant temperature can ensure high precision）

PACKAGE:

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.

DELIVERY TIME: 15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
