1000W 1500W 2000W 3000W Precision Laser Cutting Machine for Small Metal Sheet Cutting

Product Categories

Contact Us

  • Contact Person : Louis Yang
  • Email : Louis@lithmachine.com
  • Address : No. 5 Nanshan Road, Huli District, Xiamen City, Fujian Province, China
1000W 1500W 2000W 3000W Precision Laser Cutting Machine for Small Metal Sheet Cutting 1000W 1500W 2000W 3000W Precision Laser Cutting Machine for Small Metal Sheet Cutting 1000W 1500W 2000W 3000W Precision Laser Cutting Machine for Small Metal Sheet Cutting 1000W 1500W 2000W 3000W Precision Laser Cutting Machine for Small Metal Sheet Cutting

1000W 1500W 2000W 3000W Precision Laser Cutting Machine for Small Metal Sheet Cutting

  • Product Details

1000W 1500W 2000W 3000W Precision Laser Cutting Machine for Small Metal Sheet Cutting

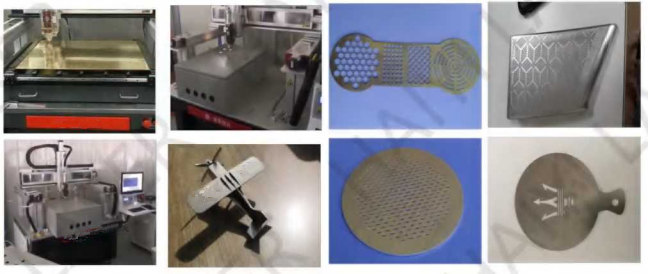

Applications

Laser cutting machine is suitable for machinery and equipment, advertising elevators, electrical equipment, meal processing, textile machinery, food machinery, construction machinery, automobiles, ships, molds, aerospace and processing industries.

Applicable to all kinds of metal sheets: stainless steel, carbon steel, galvanized sheet, copper sheet, aluminum sheet, various alloy sheets, rare metals, etc.

CFA series are widely used for cutting and forming of carbon steel, stainless steel, aluminum, copper and other metal materials.



Features and Benefits

1. High speed' high precision, high efficiency, low cost and energy saving.

2. The life of the laser source is up to 100,000 hours.

3. The cutting head has an intelligent auto-focusing function, which is quick and sensitive in response.

4. Non-contact cutting, the cutting edge is less affected by heat, and the quality of the cutting workpiece is good.

5. Using special cutting software, any graphics or text can be designed at will, instant processing, convenient and flexible operation.

6. Select high-performance servo motor and lead screw drive guide structure, high-precision ball screw, high-precision bearing to ensure the excellent performance of the equipment.

7. The guide rail adopts fully enclosed protection to reduce dust pollution, which greatly guarantees the accuracy and service life of the equipment.



Technical parameter

Model

DM-CFA03

Processing width (length and width)

400*600mm, 900*1200mm

customizable

Laser power

1000-6000W

Laser

Raycus/MAX/IPG (optional)

Laser cutting head

OSPR/Raytools (optional)

Wavelength

1,070±10 nm

Max cutting speed

2m/s


Minilinewidth

0.1 mm

Repeatability precision

0.03 mm

positional accuracy

± 0.05 mm/m

cooling system

water-cooling

power supply

380V 50/60HZ 50A

 total power consumption

 3KW-18KW


PACKAGE:

     1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

     2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

     3 Responsible for the damage during the shipping process, will change the damage part for you for free.



DELIVERY TIME: 15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
