Lab 100L Light Roller Ball Mill Widely Used in Electronic Materials And Magnetic Materials Lab 100L Light Roller Ball Mill Widely Used in Electronic Materials And Magnetic Materials

Lab 100L Light Roller Ball Mill Widely Used in Electronic Materials And Magnetic Materials

  • ItemNo :

    LITH-RBM-100
  • MOQ :

    1
  • Warranty:

    Two years limited warranty with lifetime technical
  • Delivery Time:

    5 days
  • Email :

    Louis@lithmachine.com
  • Product Details

Lab 100L Light Roller Ball Mill Widely Used in Electronic Materials And Magnetic Materials



A. Working principle and use:

The grinding medium and materials in the tank of the light drum ball mill are lifted to a certain height with the rotation of the cylinder, and are separated from the cylinder wall along the parabola due to the action of gravity. Under the impact, rolling and sliding of the grinding medium, the materials produce high-energy impact, shear and rolling to achieve the process purposes of grinding, grinding, dispersion, mixing, alloying and sphericity.

Light roller ball mill is a medium and mass production of ultrafine grinding equipment, widely used in electronic materials, magnetic materials, ceramic glaze paste, metal powder, non-gold minerals, new materials and other industries.


B. Technical parameters:

Model number

RBM-100

Ball mill tank volume (ML)

100L

Structure and size of ball mill tank

1.Grinding tank structure: the inner cylinder is a straight cylinder structure, the cylinder body and the plates on both sides are made of 304 stainless steel, the two side walls are reinforced to connect the two ends of the shaft, and the inner liner is lined with 20mm alumina U-shaped card slot brick.

2. A grinding mouth is opened on the cylinder body (both a feeding mouth and a discharge mouth) with a solid grinding cover and a net ball discharge grinding cover. The grinding cover and discharging screen are fastened by quick locking device.

3. Cylinder with exhaust device.

4. The reference size inside the grinding tank is Φ542×576mm.

Maximum loading per tank

The material and grinding medium shall not exceed two-thirds of the volume

Receiving cover

Dry grinding with stainless steel dust collection cover, wet grinding with safety cover

Ceramic inner cylinder

The inner cylinder wall is lined with alumina bricks with a thickness of 20mm, and the bricks are equipped with U-shaped card slot. The glue is resistant to wear-resistant and chemical solvents such as toluene, alcohol, propyl acetate and isobutanol.

Feed size

Brittle materials less than 10 mm, other less than 3 mm

Discharge size

50-1000 mesh (depending on material characteristics)

Rotational speed

0~52r/min(±2)

Speed regulation mode

Variable frequency speed regulation (timer with timer range 0 ~ 99 hours and 99 minutes)

Outlet distance from ground (MM)

About 400

Inlet size and others

The bottom of the grinding tank cover is fitted to the arc of the tank, and the size of the feed port is 205*205mm(refer to the confirmed design drawing for details).

Discharge method

Semi-automatic positioning of feeding and unloading, separated by ball sieve

Operating voltage

Three-phase 380V, 50HZ

Main motor power and inverter power

2.2KW (motor brand is Dedong, inverter brand is Delixi)

Reduction gear

Parallel shaft helical gear reducer K67-Y2.2-6P-18.26-M3-C1 is adopted

Equipment reference size (MM)

1500(L) *780 (W) *1240 (H)

Equipment reference weight (KG)

About 400



C. Product features:

a. Equipment stable operation, low power consumption, suitable for customer material fineness requirements are not high, medium, mass production;

b. Can be dry, wet grinding, mixing, alloying, spherical and other processes, can deal with various hardness of materials;

c. The biggest advantage of the equipment is that it can automatically discharge and automatically separate the ball material, which is suitable for mass production. Automatic positioning feeding and discharging system can be selected.

d. According to the different characteristics of customer materials, the ball mill tank be lined with different materials, such as zirconia, alumina, polyurethane, nylon, tetrafluoride, cemented carbide, silicon carbide, etc., to ensure that the material is not polluted, high purity;

e. Can be customized according to the special needs of customers;



D. Light roller ball mill products related pictures:

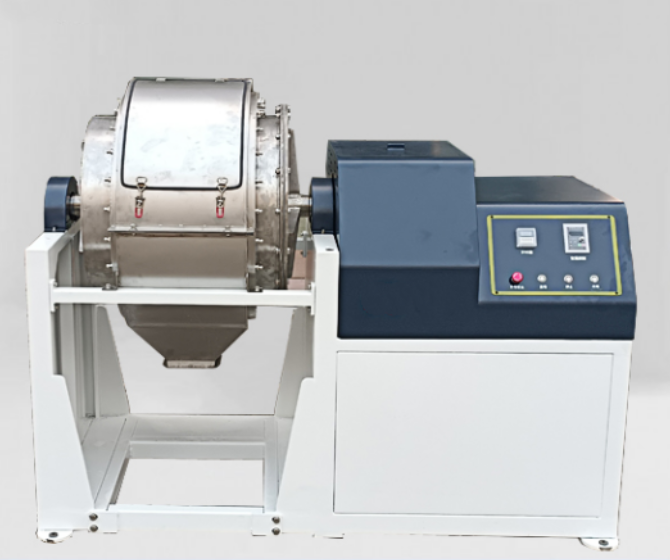

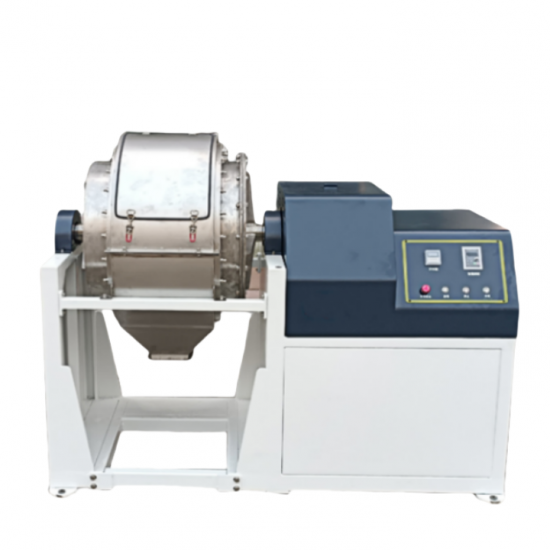

       Roller Ball Mill

(Dry grinding with receiving cover)

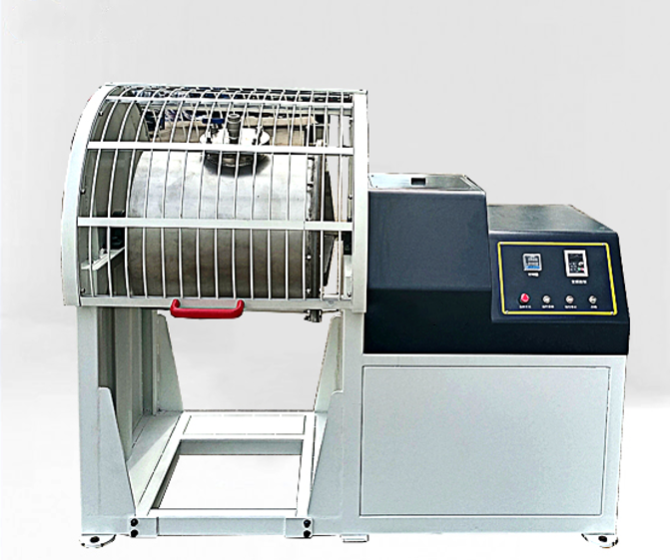

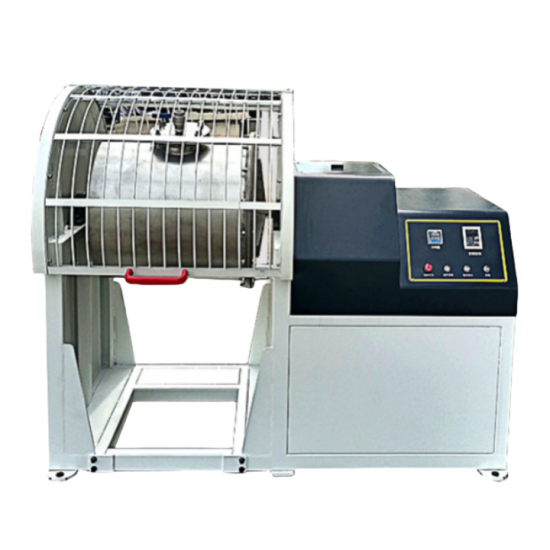

       Roller Ball Mill

(Safety cover for wet grinding)






PACKAGE:

     1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

     2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

     3 Responsible for the damage during the shipping process, will change the damage part for you for free.



DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
