Louis@lithmachine.com5-50L Planetary Vacuum Mixer Machine With Vacuum Pump And Water Chiller

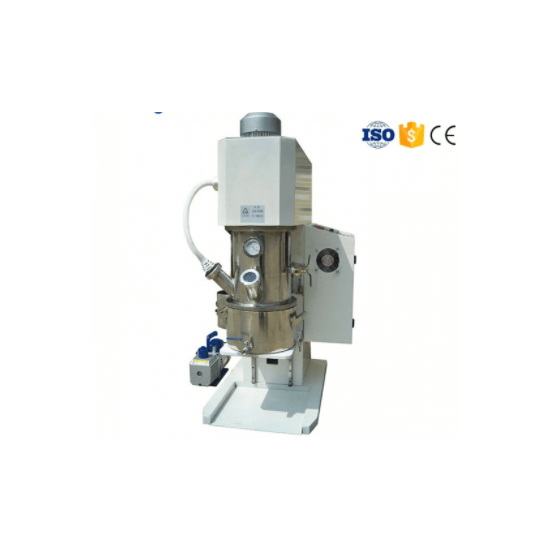

1 This LITH-MSK-SFM-6E Planetary vacuum mixer machine is a set of vacuum mixing, dispersion of efficient equipment, suitable for lithium electricity experiment process is anode paste mixing process, solder paste, silica gel, chemical industry, etc
2 This lab planetary mixer Mixing motor adopts transmission frequency adjustment,
can choose different rotational speed and torque according to different process, different viscosity.
3 The vacuum planetary mixer is excellent for preparing LiCoO3, LiFePO4, Phosphors and
ceramic slurry without gas bubble. And the processed material results in the better dispersion and uniformity.
SPECIFICATIONS:
|
Model |
Planetary Vacuum Mixer |
|
Source voltage |
AC 220V/110V, 50HZ/60HZ |
|
Power |
3500W |
|
Warranty |
One Year limited warranty with lifetime support |
|
Rotation speed |
0-1400 r/min, Through the inverter speed control |
|
Revolution speed |
0-70r/min |
|
Effective volume |
5L, 1-10 Liters Customized according request |
|
Design volume |
9L |
|
Mixing barrel opening mode |
Deceleration motor driven fill rises |
|
Mixing barrel size |
Φ260mm(Diameter)*180mm(Hight) |
|
Mixing time set |
0-99H can be set, auto stop when finish with vacuum |
|
Weight |
About 150kg |
|
Dimension(H*L*W) |
1400*1100*800mm, 51″*43″*27.5″ |
|
Advantage |
5 liters 304 stainless steel container with high accuracy Advanced soft sealing type to keep vacuum pressure maintain on -98kpa up to 24 hours. Double Step Rotary Vane Vacuum Pump, 254L/m, is included for immediate operation Programmable controller to set time, speed, rotation direction. With time and temperature setting function Double blade design, make the material up and down around, mixing battery paste rapi |
Pouch Cell Process: Tube Furnace/ Muffle Furnace→ Vacuum Mixing→ Electrode Coating→ Roll press→ Electrode Cutting→ Vacuum Drying→ Cases Forming→ Top&Side Sealing→ Electrolyte Filling→ Vacuum Sealing→ Battery Analyzer
For the pouch cell assembly, we also recommend you the following items:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
