Split-able Pouch Cell Tester with Quartz Window for Battery Analysis

Split-able Pouch Cell Tester with Quartz Window for Battery Analysis

  • Product Details


Split-able Pouch Cell Tester with Quartz Window for Battery Analysis


Features

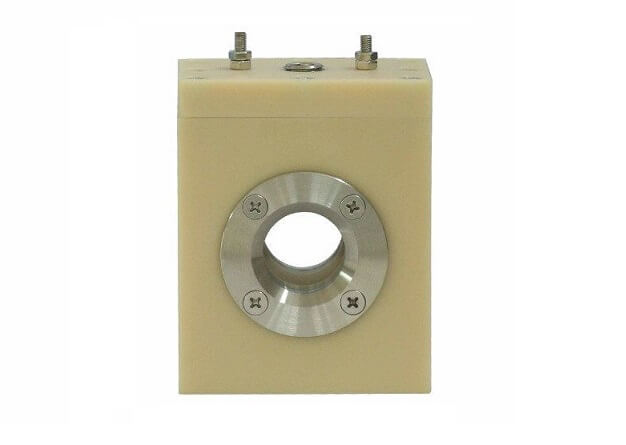

EQ-SPCW is splittable pouch cells with a double quartz window for X-Ray or Raman in-situ analysis. The split pouch cell is made of Nylon or Peek. Its detachable design allows you to test the pouch cell behavior as well as structural changes of electrode easily, quickly and cost-effectively.


Technical Parameter

Features



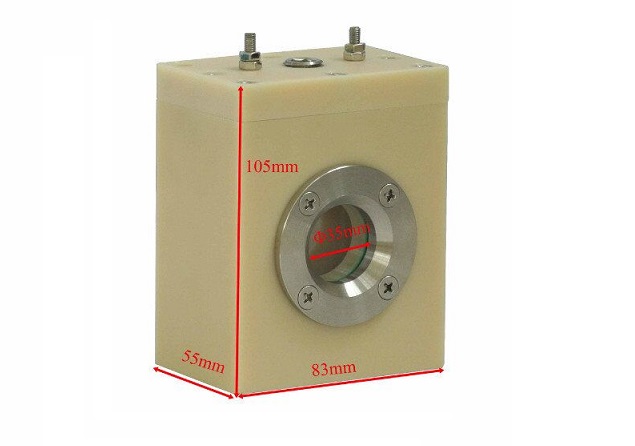

1. 30 mm diameter quartz window installed on two sides of pouch cell for transparency measurement.

2. Pouch cell is sealed by PTFE O-ring without liquid and gas leaking.

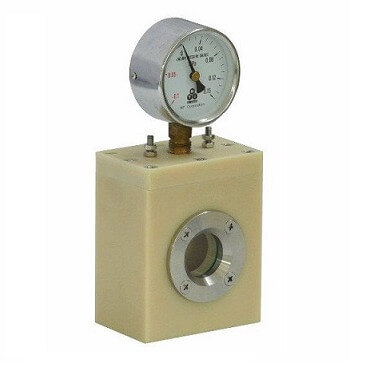

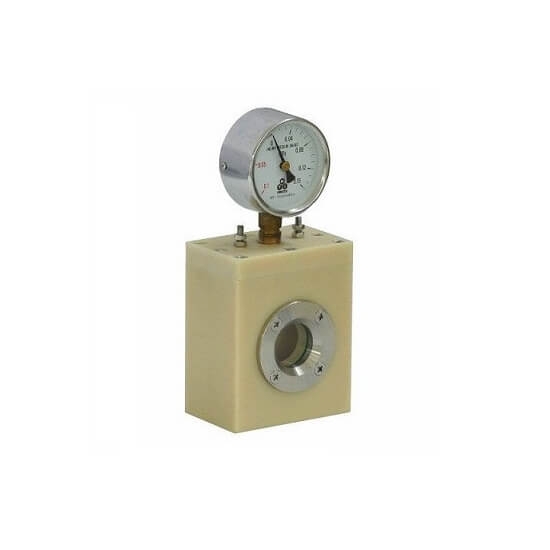

3. One pressure gauge installed on top to monitor pressure. You may remove the gauge and use 1/4 female port to inject electrolyte into the pouch cell.

4. Pouch cell is easy assembling by only four cap mounting screws.

5. It is easy to separate after test for microstructure analysis.

6. Space saving, compact design allows you put it into the glove box.



Material



1. Nylon or PEEK (Poly Ether Ether Ketone) selectable

2. Body:Electrolyte corrosive-proof Nylon which can sustain with temperature up to 80ºC and O-ring: Sealed by electrolyte corrosive-proof PTFE O-rings.

3. Body:PEEK (Poly Ether Ether Ketone), which is a semicrystalline thermoplastic with excellent mechanical and chemical resistance properties that are retained to high temperatures and O-ring: Sealed by electrolyte corrosive-proof FKM O-rings.

Electrode Sheet dimension



1. Standard size: Cathode Die: 57mm (L) x 44mm (W). with 10mm (L) x 10mm (W) protrude current collector

2. Anode Die: 58mm (L) x 45mm (W). with 10mm (L)  protrude current collector

3. Customized size pouch cell is available upon request.

Application Note



1. In order to make metal air pouch cell, you can drill holes in the case. We can help you do that at an extra cost.

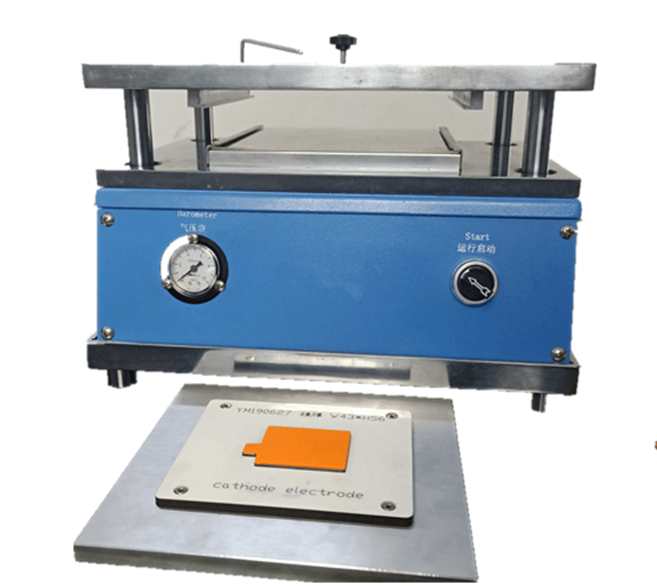

2. You may use die cutter to prepare electrode via layer by layer or make winding type pouch cell electrode.

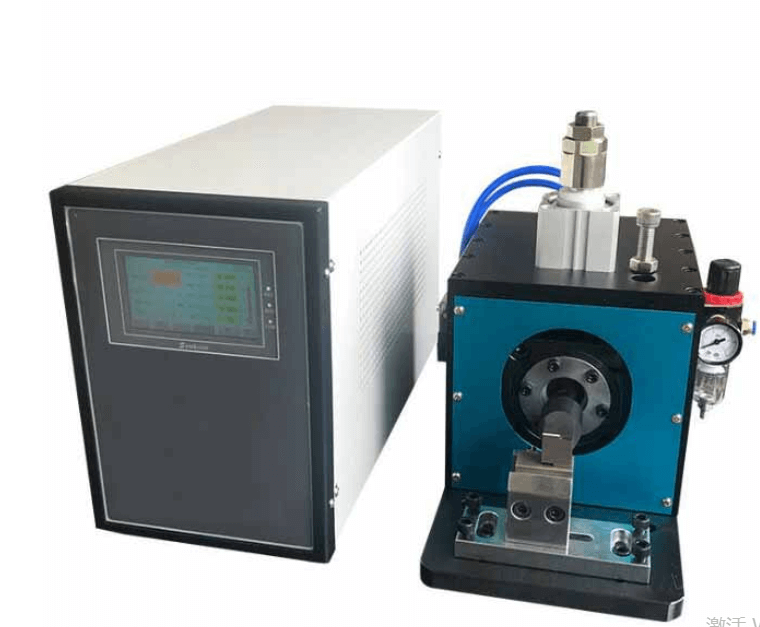

3. You may need an ultrasonic welder to welding electrode tape to connect to the split cell.
















PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
