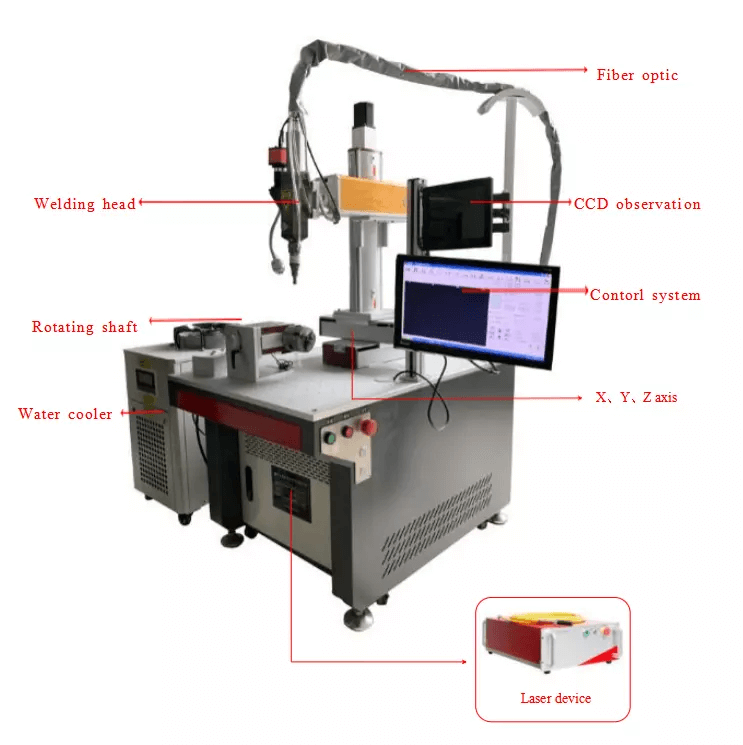

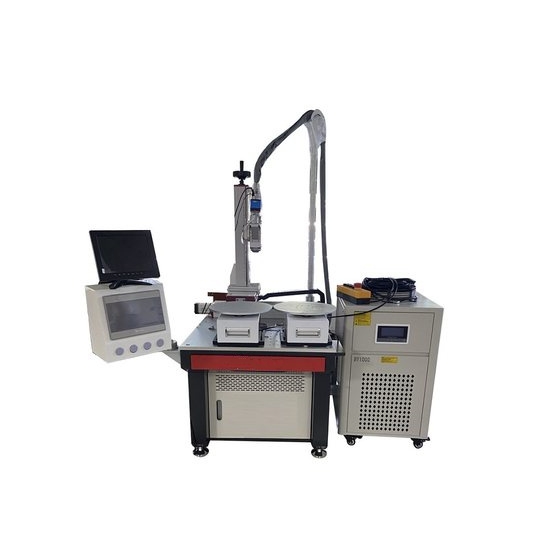

Louis@lithmachine.comPlatform XYZ-axis Automatic Laser Welding Machine
The fiber laser welding machine uses a continuous fiber laser to accurately control the width, energy, repetition frequency and other parameters of the laser pulse through digitalization to melt the workpiece and form a specific molten pool, thereby realizing laser welding of the workpiece.
Features and advantages
1. Using continuous laser, the lifespan can reach 100,000 hours;
2. The continuous fiber laser is maintenance-free, high stability and low cost;
3. The welding seam is thin, the depth is large, the precision is high, and the welding seam is smooth and beautiful;
4. The laser energy and welding speed are controlled by software, so that the welding is not deformed or the deformation is extremely small;
5. Laser welding is non-contact welding, which can easily realize welding in hidden areas;
6. Various welding processes, including spot welding, seam welding and stitch welding;
7. High welding efficiency, the normal welding speed is greater than 1.0 m/min;

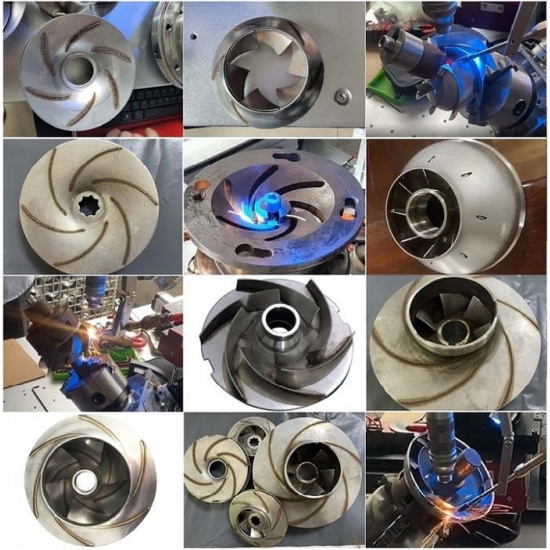

8. Suitable for most metal materials, and difficult-to-weld materials such as aluminum and copper can also be laser welded.
Parameters
|
Model |
DMHY- C1000W |
DMHY- C1500W |
DMHY- C2000W |
DMHY- 3000W |
|
Max laser power |
1000W |
1500W |
2000W |
3000W |
|
Depth of fusion（SS，1m/min) |
2.68mm |
3.59mm |
4.57mm |
6.87mm |
|
Depth of fusion（CS，1m/min) |
2.06mm |
2.77mm |
3.59mm |
4.79mm |
|
Depth of fusion（AL，1m/min) |
2mm |
3mm |
4mm |
4mm |
|
Depth of fusion（Cu，1m/min) |
0.3mm |
0.4mm |
0.5mm |
1mm |
|
Total power |
≤3KW |
≤4.5KW |
≤6KW |
≤9KW |
|
Cooling method |
Water cooling |
|||
|
Voltage |
220V |
220V or380V |
380V |
380V |
|
Argon or nitrogen protection (customer provided) |
15L/min |
|||
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME: 15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
