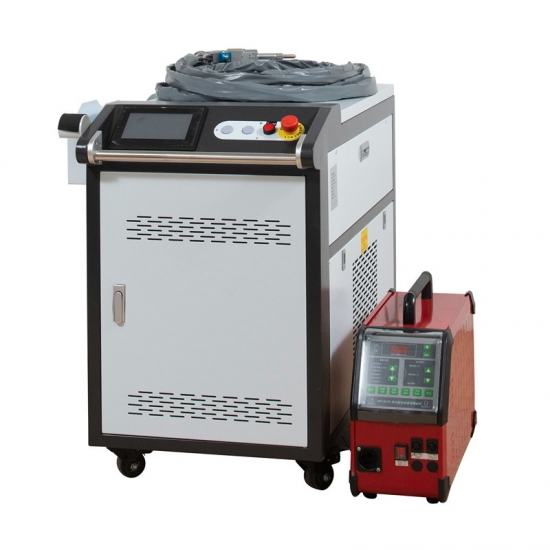

Handheld 1000W 1500W 2000W 3000W Laser Welding Machine With Wire Feeder

Product Categories

Contact Us

  • Contact Person : Louis Yang
  • Email : Louis@lithmachine.com
  • Address : No. 5 Nanshan Road, Huli District, Xiamen City, Fujian Province, China
Handheld 1000W 1500W 2000W 3000W Laser Welding Machine With Wire Feeder Handheld 1000W 1500W 2000W 3000W Laser Welding Machine With Wire Feeder

Handheld 1000W 1500W 2000W 3000W Laser Welding Machine With Wire Feeder

  • Product Details

Handheld 1000W 1500W 2000W 3000W Laser Welding Machine With Wire Feeder


Laser Welding Machine is widely used in mobile phone battery shell, electronic components, mobile communication, precision equipment, hardware products, automotive accessories, glasses, clocks, jewelry, medical equipment, thermal cups, wine pots, kitchens and other industries.


Features and advantages

1. Handheld laser welding is easy to learn, no welder certificate or professional welder is required.

2. Laser welding does not require a mask and does not belong to electric solitary radiation, but laser protective glasses are required.

3. The welding seam is smooth and beautiful, no need for grinding or a small amount of grinding work.

4. By controlling the laser energy, the welding is not deformed, or the deformation is very small.

5. Low cost of use, power consumption, gas consumption, lenses, etc. are all low-cost consumption.

6. The length of the optical fiber is 10 meters, which can be used for long-distance welding of large workpieces.

7. Various welding processes, including spot welding, seam welding and stitch welding.

8. Wire welding of stainless steel, carbon steel and galvanized sheet, the normal speed is 0.7-1.0 m/min.


Speicifcation parameters

Mode

DMW-1000W

DMW-1500W

DMW-2000W

DMW-3000W

Max laser power

1000W

1500W

2000W

3000W

Depth of fusion(SS)

2. 68mm

3. 59mm

4. 57mm

6.50mm

Depth of fusion(CS)

2. 06mm

2. 77mm

3. 59mm

4.39mm

Depth of fusion(AL)

2 mm

3 mm

4mm

5mm

auto solder wire feeding

Φ 0. 8-1.2

Φ 0. 8-1. 6

Φ 0. 8-1. 6

Φ 0. 8-1. 6

Total power

3KW

4.5KW

6KW

6KW

Cooling method

Water cooling

Power supply

220V

22OV or 380V

380V

380V

Argon or nitrogen protection (customer provided)

20L/min

20L/min

20L/min

20L/min

Dimension

0.6*1.1*1.1m

0.6*1.1*1.1m

0.6*1.1*1.1m

0.8*1.1*1.1m

Weight

150kg

170kg

185kg

200kg



laser welding machine


PACKAGE:

     1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

     2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

     3 Responsible for the damage during the shipping process, will change the damage part for you for free.



DELIVERY TIME: 15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
