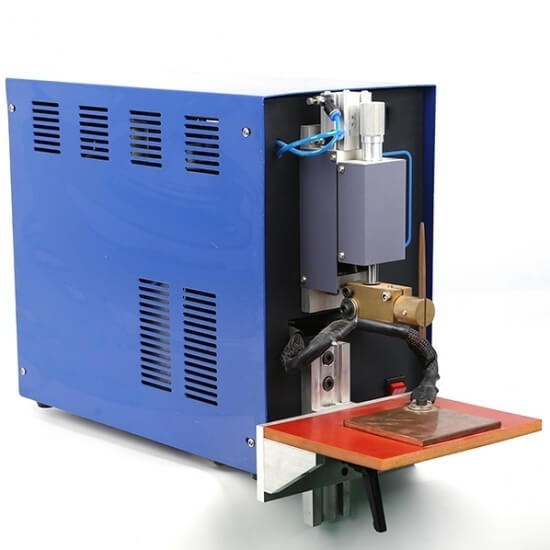

Manual Single Welding Needle DC Spot Welding Machine for Battery Pack Assembly

ItemNo :
TMAX-W728
MOQ :
1
Color :
optional
Port :
Xiamen Port
Compliance:
CE
Warranty:
2 years
Delivery Time:
5 days
Email :
Louis@lithmachine.com

Contact Now

Product Details

Manual Single Welding Needle DC Spot Welding Machine for Battery Pack Assembly

FEATURE

1 . LITH-W728 DC spot welding machine has two kinds type to choose, pneumatic spot welding machine with smaller shipping weight and volume, but need to connect air compressor. Foot spot welding machine without air supply but need with desk shipping together.

2 . This DC double needle spot welding machine is specifically designed for professional Li-ion Battery Research. It is mainly used for Welding pcb for mobile phone battery pack and EV battery pack for battery and Nickle tab weld.

SPECIFICATIONS

Model	DC spot welding machine TMAX-W728
Power Supply	110V-240V with transformer, Single Phase 50/60Hz
Max output power	10KVA
Warranty	One year limited with lifetime support
Advantages	1 Double pulse welding - pre welding and welding 2 Microcomputer control precision, Guarantee the evenness of each welding effect 3 Automatic count
Pre-welding current	0-99A
Welding time	0-30S
Welding current	0-99A
Welding stroke	25mm, the welding height can be adjusted
Operating	Foot switch and pneumatic model can be chosen
Control	The microcomputer chip control, LCD liquid crystal display, simple and precision
Welding thickness	0.03-0.5 mm Ni weld on Ni or metals
Weight	50kg
Dimension(LWH)	Foot switch model with desk : 8005801100mm Pneumatic model : 400370220mm

Spot Welding Machinie
Type	Product Name	Features	Picture	Link
Manual	Pneumatic Spot Welding Machine	Welding Thickness:0.03 -0.25mm Air Pressure Range:0.1 - 0.7 Mpa		https://www.lithmachine.com/desk-top-capacitive-discharge-spot-welder-for-battery-tab-and-cylindrical-battery-welding_p366.html
	AC Plus Pneumatic Spot Welding Machine	Welding Thickness:0.03~0.2mm		https://www.lithmachine.com/ac-plus-pneumatic-spot-welding-machine-welder-for-cylindrical-battery-welding_p362.html
	5000A/8000A Pneumatic Inverter DC Spot Welding Machine	Maximum thickness of parallel welding:0.03mm~0.5mm Maximum Output Short Circuit Current:5000A or 8000A		https://www.lithmachine.com/inverter-resistance-welder-18650-power-battery-spot-welder-battery-spot-welding-machine_p442.html
	DC Output Spot Welding Machine	Maximum thickness of parallel welding:0.03mm~0.5mm		https://www.lithmachine.com/High-Precision-DC-Output-Spot-Welding-Machine-Tab-Welder_p364.html
Automatic	Automatc Single Side Spot WeldingMachine(Pneumatic/Electric)	Welding travel:400x500mm Welding Speed:0.35s/point; 2800pcs / hour		https://www.lithmachine.com/automatic-single-side-battery-spot-welding-machine-welder-for-18650-cylindrical-battery-pack_p363.html
	Automatic Single Side Rotary Welding Head Spot Welding Machine(Pneumatic/Electric)	The rotatable welding head can prevent the sticking of the needle. In addition, if it is a nickel strip with different fork directions, the rotating welding head is needed. Welding travel:400x500mm Welding Speed:0.35s/point; 2800pcs / hour		https://www.lithmachine.com/inverter-dc-single-side-automatic-spot-welding-machine-for-cylindrical-battery-pack-assembly_p402.html
	Automatic Double Sides Spot Welding Machine (Pneumatic/Electric)	Welding travel:400x500mm Spot welding speed: 0.3s/point; 5000pcs/h		https://www.lithmachine.com/Automatic-18650-26650-32650-Cylindrical-Battery-Pack-Double-Sides-Spot-Welding-Machine-for-Battery-Assembly_p369.html
