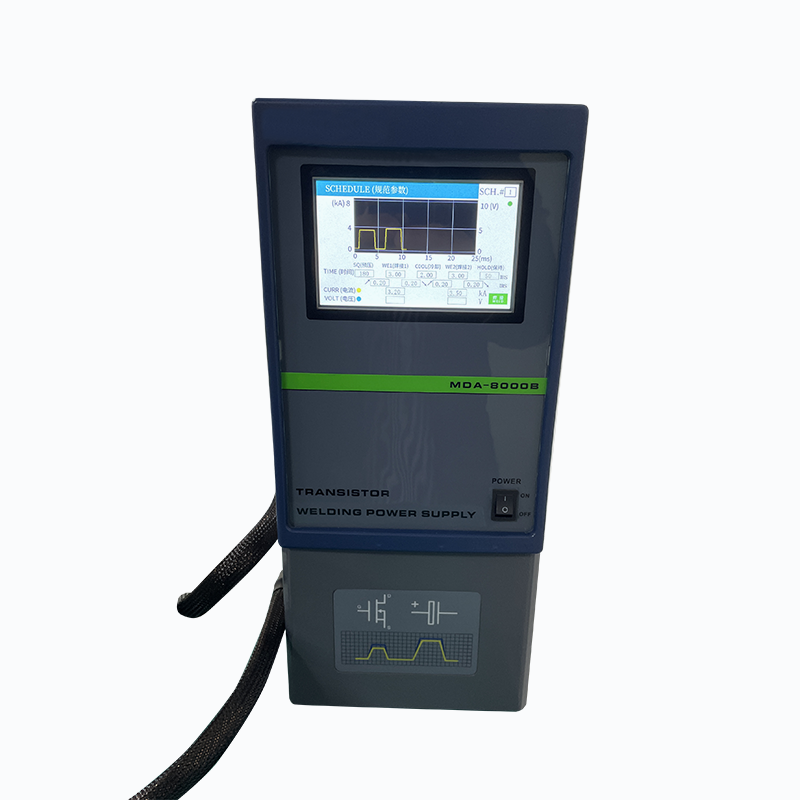

Louis@lithmachine.com8000A Transistor Welding Power Supply Manual Lithium Battery Spot Welder
Introduction:
Transistor welding power supply is a high-precision, high-speed and high current transistor welding power supply that performs high-speed switching through the power switch tube and performs closed-loop feedback control on the voltage and current between welding electrodes collected in real time.
Main Function:
Cylindrical battery, Prismatic battery, Polymer battery Pneumatic spot welding with nickel sheet.
Performance characteristics:
Welding power supply refers to the power supply for CO2 gas shielded welding, which adopts flat characteristics or slow drop external characteristics, and the no-load voltage is 38 ~ 70V. Strong arc self-regulation, large short-circuit current, easy arc striking and non stick wire. During operation, the arc will feel calm, soft, elastic and small splash. Welding, also known as fusion welding and fusion welding, is a manufacturing process and technology for joining metals or other thermoplastic materials such as plastics by heating, high temperature or high pressure. Welding achieves the purpose of joint through the following three ways:
1. Fusion welding - heat the workpiece to be joined to make it locally melt to form a molten pool. After the molten pool is cooled and solidified, it can be joined. If necessary, it can be supplemented by filler. It is suitable for the welding processing of various metals and alloys without pressure.
2. Pressure welding - the welding process must exert pressure on the weldment, which belongs to the processing of various metal materials and some metal materials.
3. Brazing - use the metal material with lower melting point than the base metal as the solder, use the liquid solder to wet the base metal, fill the joint gap, and diffuse with the base metal to realize the link weldment. It is suitable for welding of various materials, as well as different metals or dissimilar materials.
Specification:
|
supply voltage |
Single phase :AC100V-120V or AC200V-240V 50/60Hz |
|
Spot welding power |
MDA-8000B Transistor spot welding power |
|
Welding output power |
Max 8000A |
|
Nickel strip thickness |
0.06-0.2mm nickel plated or pure nickel strip 0.21-0.4mm nickel strip requires bump welding |
|
Working way |
Pneumatic welding |
|
Welding platform |
L600mm*W300mm |
|
Parameter setting |
Touch way |
|
Power at 0.1% duty cycle |
SQ1=9KVA |
|
Power at 50% duty cycle |
S50=0.36KVA |
|
Communication interface |
RS485, RS232 |
|
Canonical storage quantity |
16 group |
|
Cooling mode |
Forced air cooling |
|
Relative temperature |
-10-55C |
|
Machine Size |
L900*W900*H1350mm |
|
Welding power supply weight |
About 50kg |
Scope Range:
Spot Welding Machinie
Type
Product Name
Features
Link
Manual
Pneumatic Spot Welding Machine
Welding Thickness:0.03 -0.25mm
Air Pressure Range:0.1 - 0.7 Mpa
AC Plus Pneumatic Spot Welding Machine
Welding Thickness:0.03~0.2mm
5000A/8000A Pneumatic Inverter DC Spot Welding Machine
Maximum thickness of parallel welding:0.03mm~0.5mm
Maximum Output Short Circuit Current:5000A or 8000A
DC Output Spot Welding Machine
Maximum thickness of parallel
welding:0.03mm~0.5mm
https://www.lithmachine.com/High-Precision-DC-Output-Spot-Welding-Machine-Tab-Welder_p364.html
Automatic
Automatc Single Side Spot WeldingMachine(Pneumatic/Electric)
Welding travel:400x500mm
Welding Speed:0.35s/point; 2800pcs / hour
Automatic Single Side Rotary Welding Head Spot Welding Machine(Pneumatic/Electric)
The rotatable welding head can prevent the sticking of the needle. In addition, if it is a nickel strip with different fork directions, the rotating welding head is needed. Welding travel:400x500mm Welding Speed:0.35s/point; 2800pcs / hour
Automatic Double Sides Spot Welding Machine (Pneumatic/Electric)
Welding travel:400x500mm Spot welding speed: 0.3s/point; 5000pcs/h
https://www.lithmachine.com/Automatic-18650-26650-32650-Cylindrical-Battery-Pack-Double-Sides-Spot-Welding-Machine-for-Battery-Assembly_p369.html
Related Machine
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
Automatic Single Side Inverter DC Spot Welding Machine For 18650 Cylindrical Battery
Automatic Double Side CNC Spot Welding Machine Welder Equipment for Battery Pack
Automatic Double Sides Spot Welding Machine for 18650/26650/32650 Cylindrical Battery Pack
Automatic Single-Side Rotary Head Numerical Control Spot Welding Machine Welder For 18650/21700 Battery Pack Assembly
AC Pulse Pneumatic Spot Welding Machine Welder for Cylindrical Battery Welding
Automatic Double Side Battery Tab Spot Welding Machine
Precise Pneumatic Single Point 18650 Battery Spot Welding Machine with Foot Pedal for Li-on Battery Research
High Precision Manual DC Output Spot Welding Machine/Welder
