Lithium Battery Three Layer Vacuum Drying Oven

Lithium Battery Three Layer Vacuum Drying Oven

  • Product Details

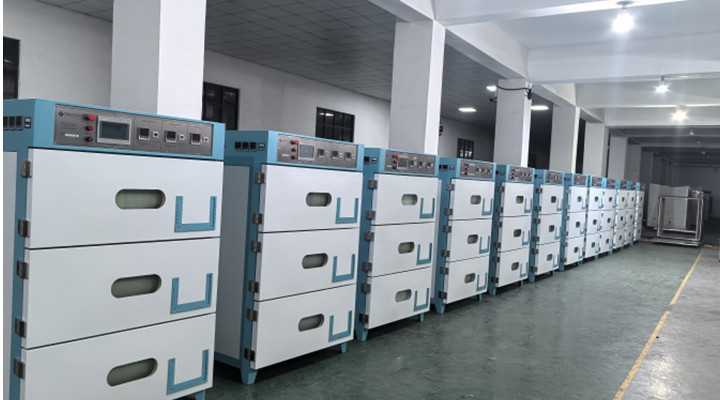

Lithium Battery Three Layer Vacuum Drying Oven


The TMAX-SBVO-03 vacuum oven is specially designed for lithium battery industry production process of vacuum drying equipment, the temperature, vacuum degree, the size of the studio and the barrier height is maximally meet the needs of the lithium battery industry.

This vacuum oven is manual vacuum and air control, it is mainly used for Lithium battery materials and electrode sheet vacuum baking.


Model

Manual Vacuum Oven For Lithium Battery TMAX-SBVO-03

Source voltage

AC380V, Three phase 4 wires, 50HZ

Power

4.5kw*3, three layers

Warranty

One year limited warranty with lifetime support

Max current

20A

Working chamber dimension

(H*W*D)

300*800*600mm*3layers

Insulation layer thickness

90mm Aluminum silicate fibers

Working temperature

Nichrome wire heated mode, RT+15~200, With accuracy ±1

Temperature control mode

PID adjustment, Intelligent digital display temperature controller

Vacuum degree

≤100pa

Inner box materials

3mm SUS304 Stainless steel

Outside shell materials

1.5mm thickness cold-roll steel sheets

Structure

1 Three working chamber with one vacuum hole, controlled by hand separately

2 Open door mode : Three single door, with square observe window

3 With Air switch, over current protection, Over temperature protection.









1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


High Temperature Vacuum Oven


1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
