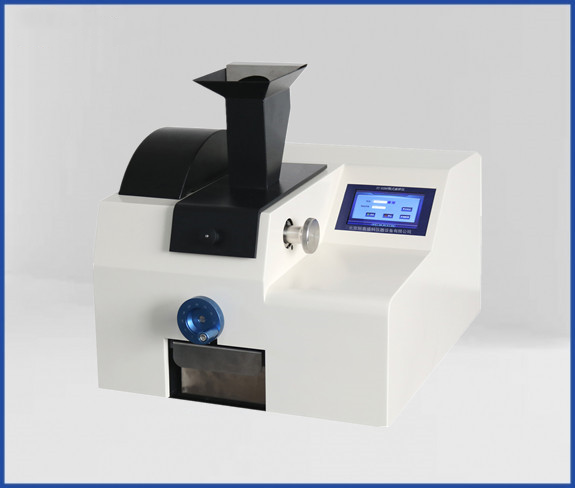

JT-E200 Small Jaw Crusher is a professional instrument for laboratory solid sample preparation. It has the characteristics of low noise, fast crushing speed, and fast sample size adjustment device. Rapid coarse crushing and pre-grinding treatment of brittle, hard, medium-hard, hard-ductile materials, such as ore, core, rock, slag, soil, ceramics, brittle material products, dried shells, dried sea cucumbers and other samples. The machine can adjust the crushing gap of the jaw plate through zero point correction to achieve the Z-optimized crushing effect.
Application
Geological minerals: rock, granite, basalt, silicate, etc.
Glass industry: glass, raw materials, etc.
Ceramic industry: sintered ceramics, electric ceramics, clay, etc.
Construction industry: slag, stone, cement, etc.
Environmental industry: soil, solid waste, etc.
Marine life: dried shells, dried sea cucumbers, etc.
Working principle
The prepared sample enters between the two jaws, and the jaws crush the sample. Under the action of gravity, the crushed sample falls into the collection box along the wedge-shaped cavity. The sample size depends on the adjusted two jaws. The gap between the plates, the adjustable jaw plate gap ensures the best crushing effect of the sample.
Technical Features
Zero point correction to compensate for wear and ensure the accuracy of sample fineness
A variety of crushing jaws of different materials can be selected
Desktop design, saving experimental space
The instrument has an anti-splash design to ensure the safety of operators
The feeding hopper can be turned upside down, and the crushing cavity is easy to clean
Jaw plate can be reversible
Technical parameter
Feeding particle size: ≤45mm
Zero-Calibration: Yes
Discharge particle size: ≤0.5mm
Speed: adjustable from 100-1000rpm
Funnel: can be turned over
Sample size adjustment range: 0-12mm (adjustable)
Motor power: 1.1kw
Power: 220V 50Hz
Grinding kit material: high manganese steel, stainless steel, zirconia, tungsten carbide, industrial plastics
Net weight: 70kg
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantit
