Ultrafine Grinding Vertical Planetary Ball Mill Grinder

Ultrafine Grinding Vertical Planetary Ball Mill Grinder

  • ItemNo :

    LITH-CS-03
  • MOQ :

    1
  • Warranty:

    One years limited warranty with lifetime technical
  • Delivery Time:

    5 days
  • Email :

    Louis@lithmachine.com
  • Product Details

Ultrafine Grinding Vertical Planetary Ball Mill Grinde

SPECIFICATIONS

Max. feed size (depends on material):

10mm

Final fineness (depends on material):

<100nm

Min. sample quantity:

10ml

Max. sample quantity:

180ml

Rotational speed (disk):

50-450r/min

Rotational speed (jars):

100-900r/min

Transmission ratio (disk / jars):

1:-2

Transmission standard:

CE

Grinding modes:

16 modes programmable

Grinding tools:

grinding jars and grinding balls

Bi-direction grinding:

yes

Continuously grinding

00:01:00 - 99:59:59

Paused interval:

00:01:00 - 99:59:59

Emergency stop:

yes

Power off memory:

yes

Overload protection

Yes

Milling chamber lighting:

automatic LED lighting, 220V, 18W

Number of milling samples:

4 simultaneously

Materials of the grinding jars:

SS304, SS316, nylon, PTFE, agate, zirconia, alumina, PU, WC

Number of working stations:

4

Ball mill type:

vertical

Compatible grinding jars:

25ml / 50ml / 100ml

Materials of milling balls:

SS, agate, zirconia, alumina, nylon, PTFE

Grinding ball diameter:

3/5/10/15/20mm

Compatibal ball weight

40-200g

Grinding process:

dry /wet grinding

Vacuum grinding:

yes

Low temperature grinding:

yes

Grinding in inert gas:

yes

Temperature detection:

yes ( special accessories)

Pressure detection:

yes ( special accessories)

Electrical details:

100-120V/200-240V AC ,50-60Hz, 250W

Plug types:

GB/EU/US/UK standard

Net weight:

35kg

Dimensions (W x D x H):

500*300*350mm

Noise level:

50dB

IP rank:

IP60

Product standard:

CE

Patent:

design patent/ noise improve patent

Accessories:

user manual, warranty card

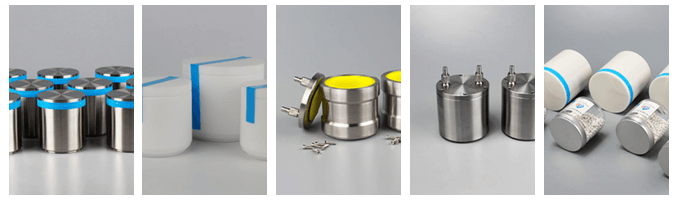

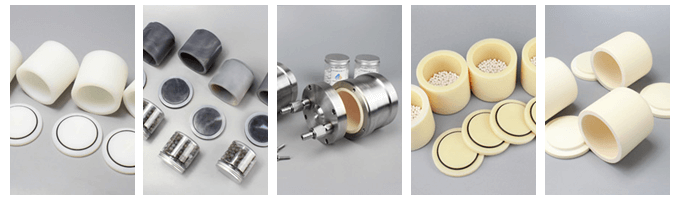

Material Data for Grinding Jars/Balls

Material

Main component

Density (g/cm3)

Abrasion resistance

Use for material to be ground

Agate

SiO2

2.65

Good

Soft to medium-hard samples

Sintered corundum

Al2O3

3.8

Fairly good

Medium-hard, fibrous samples

Silicon nitride

Si3N4

3.25

Excellent

Abrasive samples, iron-free milling

Zirconium oxide

ZrO2

5.7

Very good

Fibrous, abrasive samples

Stainless steel

Fe –Cr –Ni

7.8

Fairly good

Medium-hard, brittle samples

Tempered steel

Fe –Cr

7.65

Good

Hard, brittle samples

Tungsten carbide

WC

14.95

Very good

Hard, abrasive samples

Polypropylene disposable jar

MC/PA/PTFE/PU/HDPE/PP

**

Good

For homogenisation



Planetary Ball Mill

Planetary Ball Mill







PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
