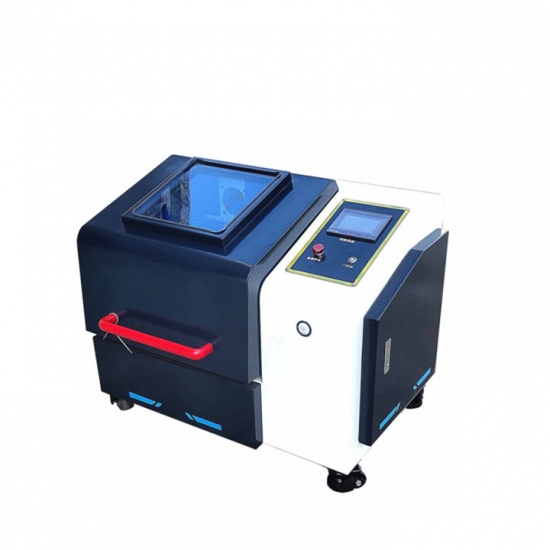

Laboratory Mini High-end Vertical Planetary Ball Mill

ItemNo :
LITH-PBM
MOQ :
1
Warranty:
Two years limited warranty with lifetime technical
Delivery Time:
5 days
Email :
Louis@lithmachine.com

Contact Now

Product Details

Laboratory Mini High-end Vertical Planetary Ball Mill

A.Characteristic

Equipment through professional appearance modelling design, the shell is made of high precision mold stamping forming, high precision laser cutting, CNC bending forming, generous and delicate, high-end sedate, planetary disc is made of casting forming, numerical control processing technology on structure component processing, transmission gear combination of high-temperature resistant non-metal and metal precision gear, nitriding metal heat treatment process, Can ensure abrasion resistance to prevent the broken shaft axis of rotation, to ensure smooth and quiet equipment running at a high speed, can watch the device monitor grinding jar can be self-locked locking synchronization at the same time, the operation is convenient, safe and reliable, shell in terms of product color, to bring new energy products, activate the product new life, in line with the international and domestic aesthetic demand, in line with the ergonomics.

B.Parameter

Mode of transmission	Gear transmission
Mode of working	Two and four ball grinding jars work simultaneously
Mode of transmission	Two thirds of the volume of the ball mill jar
Ball mill tank volume	0.05-1L per jar, total volume 0.2-4L
Feed granularity	Soilmaterial≤10mm,andother materials≤3mm
Granularity of discharge	Up to 1 micron
Mode of speed regulation	Infinitely adjustable-speed

Model	Volume(L)	Configurable ballmill specifications	Qty	Configurable vacuum ball jar volume	Locking device
PBM-1	1	50-250ml	4	50-100ml	automatic
PBM-2	2	50-500ml	4	50-250ml	automatic
PBM-4	4	250-1000L	4	50-500ml	automatic
PBM-6	6	1-1.5L	4	50-1000ml	automatic
PBM-8	8	1-2L	4	50-1500ml	automatic
PBM-10	10	1-2.5L	4	50-2000ml	automatic
PBM-12	12	1-3L	4	1-2L	automatic

Model	Powersupply (single-phase)	Power(kw)	Total time to run the set(min)	Alternating positive and negative running time(min)	Adjustable speed Revolution(rpm) Rotation(rpm)
PBM-1	Singlephase 220V-50HZ	0.75	1-9999	1-999	35-370	70-740
PBM-2	Singlephase 220V-50HZ	0.75	1-9999	1-999	35-370	70-740
PBM-4	Singlephase 220V-50HZ	0.75	1-9999	1-999	35-370	70-740
PBM-6	Singlephase 220V-50HZ	0.75	1-9999	1-999	35-370	70-740
PBM-8	Singlephase 220V-50HZ	1.5	1-9999	1-999	35-320	70-640
PBM-10	Singlephase 220V-50HZ	1.5	1-9999	1-999	35-320	70-640
PBM-12	Singlephase 220V-50HZ	1.5	1-9999	1-999	35-320	70-640

Model	Standard panel (optional intelligent, touch screen)	Lubrication way	Model of speed regulation speed	Weight(kg )	Size(Length width height)	Noise≤d b	Model
PBM-1	intelligent	grease	Frequency control	107	87055071 5	55±5	PBM-1
PBM-2	intelligent	grease	Frequency control	108	870550715	55±5	PBM-2
PBM-4	intelligent	grease	Frequency control	109	870550715	55±5	PBM-4
PBM-6	intelligent	grease	Frequency control	110	870550715	55±5	PBM-6
PBM-8	intelligent	grease	Frequency control	175	940620760	60±5	PBM-8
PBM-10	intelligent	grease	Frequency control	178	940620760	60±5	PBM-10
PBM-12	intelligent	grease	Frequency control	180	940620760	60±5	PBM-12

C.Image

1.Modelling design

The equipment adopts high precision die stamping forming, generous and delicate, in line with ergonomics

2. Safety electromagnet adsorption door

When the device door closes, the electromagnet pulls in, and the machine stops, and the electromagnet is opened manually. The electromagnet is disconnected to prevent the device from opening the boot cover artificially during operation, and prevent the foreign body from flying out of the device chamber.

3. The bottom sealing plate

The sealing plate is installed at the bottom of the equipment, and the exhaust outlet is designed to prevent other materials and belt dust from leaking out and polluting the customer's materials.
