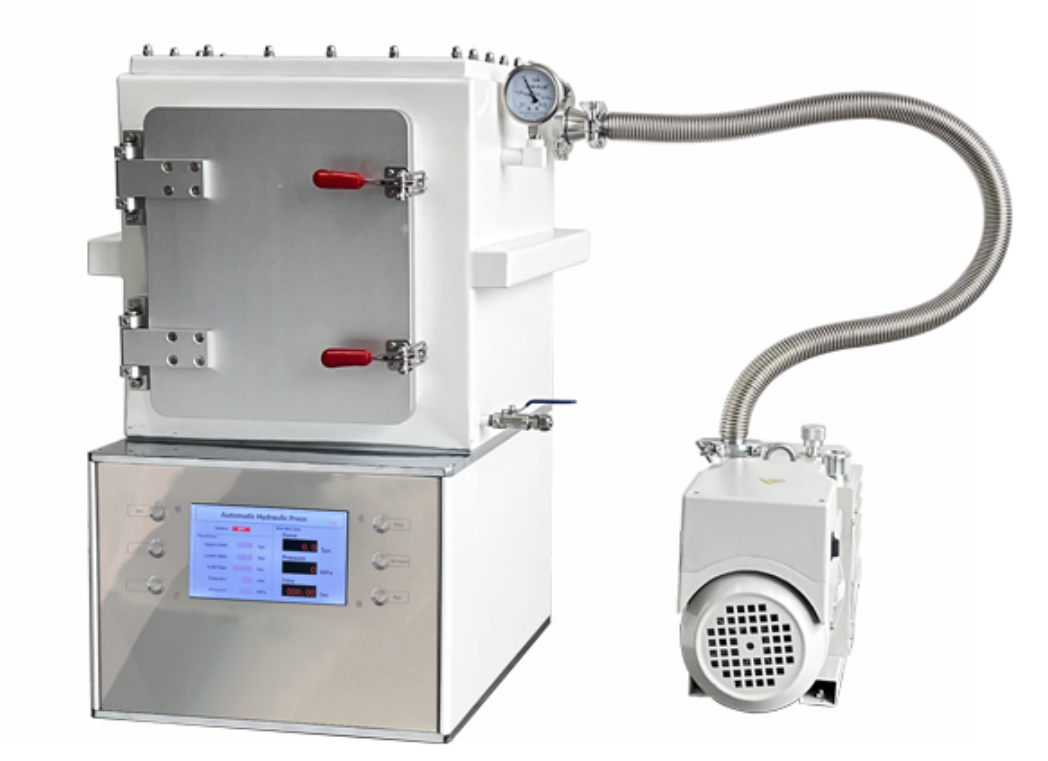

Lab 500C Hydraulic Lamination Heat Press Hot Pellet Press

ItemNo :
LITH-PZ-ZK
MOQ :
1
Warranty:
2years
Delivery Time:
5 days
Email :
Louis@lithmachine.com

Contact Now

Product Details

Lab 500C Hydraulic Lamination Heat Press Hot Pellet Press

Setting interface

Set: In the operation interface, press the settings button to enter the settings interface, then press the settings button to move the settings content. After moving to the mold diameter, press the settings button again to return to the operation interface. Note: When the time is set to "0", it means that the time is set to infinity.

+: In the operation interface, press the "+" key to increase the setting number.

-: In the operation interface, press the "-" key to reduce the setting number.

Pre-Pressing: Press the pre-pressing button to close the upper and lower heating plates together.

Operation interface

Upper: Press the "Upper Plate" button on the operation interface, and the upper plate will start heating to the set temperature. After the automatic timing and constant temperature timer are completed, the heating will stop. Or press the "Upper Plate" button again to stop heating the upper plate. During the heating process, all setting buttons are invalid.

Lower: Press "Lower Plate" on the operation interface to stop heating after the timer ends. Or press the"Lower Plate" button again to stop heating the lower plate.

Stop: When the device is in operation, pressing the "Stop" button will stop the motor from running and open the pressure relief valve to release the pressure.

Run: Press the "pressurization" button, and the equipment will start. When the pressure reaches the set pressure, stop pressurization and time to maintain pressure. When it is below the lower limit of pressurization, it will automatically replenish pressure. After the timing is completed, it will automatically release pressure.
