ItemNo :
LITH-PC-600C/CGMOQ :
1Compliance:
Warranty:
2yearsDelivery Time:
5 daysEmail :
Louis@lithmachine.com
Technical Parameters
|
Instrument model |
PC-600C/CG(500℃) |
|
Pressure range |
0-5.0 tons |
|
Piston diameter |
Chrome plated cylinder φ50mm (d) |
|
Overall structure of main body |
Equipment without sealing connection to reduce oil leakage point |
|
Mold heating temperature |
Room temperature -300.0℃/500.0℃ |
|
Constant temperature time |
1sec~∞sec |
|
Temperature control precision |
0.1℃ |
|
Insulation method |
Imported heat insulation board |
|
Cooling method |
Water-cooled rapid cooling [water cooler optional] |
|
Mould size |
Double plate heating 120*120mm(M*N) |
|
Working space |
140*140*60mm |
|
Size of the whole machine |
250*230*390mm (L*W*H) |
|
Power supply |
700W(220V/110V can be customized) |
|
Main machine weight |
55Kg |
|

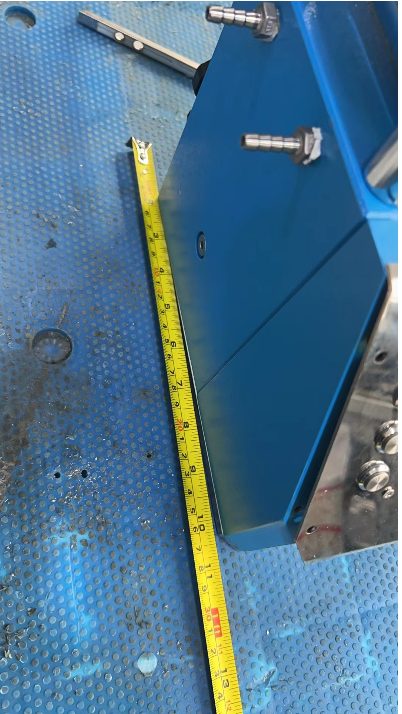

Dimensions of powder tablet press |
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
