Product description
|
Overview |

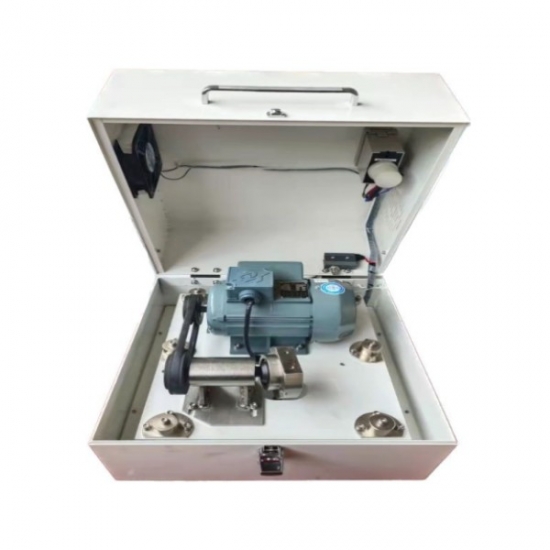

JT-80 high-speed vibrating ball mill is a high-efficiency small-scale instrument used for laboratory sample (small and trace) preparation. |
|
Working principle |
The instrument has rotational oscillation and vibration three-dimensional motion during grinding，and the collision energy is higher than other types of ball mills. |
|
Advantage |
The instrument is small in size, light in weight, high in efficiency and cheap in price. |
|
Scope of application |
High-speed vibrating ball mill can use dry and wet methods to ball mill or mix various solids, suspensions and pastes with different particle sizes and materials. It can be used for material grinding, mixing and mechanical alloying. |
Schematic diagram of high-speed vibrating ball mill:
1. Compression spring 2. Motor 3. Bearing seat 4. Ball mill jar 5. Pressure plate 6. Swing head 7. V-belt
Parameter
|
Model Specifications |
JT-80 |
|
Specification |
50ml,80ml |
|
Technical indicators |
Maximum filling volume per tank: one third of the volume of the ball mill tank |
|
Feed particle size |
<1mm |
|
Discharge particle size |
Minimum to 0.1um |
|
Swing frequency |
1200 weeks/min |
|
Timing range |
0~9999 seconds and normally open |
|
Motor Specifications |
Single phase 220v 180W |
|
Motor frequency |
50Hz |
|
Dimensions |
405×365×260 (mm) |
|
Features |
The high-speed vibrating ball mill has an eccentric pendulum shaft. When the motor runs at a high speed, the tank body swings eccentrically; it drives the entire bracket to vibrate up and down, so that the grinding process is completed in a three-dimensional space of high-speed swing and vibration. Greatly improve the speed and efficiency of grinding. |
The standard configuration
|
Ball mill jar material type |
Picture |
|
80ml stainless steel（1Cr18NiTi） |
|
|
50ml agate jar |
|
|
50ml ceramic jar |
|
|
50ml nylon jar |
|
Optional model
|
50ml teflon tank |
|
|
50ml zirconia tank |
|
|
80ml stainless steel vacuum tank |
|
|
Stainless steel ordinary jacket |
|
|
Vacuum stainless steel jacket |
|
|
Standard number of grinding balls per jar |
Φ10 20 pcs, Φ20 4 pcs |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
